Sperm and egg proteins constitute a remarkable paradigm in evolutionary biology: despite their fundamental role in mediating fertilization (suggesting stasis), some of these molecules are among the most rapidly evolving ones known, and their divergence can lead to reproductive isolation. Because of strong selection to maintain function among interbreeding individuals, interacting fertilization proteins should also exhibit a strong signal of correlated divergence among closely related species. We use evidence of such molecular co-evolution to target biochemical studies of fertilization in North Pacific abalone (Haliotis spp.), a model system of reproductive protein evolution. We test the evolutionary rates (dN/dS) of abalone sperm lysin and two duplicated egg coat proteins (VERL and VEZP14), and find a signal of co-evolution specific to ZP-N, a putative sperm binding motif previously identified by homology modeling. Positively selected residues in VERL and VEZP14 occur on the same face of the structural model, suggesting a common mode of interaction with sperm lysin. We test this computational prediction biochemically, confirming that the ZP-N motif is sufficient to bind lysin and that the affinities of VERL and VEZP14 are comparable. However, we also find that on phylogenetic lineages where lysin and VERL evolve rapidly, VEZP14 evolves slowly, and vice versa. We describe a model of sexual conflict that can recreate this pattern of anti-correlated evolution by assuming that VEZP14 acts as a VERL mimic, reducing the intensity of sexual conflict and slowing the co-evolution of lysin and VERL.
Reproductive genes are often identified in genome-wide scans as targets of positive selection, and some are among the most rapidly evolving proteins known –. Their rapid adaptive evolution is observed in a broad range of organisms , , which is remarkable given the central importance of reproductive compatibility to organismal fitness. Moreover, experiments show that even a few amino-acid substitutions among cognate fertilization proteins can cause reproductive isolation , and so rapid divergence takes place in the context of strong selection to maintain functional interaction. Because cognate sperm and egg proteins must co-evolve to maintain compatibility, their divergence should result in correlated evolutionary rates – on lineages where females evolve rapidly, males should also evolve rapidly. This expectation of correlated evolution between males and females underlies a two-pronged approach to investigating molecular interactions at fertilization: we can use evolutionary signals of co-evolution to focus genetic and biochemical assays on molecules that are particularly likely to functionally interact.
Correlation in the ratio of non-synonymous to synonymous nucleotide substitution (dN/dS, or ω) has been shown to reflect known protein-protein interactions  including those between reproductive proteins of the free-spawning marine gastropod abalone (Haliotis spp. ). Abalone are a prominent model system for the study of reproductive proteins, and one of the few cases in which cognate sperm and egg fertilization proteins have been identified –. Abalone eggs are surrounded by a raised Vitelline Envelope (VE) comprised of tightly compacted fibers  that present a species-specific barrier to sperm entry . Abalone sperm de-condense the VE fibers to create a hole in the VE via a non-enzymatic mechanism that involves binding between positively charged ∼16 kiloDalton (kDa) sperm lysin  and a large (>1000 kDa) VE glycoprotein (the Vitelline Envelope Receptor for Lysin, VERL) . VERL contains an array of ∼22 negatively charged ∼150 amino acid tandem repeats, each of which is believed to contain a lysin binding domain , . Stoichiometry
of VE dissolution indicates that two lysin molecules bind each repeat , in support of a model whereby lysin dimers out compete hydrophobic interactions among intermolecular VERL repeats and unravel VE fibers in a zipper-like fashion through surface structure and electrostatic interactions .
Both lysin and VERL show recurrent adaptive divergence among the 8 abalone species that diverged <18 million years ago in the North Pacific . Positive selection on lysin residues corresponds to domains known to mediate species-specific VE dissolution , and was previously shown to be restricted to the two N-terminal repeats of VERL  consistent with observations that initiation of VE dissolution is the rate-limiting step which serves to reproductively isolate abalone species . Consistent with both biochemical and evolutionary analyses implicating co-evolution between lysin and VERL, adaptive divergence of lysin and the N-terminal VERL repeats (as measured by dN/dS) has been shown to be positively correlated across branches of the abalone phylogeny .
Many of the constituent proteins of the abalone VE have been characterized and are known to also evolve under positive selection , , including a paralog of VERL called Vitelline Envelope Zona Pellucida 14 (VEZP14) . VEZP14 is one of >30 abalone VE proteins that contain a polymerization module (the ZP domain)  common among both invertebrate and vertebrate egg coats. Uniquely, it also has a single N-terminal domain with homology to the VERL repeats and which has also been the target of positive selection . Structural models  demonstrate that this N-terminal domain of VEZP14 and the VERL repeats all contain a motif corresponding to a novel β-sandwich fold of the immunoglobulin (Ig) superfamily of proteins named for the N-terminal portion of the ZP domain from which the structure was resolved (ZP-N) . Remarkably, this fold is a feature of mouse egg coat sperm receptors ZP2 and ZP3  as well as yeast mating proteins α-Agglutinin/Sag1p , , demonstrating its likely importance in gamete recognition and sexual reproduction across multi-cellular organisms.
Here, we use molecular co-evolutionary analyses in combination with biochemical assays to investigate the molecular interactions between abalone sperm and egg coat proteins during fertilization. A strong signal of co-evolution specifically between lysin and ZP-N motifs focus our biochemical assays that demonstrate the ZP-N motif is sufficient for binding of lysin. Our co-evolutionary analyses also reveal a surprising pattern (correlated evolution between lysin and VERL, but anti-correlated evolution with VEZP14) that suggests unexpected modes of interaction among these fertilization proteins not evident from binding assays. We develop a population model to explore one such interaction whereby VEZP14 functions as a VERL mimic, binding excess lysin and reducing the intensity of sexual conflict by reducing fertilization rate.
Two distinct but complementary approaches identify ZP-N from duplicated abalone VE proteins, VERL and VEZP14, as sperm lysin receptor motifs. First, evolutionary rates as measured by the ratio of non-synonymous to synonymous nucleotide substitution (dN/dS) are correlated between lysin and ZP-N from both genes across the evolution of North Pacific abalone species – a pattern not seen even with other domains of these genes. Second, affinity assays utilizing surface plasmon resonance (SPR) quantification of association and dissociation rates between green abalone lysin and expressed ZP-N motifs shows binding kinetics are comparable for VERL and VEZP14. While our co-evolutionary analyses are shown to be a useful tool in focusing these more detailed biochemical studies confirming ZP-N is sufficient to bind lysin, they may also offer novel insight into how egg coat proteins mediate sperm passage of the VE during abalone fertilization. We first present results from our co-evolutionary and biochemical studies, after which we discuss implications for models of abalone fertilization.

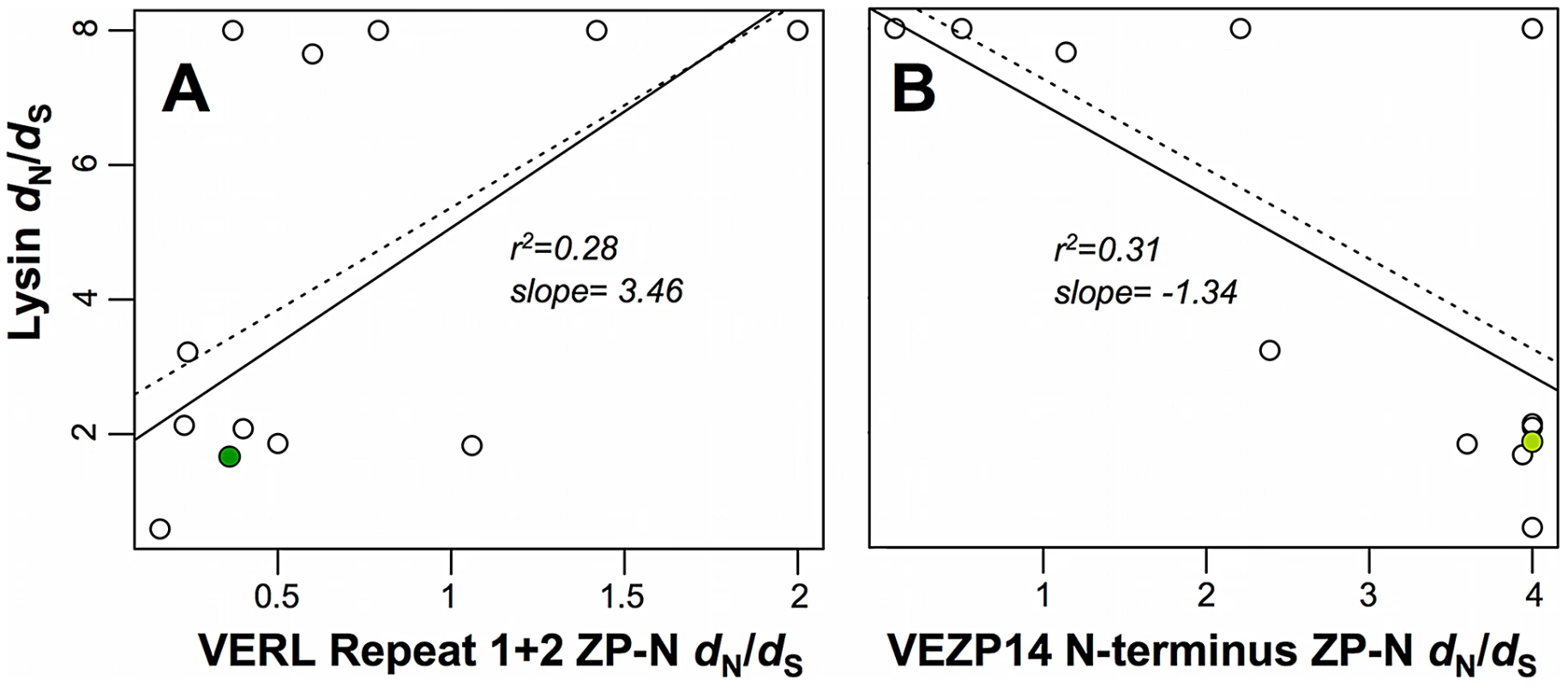

The evolutionary rates of abalone lysin and the ZP-N motifs of VERL and VEZP14 are correlated
Because cognate sperm and egg proteins must co-evolve to maintain reproductive compatibilities, their rapid divergence among species is predicted to result in correlated evolutionary rates along phylogenetic lineages. We expand upon an earlier study that demonstrated such a positive correlation between abalone lysin and the combined first three full (∼150 AA) repeats of VERL . Here we focus on discrete ZP-N sequences recently proposed  to constitute a sperm protein binding motif, specifically ZP-N from VERL repeats 1 and 2 (numbered consecutively from VERL's N-terminus) as well as VEZP14. As previously, we tested for correlations by fitting linear regression models to point estimates of branch-specific dN/dS ratios across the phylogeny of North Pacific abalone, a conservative but robust approach in the absence of genome-wide data necessary to implement more powerful models of correlated evolution , . While discrete ZP-N motifs of the first and second VERL repeats analyzed individually do not show a statistically significant positive correlation in dN/dS with lysin, consistent with a relatively weak signal of positive selection on each individually relative to ZP-N from VEZP14 (Table 1; and see below), analysis of the concatenated ZP-N motifs from VERL repeats 1 and 2 shows the predicted positive correlation as having modest statistical support based even on the more conservative weighted linear regression model (slope = 3.46, r2 = 0.28, p = 0.06 for; Figure 1A). Similarly, we find evidence of a correlation in dN/dS between the ZP-N motif of VEZP14 and lysin – notably in contrast with lysin-VERL, a weighted linear regression identifies the lysin-VEZP14 correlation as negative (slope = −1.34, r2 = 0.31, p = 0.05). We discuss possible explanations for a positive -vs- negative correlation in dN/dS with lysin in detail below in the context of models of abalone fertilization. To summarize: (i) positive selection is a feature of VERL repeats 1 and 2 as well as the ZP-N motif of VEZP14; (ii) the rate of evolution driven by positive selection is somewhat higher for the VEZP14 ZP-N motif; and (iii) whereas the rate of evolution along phylogenetic lineages is correlated between lysin and VERL (slow with slow, or fast with fast), lysin and VEZP14's evolutionary rates are anti-correlated (slow with fast).
The correlated rates of evolution we find between lysin and the ZP-N motifs of VERL and VEZP14 are unique among the comparisons we analyzed. As seen previously for lysin and VERL , in our current work two control genes with no known function in reproduction also show no evidence of correlation in dN/dS with the VEZP14 ZP-N motif (Figure S1A, S1B). In the absence of genome-wide data this provides only limited support for the significant correlations we identify. However, similar to previous studies of lysin and VERL  we also find the C-terminal ZP polymerization domain of VEZP14 exhibits a pattern of divergence comparable to control genes, with no evidence of a correlation in dN/dS with either lysin or the N-terminal ZP-N motif itself (Figure S1C, S1D). This strongly supports the hypothesis of co-evolution specifically between ZP-N and lysin, implicating the motif as a discrete lysin binding sequence within VEZP14 as well as VERL repeats.
Affinity of lysin for VERL and VEZP14 ZP-N motifs is comparable
The correlation in evolutionary rates specifically between lysin and ZP-N prompted us to explore the possibility of physical interactions using in vitro binding assays. We expressed discrete ZP-N motifs cloned from green abalone VERL and VEZP14 in a eukaryotic expression system to minimize the possibility of misfolding, followed by quantification of binding kinetics via SPR under realistic biological conditions reflective of the abalone fertilization environment (flowing seawater). While we were unsuccessful at obtaining protein from VERL repeats 2 and 3, ZP-N expression proteins of high purity from VERL repeat 1 and VEZP14 were obtained (Figure S2A, S2B) and validated based on multiple unique peptides via shotgun proteomic sequencing. Expression proteins showed evidence of differential addition of N-linked polysaccharides based on digestion with PNGaseF (Figure S2A, S2B) which may deviate from that seen among native VE components , but experimental evidence supports amino acid divergence as the primary determinant affecting specificity of lysin's dissolution of VEs .
SPR shows binding between green abalone lysin and expressed ZP-N proteins from VERL and VEZP4 are qualitatively similar. Though slightly more lysin was bound by VERL (as evidenced by a consistently higher absolute refractive index over replicate channels), the kinetics of binding between lysin and both ZP-N motifs over association and dissociation intervals are comparable, yielding equilibrium dissociation constants (KD) of 5.2×10−7 and 5.8×10−7 M for VERL and VEZP14, respectively (Figure 2A, 2B). A negative control of similar size and charge as lysin showed no evidence of binding to ZP-N motifs, validating the specificity of the interaction. Because binding kinetics are similar (lysin-VERL ka = 4.1×10−4 M−1 s−1, kd = 2.1×10−3 s−1; lysin-VEZP14 ka = 3.7×10−4 M−1 s−1, kd = 2.1×10−3 s−1) the small quantitative differences in the absolute amount of lysin bound (Figure 2A) likely reflects differential functionality of expressed ZP-N due, e.g., to higher rates of misfolding among transformed cell lines. In sum, our binding assays show that (i) ZP-N motifs from VERL or VEZP14 alone are sufficient to bind abalone lysin, and (ii) the kinetics of binding between lysin and ZP-N from these VE proteins are similar, yielding affinities that differ quantitatively very little (∼10%) based on in vitro binding assays.

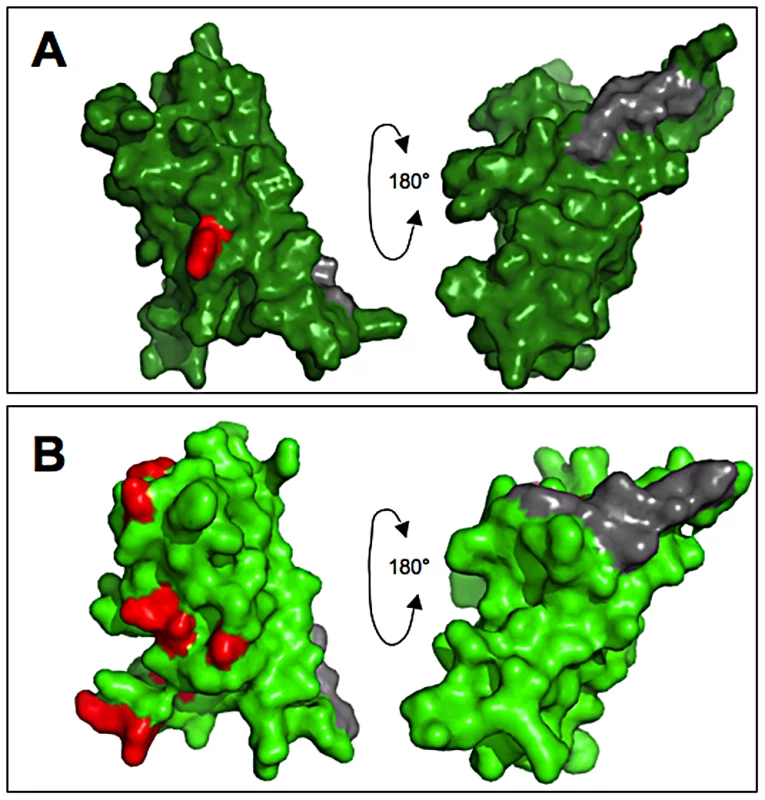

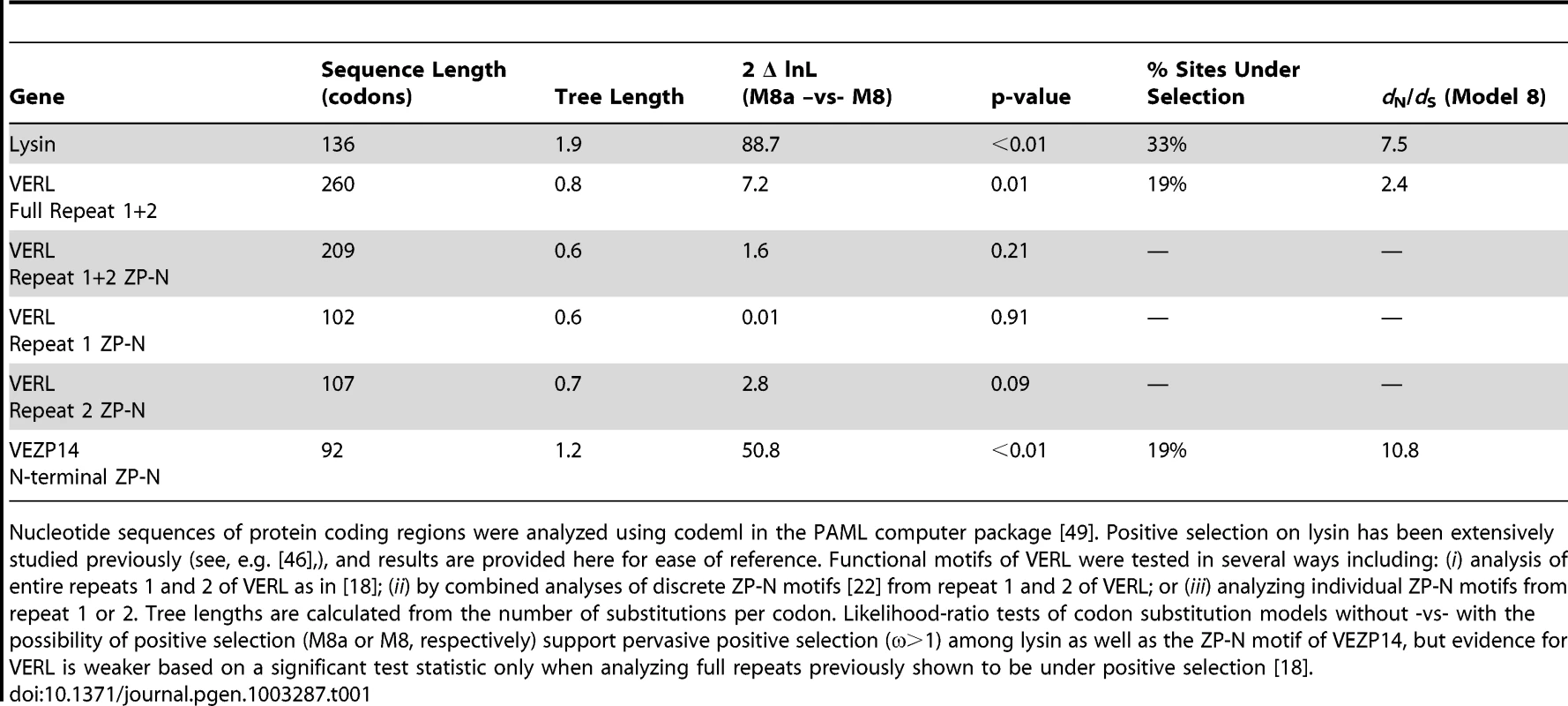

Sites under positive selection are similar between VERL and VEZP14
The residues targeted by positive selection appear to be much the same between ZP-N motifs of VERL and VEZP14. While positive selection on VERL is somewhat weaker relative to VEZP14, as evidenced by a significant test statistic only when analyzing full repeats 1 and 2 and lower dN/dS (ω) for sites predicted to be under positive selection (Table 1), codon substitution models identify the same proportion of positively selected sites (19%). Moreover, positively selected residues predicted with high posterior probabilities occupy the exposed face of structural models for VERL and VEZP14 ZP-N (Figure 3), corresponding to the face opposite an E′ extension likely to mediate antiparallel pairing among ZP-N motifs . Thus both the proportion and proximity of positively selected residues is consistent with SPR assays showing lysin binds both ZP-N's with high affinity.
Does in vitro affinity between lysin and ZP-N reflect in vivo binding kinetics?
To a first approximation, the binding affinity we report between lysin and the expressed ZP-N motif of VEZP14 is likely to also be reflective of in vivo binding during abalone fertilization. VEZP14 contains a single N-terminal ZP-N motif isolated from the ZP polymerization domain by ∼20 tandem repeats of a hypothetically unstructured 7-residue Thr/Pro-rich region not found in VERL . Yeast adhesion proteins are often similarly arranged, recognition domains extended above the cell surface by these unstructured “stalks” which in yeast facilitate unobstructed binding with ligand [see ,  for reviews]. If VEZP14 is arrayed at the abalone VE surface similar to such yeast adhesion proteins, and absent inclusion in a complex of VE proteins mediated by intermolecular ZP-N pairing (see below), the kinetics of binding between lysin and the ZP-N motif of VEZP14 is likely to be fairly well represented by our SPR assay.
In contrast, in vivo kinetics of binding between lysin and VERL may be considerably more complex due to several factors. First, VERL is thought to form highly condensed fibers within the VE via inter-molecular pairing of VERL repeats , suggesting binding kinetics could be strongly influenced by steric inhibition. Second, we were only able to examine affinity between lysin and ZP-N from the first repeat of VERL, which contains an array of ∼22 tandem repeats  each with a ZP-N motif . ZP-N from the second repeat is distinct in sequence (e.g., 39/56% amino acid sequence identity/similarity for green abalone), and ZP-N from internal homogenized repeats are further differentiated (88/94% identity/similarity with repeat 2). This is analogous to the yeast mating recognition protein α-Agglutinin, which contains three immunoglobulin (Ig) like domains, one of which (IgIII) was recently shown to have structural homology with ZP-N from VERL and VEZP14 . SPR identifies both high (KD∼10−9 M) and low (KD∼10−4 M) affinity between α-Agglutinin and its ligand Aga2p , likely due to interactions among different subunits . Relative to yeast Agglutinins, binding between lysin and egg coat ZP-N exhibits an intermediate affinity (KD∼10−7 M) that we predict could be greater for internal repeats based on VE dissolution kinetics. Binding assays using intact VERL isolated from VEs indicate positive cooperativity consistent with VE dissolution assays showing the rate limiting step is lysin's initial binding with VE proteins . For VERL, lysin is thought to bind to the N-terminal repeat first  (corresponding the ZP-N motif we assayed via SPR) – an increase in the rate of VE dissolution following this step suggests either higher rates of association (ka) or lower rates of dissociation (kd) between lysin and internal VERL repeats, leading to a net increase in affinity (KD).
Do VERL and VEZP14 have similar functions mediating lysin's dissolution of VEs?
The raised VE of abalone eggs presents a physical barrier mediating sperm access, commonly viewed as one component of the redundant polyspermy blocks which function to avoid developmental arrest of the embryo due to multiple sperm fusing with the egg nucleus , . Ultrastructural studies show sperm lysin creates a hole in the VE for sperm entry by decondensing compact fibers  which were previously shown to contain VERL complexes held together by hydrophobic and electrostatic interactions , . Because VEZP14 is (i) also a major component of the abalone VE , (ii) under strong positive selection consistent with lysin's species-specific VE dissolution , and (iii) can bind lysin at comparable affinity as VERL via the ZP-N receptor motif, VEZP14 is a strong candidate to also be a component of the VE's molecular mechanism mediating sperm entry. One possibility is that VEZP14 is an integral component of the compact VE fibers that decondense upon lysin binding. For example, VEZP14 dimers could form a “molecular zipper” through antiparallel pairing of ZP-N anchored to a scaffold of ∼30 other VE proteins via their ZP polymerization modules , much like the model for VERL fibers . Alternately, VEZP14 could pair with ZP-N motifs across VERL repeats to form more complex multimers. Such structural complexity would provide an additional dimension to lysin's role in VE dissolution beyond the relatively straightforward kinetics of ligand/receptor binding, reminiscent of the view that supramolecular structure as opposed to protein sequence per se mediates sperm recognition of mammalian egg coat proteins .
Contrasting patterns of molecular co-evolution with lysin
The contrasting patterns of molecular co-evolution between lysin and its duplicate egg coat receptors VERL and VEZP14 among North Pacific abalone presents a challenge to these and other models of abalone fertilization for which VERL and VEZP14 have functional redundancy. The positive correlation in dN/dS between lysin and VERL's ZP-N motifs from repeats 1 and 2 (Figure 1A) is consistent with expectations of cognate sperm and egg receptors when strong directional selection is driven by sexual conflicts that develop between males and females over different fertilization optima , , and has been demonstrated previously for lysin and VERL . In contrast, ZP-N from VEZP14 shows a corresponding decrease in dN/dS as lysin's divergence accelerates (Figure 1B), essentially the mirror opposite as for VERL despite evidence from green abalone of similar binding kinetics (Figure 2A, 2B). It's possible that this negative correlation indicates VEZP14's function is entirely distinct from VERL's. For example, VEZP14 could function in host avoidance of gamete pathogens , explaining its rapid divergence along lineages distinct from those where lysin evolves rapidly via the dynamics of a characteristic host-pathogen co-evolutionary chase . However, this seems unlikely given clear evidence that positive selection specifically targets residues occupying the same face of the ZP-N motif of VEZP14, and lysin binds ZP-N of VERL and VEZP14 with similar affinity. Alternately, the other abundant and rapidly evolving sperm acrosomal protein sp18  might preferentially bind with ZP-N of VEZP14. But previous binding studies suggest sp18's affinity for both VERL and VEZP14 are very weak , and sp18 has no evident effect on the VE, instead localizing to the egg plasma membrane surface .
Molecular mimicry predicts the co-evolution of abalone fertilization proteins
An intriguing model of VERL and VEZP14 function that could resolve their contrasting patterns of molecular co-evolution with lysin is derived by incorporating concepts of molecular mimicry with sexual conflict over fertilization optima. Mimicry is a central topic in evolutionary biology, and phenotypic mimics (of warning coloration or as camouflage) are seminal examples of natural selection –. Sexual mimicry, where females mimic the genitalia or secondary sexual traits of males in response to sexual antagonism, is well documented and thought to evolve in response to sexual antagonism , . To our knowledge, sexual mimicry has never been proposed to extend to the molecular level, but the general phenomenon of molecular mimics or decoys is well established in immunology . Molecular decoys function as mimics of ligand-targeted receptors, except that their downstream effector functions are entirely lost and they retain only the ability to bind ligand. Decoys thus provide a way to decrease the concentration or effectiveness of a ligand without suffering the pleiotropic effects of modifying the target receptor itself. Under this model VERL and VEZP14 might have similar interactions with lysin, but VEZP14 is not a structural component of the VE per se as binding with lysin affects VE integrity only indirectly by modifying the effective concentration of lysin available for binding with VERL. Importantly, paralogs such as VERL and VEZP14  may be particularly good candidates from which molecular decoys evolve, as this form of mimicry is essentially a special case of sub-functionalization following gene duplication .
We created a model of sexual conflict that can generate the correlations observed among abalone fertilization proteins by assuming that VEZP14 acts as a molecular decoy of VERL. We model the evolutionary dynamics of three diploid genes (male, female, and decoy) in response to sexual conflict over mating rate. In the model, the male (lysin) and female (VERL) proteins co-evolve with one another because of a conflict over optimal mating rate, as expected and previously observed in simulations and natural phylogenetic comparisons , . Successful males have high mating rates. Selection favors male alleles with values that are close to the average female allele, because in the model mating rate increases as the distance between male and female decreases (Figure 4A). Females prefer an intermediate mating rate (Figure 4B). This conflict causes co-evolution of the male and female loci. As males advance females retreat, evolving alleles that are farther from the average male value. During co-evolutionary chase, the average mating rate is generally between the male and female optima: males would prefer a higher mating rate, females lower (Figure 5A(i)).
We imagine that a decoy locus could modify this sexual conflict over mating rate as follows. The female and decoy loci are initially similar, either because the decoy arose as a duplicate of the existing female receptor (as seems to be the case for VEZP14 and VERL) , or because the female receptor and an existing non-reproductive receptor evolve to be similar (as may be the case for duplicates that are homogenized by concerted evolution). The decoy reduces mating rate toward the female's optima (in this case by binding excess lysin and reducing fertilization rate). It is probably not reasonable to expect that the decoy functions perfectly, and so we express this as interference between the female and decoy that reduces mating rate below Popt (Figure 4C, Figure 5A(ii)). This has two effects (Figure 5A (iii)): (i) it stops male-female co-evolution since both now benefit from an increased mating rate; (ii) it provides an impetus for the decoy to evolve traits that optimize the male-female interaction (to tailor mating rate to Popt). For example, the decoy could evolve a different affinity for the male ligand (or in another context, change its pattern of regulation or spatial location). As differences between the true female receptor and the decoy accumulate, males evolve the ability to preferentially target the true receptor, causing the decoy to become ineffective (Figure 5A(iv)). This increases a male's mating rate at the cost of each individual female's fecundity, and co-evolution resumes as per the general model of sexual conflict. As the co-evolutionary chase proceeds, male-female phenotype space may re-encounter the decoy leading to its indefinite maintenance via recurrent positive selection.

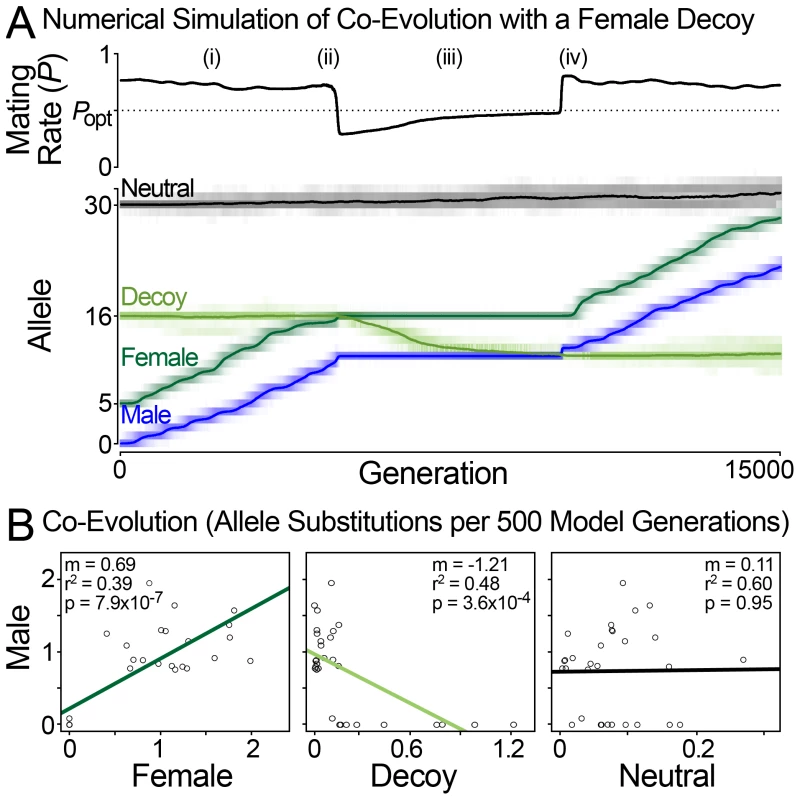

Numerical simulations under this model always generate positive correlations between the allelic substitution rate of male and female loci (Figure 5B). The neutral locus does not show evidence of correlated evolution with any other locus (0 of 20). Anti-correlation of male and decoy loci occurs in a majority of model runs (11 of 20, Fisher's exact test P = 0.0035; Figure 5B). Thus our model mirrors at a population level the patterns observed for lysin, VERL, and VEZP14 among species of North Pacific abalone (Figure 1A, 1B). Our population simulations also identify several key conditions necessary for VEZP14 to function as a decoy of VERL during fertilization. First, a key aspect of our model is that the decoy reduce mating rate toward the female's optimum (Figure 4C). The decoy can only be effective if it does not harm the female. The Pi parameter (which describes female-decoy interference) must take a value that causes female fitness to be greater than at the unmodified mating rate PMF (Pi<Pe, assuming Pe = PMF − Popt). Second, we aim to model a process that could continue indefinitely, rather than approaching equilibrium. Selection for the decoy to evolve exists because P approaches Popt as the decoy approaches the male (Figure 4C). To avoid all three loci collapsing to a single allelic value, we keep the male and female loci apart by assuming that there is an optimal male-female distance for decoy function (Dopt). The magnitude of female-decoy interference (Pt) increases as the male female distance DMF deviates from Dopt. Third, we model this process in one trait dimension; the decoy is either between the male and female, or not (θ = 1 or 0, respectively) (Figure 4C). When the male can discriminate the decoy and resume co-evolution with the female, the penalty for deviation from Dopt must be large (Pt∼Popt, when |DMF – Dopt| = 0.5), otherwise the decoy will begin a co-evolutionary chase with the male. Even at large Pt, the decoy does briefly chase the male in 9 of 20 simulations (those that do not show overall evidence of anti-correlated evolution). Interestingly, among North Pacific abalone lysin and VEZP14 do sometimes take high values on the same branch (Figure 1B) despite the predominance of anti-correlation. Thus discrete instances of male-decoy co-evolution may exist even when molecular decoys function as our model predicts.
We present an example of the value of evolutionary analyses in the interpretation of functional phenotypic data. On the simplest level, evolutionary analyses as straightforward as the tests of correlated dN/dS we employ serve to focus genetic or biochemical investigation on the discrete functional domains that mediate molecular interactions. However, because these methods reflect the long-term dynamics of distinct evolutionary lineages, they may also reveal unique modes of interaction not evident in traditional functional assays. We show that the ZP-N motifs of VERL and VEZP14 bind sperm lysin with similar affinity, so the naïve interpretation is that they may also function similarly as duplicate egg coat receptors of lysin. But evidence of anti-correlated co-evolution supports a more complex interpretation: VEZP14 may function as a VERL mimic to bind excess lysin, thereby modifying the dynamics of sexual conflict over fertilization rate. This novel hypothesis, that molecular mimicry functions in addition to other well-established polyspermy blocks, promises new insights and approaches to understanding the extraordinary molecular diversity of reproductive genes and their remarkable patterns of evolution.
Materials and Methods
Protein coding DNA sequences for sperm and egg genes from 8 North Pacific abalone species  used here for evolutionary analyses were previously published, or were newly obtained from ovary transcripts. Abalone lysin (accessions M34388-9, M59968-72, M98875), and VERL repeat 1 and 2 (AF453553, AF490760-6) alignments are from , . Publicly available VEZP14 sequences (GQ851905, GQ851925-7) were aligned by eye with sequences from 4 additional abalone taxa (H. wallalensis, H. sorenseni, H. cracherdii, and H. kamtschatkana) newly obtained from ovary transcripts of the respective taxa using an identical sequencing approach as in  (NCBI accession numbers JX290365-8). Alignment of all ZP-N motifs followed the structural homology model of ZP-N presented in , and there are no gaps in the alignment, thus there is a very low probability of comparing non-homologous codons or residues in our statistical analyses. Genes used as control loci in analyses of evolutionary rate correlations (Figure S1; cellulase: AB125892, FJ940284-90, FJ940292; haemocyanin: FJ940383-90) were described previously for this purpose .
To test for correlated rates of evolution between lysin and putative binding motifs of VERL and VEZP14, we fit linear regression models to point estimates of branch-specific dN/dS values. The general approach was developed previously from know cases of protein-protein interaction , , and serves as a conservative but robust means of testing for correlation in dN/dS in the absence of genome-wide data necessary for statistical validation of more powerful methods , . Point estimates of dN/dS for lysin and ZP-N motifs from VERL and VEZP14 were made using the branch model of  implemented in the PAML computer package  following the tree topology and all other conventions exactly as in . Signal peptides were excluded, and boundaries of ZP-N motifs followed ; for VERL, ZP-N motifs from the first two repeats that combined are the only regions with evidence of positive selection ,  were concatenated for the analysis (see Table 1), but were also tested individually. Linear regressions were fit to point estimates of dN/dS that were either unweighted, or which were weighted by the length of the respective branch as in , using the R statistical package , with correlated rates inferred as a significant slope parameter (p<0.05). Correlations were also estimated between lysin or ZP-N motifs and control loci, including the C-terminal ZP domain of VEZP14.
Mapping of positively selected residues onto structural models was used to identify potential regions of binding between lysin and ZP-N motifs of VERL or VEZP14. Sites models of codon evolution were first used to test for evidence of positive selection on ZP-N motifs, after which posterior probabilities of residues under positive selection were inferred via the Bayes Empirical Bayes algorithm  implemented in the PAML software package . The VEZP14 alignment was identical to those for tests of correlated evolution; for VERL the entire sequence of repeats 1 and 2 were analyzed, as test statistics from ZP-N motifs alone were not statistically significant (see Table 1). Positively selected sites with posterior probabilities >95% were located on the structural models of ZP-N motifs from VERL and VEZP14  using the PyMol software package .
Expression of ZP-N motifs
ZP-N motifs from Haliotis fulgens [chosen because of extensive previous biochemical and structural studies of reproductive proteins; see, e.g. ,] VERL and VEZP14 were expressed in vitro and proteins purified for binding assays with lysin. PCR primers incorporating 5′-BglII and 3′-ApaI restriction sites were designed from H. fulgens sequence to amplify ZP-N motifs from VERL repeats 1, 2, and 3 individually, as well as VEZP14 using standard PCR protocols. PCR products for VERL repeat 1 and VEZP14 ZP-N motifs were verified via Sanger sequencing, but repeated attempts at cloning PCR products from VERL repeats 2 and 3 were unsuccessful. PCR products were digested with BglII and ApaI following manufacturers guidelines (NEB; Beverly, MA), and cloned into vector pMT/BiP/V5His v.A before transfecting S2 cells following manufacturers guidelines for the Drosophila Expression System (Invitrogen; Carlsbad, CA).
ZP-N proteins were purified from transfected S2 cell culture media using immobilized metal affinity chromatography (IMAC). Serum free media (250 mL) containing transfected S2 cell cultures at a density of ∼5×104 cells/ml were grown 24 hours, followed by induction of protein expression using 750 µM CuSO4 for an additional 24 hours. Cells were precipitated from the media and discarded, protease inhibitors (Novagen; Madison, WI) and 1 ml of chelating sepharose (GE Healthcare; Upsalla, Sweden) added to the supernatant and stirred overnight at 4°C to allow binding with a C-terminal 6X His tag. Sepharose-bound proteins were washed twice with 50 ml PBS buffer (80 mM Na2HPO4, 20 mM Na2H2PO4, 100 mM NaCl, pH 7.5), twice with PBS buffer supplemented to 500 mM NaCl, and bound protein eluted by sequential addition of 10 ml imidazole at increasing concentration (10, 50, and 250 mM imidazole; 100 mM Tris, pH 8.0). Select fractions were analyzed for expression products in the range of 17.1 and 16.6 kilo Daltons (kDa; VERL and VEZP14, respectively) via SDS PAGE as in , and by probing Western blots with mouse monoclonal antibodies to the C-terminal V5 epitope per manufacture's guidelines (Invitrogen; Carlsbad, CA). Fractions with evidence of expression proteins in the target size range were pooled, dialized overnight at 4°C into two 500 ml changes of PBS buffer, and protein concentrations measured via BCA (Thermo Scientific; Rockford, IL). Purified proteins were confirmed as VERL repeat 1 or VEZP14 ZP-N motifs based on matching of peptide mass spectra using shotgun proteomics as in , but analyzing 1 µg of trypsin-digested protein via reversed-phase HPLC in a 1 hour water:acetonitrile gradient. Differential glycosylation was tested as an explanation for laddered VERL ZP-N bands (see Figure S2) by enzymatic de-glycosylation of 25 µg of protein using PNGaseF (Sigma; St. Louis, MO) and assessing mobility shifts via SDS PAGE.
Quantitative measurements of binding affinity between lysin and ZP-N motifs from VERL and VEZP14 were made using an in-house surface plasmon resonance (SPR) detection system described previously . Gold sensor surfaces were coated overnight at 4°C with 2 µg IMAC purified VERL repeat 1 or VEZP14 ZP-N (two replicates each), and rinsed with PBS buffer prior to SPR analysis. Injected analytes included green abalone lysin as well as chicken lysozome (Sigma; St. Louis, MO), a negative control of similar size and charge as abalone lysin. Lysin was purified from green abalone testis using ion exchange chromatography exactly as in , dialized overnight at 4°C into two changes of HEPES buffered seawater (HBSW; filtered seawater, 10 mM HEPES, pH 7.8), and diluted to a concentration of 40 µg/ml with HBSW supplemented with 0.5% Triton X-100 and 1 mg/ml bovine serum albumin (Sigma; St. Louis, MO). The sample loop of the SPR system was equilibrated with supplemented HBSW at 25°C, followed by injection of 1 ml of negative control or lysin analytes flowed over sensors at 70 µl/min for 10 minutes (association interval), after which analyte was removed and the sample loop flushed with supplemented HBSW for 5 minutes (dissociation interval). ZP-N coated sensor surfaces were regenerated between injections by removing bound analyte with 100 mM glycine (pH 2.8) and equilibrating with supplemented HBSW for 10 minutes. Measurements of refractive index units (RIU) were then used to calculate the association (ka) and dissociation (kd) rates from association and dissociation intervals of SPR data by curve fitting using non-linear least-squares regression, implemented via Scrubber2 (Center for Biomolecular Interaction Analysis, University of Utah).

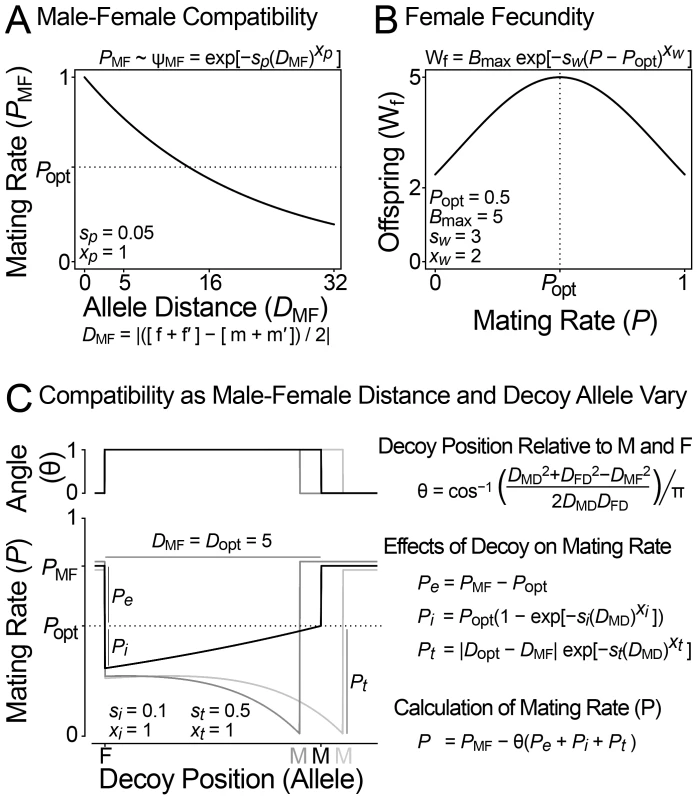

Model of sexual conflict with a female decoy
We extended the diploid two-locus sexual conflict models of  by incorporating a female decoy, a locus that modifies mating rates toward the female's optima. The alleles of the male, female, and decoy genes are represented by numbers between 1 and 50, and the distances between these numbers determine the mating rate of a given male and female pair. We assume that alleles determine the phenotype additively for all loci, since this is most likely to result in continuous male-female co-evolution . Figure 4A and 4B describe how a difference in optimal mating rate can result in sexual conflict. The mating rate of a male-female pair depends on the phenotypic distance (DMF) between the male and female as determined additively by alleles of sex-limited male (m/m′) and female (f/f′) reproductive loci. Small phenotypic distance values cause high mating rates. The number of offspring per female decreases as her mating rate (P) deviates above or below the optimal female mating rate (Popt). The optimal male mating rate is 1, and males increase mating rate by evolving alleles that are similar to females. Above Popt females are selected to reduce mating rate by evolving away from males and a co-evolutionary chase ensues . Below Popt both females and males benefit from an increased mating rate. Figure 4C shows how a decoy locus can modify the mating rate in line with the female's optima. The decoy is only active when its phenotypic value lies between the male and female (θ = 1). The decoy's effect on mating rate is broken down into three components (Pe, Pi, and Pt). Pe (decoy effectiveness) reduces mating rate to Popt. Pi (female-decoy interference) further reduces mating rate when the decoy is similar to the female. Interference decreases as the decoy approaches the male, and the mating rate thus approaches Popt. Pt (the magnitude of female-decoy interference) depends on the male-female distance. Dopt is the optimal male-female distance for decoy function; when DMF deviates from Dopt, the decoy interferes with the female and reduces mating rate (Pt). Equations and parameter values describing these relationships are in Figure 4.
Simulations are run on populations of N = 10,000 individuals for 15,000 generations (Figure 5). Females encounter n = 20 males per generation and mate with a proportion of them depending on the genetic distance between male and female, and on the activity of the decoy. A neutral locus lacking any effect on mating rate is also simulated, as a control to monitor for stochastic correlations. Each locus has 50 possible alleles with initial values Male: 0, Female: 5, Decoy: 16, Neutral: 30, and a mutation rate μ = 5.0×10−5 per locus per generation. Other simulation parameters and equations are shown in the graph detailing the model (Figure 4). As in , 20 simulation runs were used to assess model behavior. Scripts for running simulations were written in Perl, and are provided in Supplement S1. For comparison with actual abalone sperm and egg proteins (lysin, VERL, and VEZP14), the change in the mean allelic value over each 500 generations of the simulation was used to estimate the rate of evolutionary change (a proxy for branch-specific dN/dS estimates along individual phylogenetic lineages). Linear regressions were fit to point estimates as was done with the lysin and ZP-N data, with correlated rates inferred as a significant slope parameter (p>0.05).
