Parasite Fate and Involvement of Infected Cells in the Induction of CD4 and CD8 T Cell Responses to


CD4+ and CD8+ T cells are critical for controlling many infections. To generate a T cell response during infection, T cells must encounter the microbial peptides that they recognize bound to MHC molecules on the surfaces of other cells, such as dendritic cells. It is currently unclear how dendritic cells acquire the antigens they present to T cells during infection with many intracellular pathogens. It is possible that these antigens are phagocytosed and processed by dendritic cells, or antigens may be presented by cells that are infected by pathogens such as Toxoplasma gondii, which invades host cells independently of phagocytosis. To differentiate these pathways, we developed a novel technique to track the fate of T. gondii in vivo that distinguishes actively infected cells from those that phagocytosed parasites. This technique was used to examine each of these cell populations. We also used pharmacological inhibitors of parasite invasion, and the transfer of sort-purified infected or uninfected dendritic cells and macrophages to determine what roles phagocytosis and active invasion have in the initiation of T cell responses. Our results demonstrate that phagocytosis of parasites is not sufficient to induce CD4+ or CD8+ T cell responses, whereas infected cells are critical for this process.


Published in the journal: . PLoS Pathog 10(4): e32767. doi:10.1371/journal.ppat.1004047
Category: Research Article
doi: 10.1371/journal.ppat.1004047

Summary

CD4+ and CD8+ T cells are critical for controlling many infections. To generate a T cell response during infection, T cells must encounter the microbial peptides that they recognize bound to MHC molecules on the surfaces of other cells, such as dendritic cells. It is currently unclear how dendritic cells acquire the antigens they present to T cells during infection with many intracellular pathogens. It is possible that these antigens are phagocytosed and processed by dendritic cells, or antigens may be presented by cells that are infected by pathogens such as Toxoplasma gondii, which invades host cells independently of phagocytosis. To differentiate these pathways, we developed a novel technique to track the fate of T. gondii in vivo that distinguishes actively infected cells from those that phagocytosed parasites. This technique was used to examine each of these cell populations. We also used pharmacological inhibitors of parasite invasion, and the transfer of sort-purified infected or uninfected dendritic cells and macrophages to determine what roles phagocytosis and active invasion have in the initiation of T cell responses. Our results demonstrate that phagocytosis of parasites is not sufficient to induce CD4+ or CD8+ T cell responses, whereas infected cells are critical for this process.

Introduction

Toxoplasma gondii is an intracellular protozoan parasite of medical and veterinary significance that can induce acute disease in its host and is an important opportunistic pathogen in immunocompromised individuals [1], [2]. Successful control of this pathogen requires a rapid TH1 immune response, characterized by the production of the cytokine IL-12, which promotes the ability of parasite-specific CD4+ and CD8+ T cells to produce the cytokine Interferon-γ (IFN-γ) [3], [4], [5]. The initiation of CD8+ T cell responses is a complex process which requires that professional antigen presenting cells acquire antigens and present them in the context of Major Histocompatibility Complex (MHC) I, and multiple models have been proposed to explain how this may occur during toxoplasmosis [6], [7]. For example, in other systems, foreign antigens are acquired through the pinocytosis of soluble antigens, the phagocytosis of large particulate antigens, or the phagocytosis of host cells containing foreign antigens, and subsequently presented to CD8+ T cells through cross-presentation [8], [9]. A role for cross presentation during toxoplasmosis is supported by in vivo imaging studies showing that uninfected dendritic cells interact extensively with parasite-specific CD8+ T cells [6], [10], [11]. Alternatively, since T. gondii is an intracellular parasite, actively infected dendritic cells may acquire parasite-derived antigens from their intracellular environment independently of phagocytosis and directly prime naïve CD8+ T cells. Indeed, the ability of cells actively infected by T. gondii to prime or present antigen to CD8+ T cells has been observed in vitro [12][14] and the critical role of perforin in immunity to T. gondii implicates the cytolysis of infected host cells as a mechanism of defense, thus arguing that infected cells can present antigen to effector CD8+ T cells in vivo [15]. However, several caveats must be acknowledged in interpreting these studies. Firstly, the ability of infected cells to present antigens to reporter cells lines or activated effector CD8+ T cells does not necessarily indicate that infected cells can prime naïve CD8+ T cells, and events that occur in vitro may not represent the in vivo situation. Additionally, it can be difficult to distinguish actively infected host cells from those that have phagocytosed the parasite by flow cytometry, thus confounding experimental interpretation. Furthermore, like many intracellular pathogens, T. gondii has been reported to inhibit the expression or upregulation of molecules involved in antigen presentation such as MHCI, CD40, CD80, and CD86 on infected cells, suggesting that the ability of infected cells to prime naïve CD8+ T cells may be compromised [16][18].

Antigens presented to CD4+ T cells in the context of MHCII may also be derived from the extracellular or intracellular environment of the host cell. Endocytosed antigens can be presented in the context of MHCII, and this pathway is considered to be the primary mechanism by which antigens are acquired for presentation to CD4+ T cells [19]. However, intracellular antigens can also be presented in the context of MHCII, as cytosolic peptides are presented in the context of MHCII by B cells and macrophages [20]. Similarly, in vitro studies have demonstrated that viral or model antigens expressed intracellularly can be presented to CD4+ T cells independently of phagocytosis [21][29]. Despite these findings, the role of infected cells in presenting antigen to CD4+ T cells in vivo during any infection remains unclear [30]. In the case of T. gondii, downregulated expression of MHCII and other molecules involved in antigen presentation has been observed on infected cells, and cells infected with T. gondii exhibit decreased ability to present antigen in vitro [16][18]. Furthermore, in vitro studies have observed that antigens from heat-killed or invasion-inhibited parasites incubated with dendritic cells can be presented in the context of MHCII, consistent with a role for phagocytosis-dependent antigen presentation to CD4+ T cells [12].

There are several difficulties involved with addressing the relative contributions of phagocytosis versus active invasion to antigen presentation in vivo during many infections. For example, interfering with these pathways can result in changes in pathogen burden and inflammation that confound experimental interpretation, and the parasite-mediated lysis of host cells and re-infection may obscure the analysis of the earliest cell populations that interact with the pathogen. In addition, there are limited tools to distinguish host cells that have phagocytosed pathogens from those that have been productively infected. In the present study, these issues are addressed using a non-replicating uracil auxotrophic vaccine strain of T. gondii (the cpsII strain) [31][33] and a novel assay that tracks the fate of parasites and distinguishes active invasion from phagocytosis in vivo. Using these approaches, cpsII parasites were found to infect large numbers of macrophages and dendritic cells, and dendritic cells were found to be necessary for optimal cpsII-induced CD4+ and CD8+ T cell responses. Infected dendritic cells displayed an activated phenotype, characterized by high levels of CD86 and MHCI expression, which was unique from the phenotype of dendritic cells that had phagocytosed T. gondii. Furthermore, the administration of heat-killed or invasion-blocked parasites did not induce CD4+ or CD8+ T cell responses, thus demonstrating that phagocytosis of parasites is insufficient to activate naïve T cells. Lastly, the selective transfer of infected dendritic cells or macrophages, but not those that had phagocytosed T. gondii, to naïve mice resulted in robust CD4+ and CD8+ T cell responses and protection from challenge with a virulent strain of T. gondii. These findings point toward a critical role for infected cells in initiating the adaptive immune response to T. gondii.

Results

Development of a system to distinguish phagocytosis of parasites from active invasion

To distinguish between parasites that are phagocytosed by host cells and those that actively infect host cells, differences in sensitivity to pH between the fluorescent markers mCherry and CellTrace Violet were exploited. When mCherry-expressing parasites were labeled intracellularly with CellTrace Violet and incubated overnight in buffer solutions of varying pH, mCherry fluorescence was retained (Figure 1a). In contrast, violet fluorescence intensity was maintained at pH 7.0 but was decreased at low pH (Figure 1a). The ability of this system to distinguish active invasion from phagocytosis was demonstrated in vitro by incubating Violet-labeled, mCherry-expressing cpsII parasites with macrophages and examining fluorescence by flow cytometry 1 hour and 18 hours post-infection. At one hour after incubation with parasites, two distinct macrophage populations were present: One displayed mCherry and Violet fluorescence, while the other was negative for both markers (Figure 1b). However, by 18 hours, two distinct mCherry+ve populations were apparent. One population displayed no loss of mCherry or Violet fluorescence (mCherry+veViolet+ve), while the other population had decreased mCherry fluorescence associated with a complete loss of violet fluorescence (mCherry+veViolet−ve). Utilizing ImageStream flow cytometry to generate images of individual cells from each of these populations revealed that the mCherry+veViolet+ve cells contained intact parasites, while the mCherry+veViolet−ve cells contained dimmer and more diffuse mCherry fluorescence (Figure 1c, Figure S1). Instances in which cells contained both diffuse fluorescence and intact parasites were rare (<3% of infected cells). Furthermore, pre-treatment of parasites with the irreversible inhibitor of invasion 4-p-bromophenacyl bromide (4-p-bpb) (thus making parasites targets for phagocytosis) [12], [34][36], resulted in the complete loss of the mCherry+veViolet+ve population at 18 hours post-infection (Figure 1b,c, Figure S1). Staining with LysoTracker, a fluorescent dye that specifically stains acidified compartments [37], enabled parasites that localized to acidified compartments to be distinguished from those that persist in non-acidified compartments. Both of these populations of parasites (LysoTracker+ve and LysoTracker−ve) were apparent when untreated (invasion competent) parasites were incubated with bone marrow-derived macrophages one hour post-infection (Figure S2). In contrast, when invasion was pharmacologically inhibited parasites localized exclusively to the acidified compartments at these early time points, and at later time points the diffuse mCherry+ve fluorescence localized most commonly to a LysoTracker−ve compartment. Collectively, these results are consistent with a model in which phagocytosed parasites are degraded, and the acidic environment of the phagosome leads to a loss of Violet fluorescence, while mCherry fluorescence is retained. In contrast, when the parasite actively invades host cells and persists in the less acidic environment of the parasitophorous vacuole (PV), both Violet and mCherry fluorescence are retained.

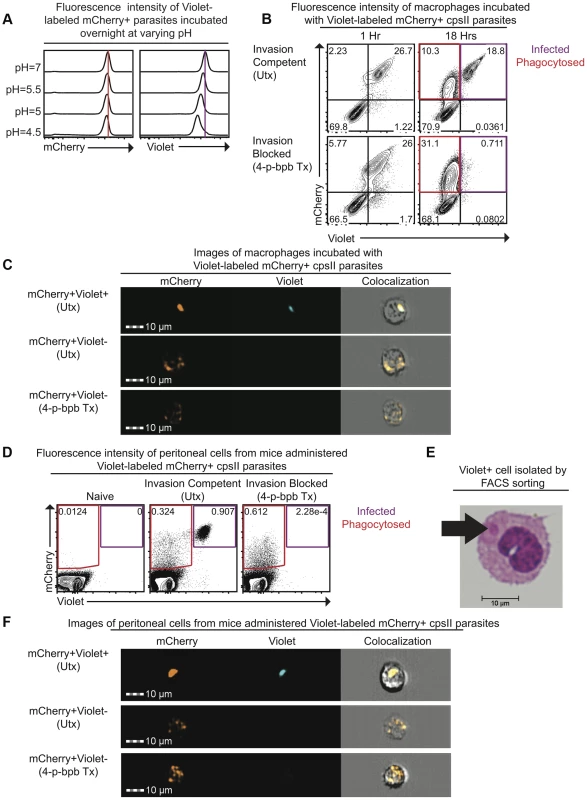

Differences in pH sensitivity of two fluorescent markers can be used to distinguish parasites that have been phagocytosed from those that actively invade host cells.
Fig. 1. Differences in pH sensitivity of two fluorescent markers can be used to distinguish parasites that have been phagocytosed from those that actively invade host cells.
Fluorescence intensity of mCherry-expressing cpsII parasites labeled with CellTrace Violet and incubated overnight at varying pH in buffer solutions consisting of citric acid and disodium phosphate [93] was measured by flow cytometry (a). Violet and mCherry fluorescence of immortalized murine bone marrow-derived macrophages exposed to Violet-labeled, mCherry-expressing cpsII parasites pre-treated with DMSO (top) or the irreversible inhibitor of invasion 4-p-bpb (bottom) 1 hour and 18 hours following exposure to parasites, measured by flow cytometry (b). Images of mCherry+veViolet+ve and mCherry+veViolet−ve bone marrow-derived macrophages 18 hours following exposure to Violet-labeled, mCherry-expressing cpsII parasites pre-treated with 4-p-bpb or DMSO (c). Violet and mCherry fluorescence of cells isolated from the PECS of mice 18 hours post-administration of 106 DMSO-treated or 4-p-bpb-treated parasites (d). Cytospin analysis was performed on Violet+ve cells isolated by FACS sorting, obtained from the PECS of a mouse 18 hours after vaccination with Violet-labeled cpsII parasites (e). Images of mCherry+veViolet+ve and mCherry+veViolet−ve cells isolated from the PECS of mice 18 hours post-administration of 106 DMSO-treated or 4-p-bpb-treated Violet-labeled, mCherry-expressing cpsII parasites (f).

The ability to distinguish active invasion from phagocytosis was then utilized to determine the fate of cpsII parasites in vivo. When C57BL/6 mice were vaccinated intraperitoneally with Violet-labeled, mCherry-expressing parasites, mCherry+veViolet+ve and mCherry+veViolet−ve populations were apparent in the Peritoneal Exudate Cells (PECS) 18 hours post-vaccination, and the presence of the mCherry+veViolet+ve population was abrogated by pre-treating the parasites with 4-p-bpb (Figure 1d). Furthermore, when Violet+ve cells were sorted and cytospins were examined, they were found to contain intact parasites (Figure 1e). ImageStream analysis also revealed that the mCherry+veViolet+ve population contained intact parasites whereas the mCherry+veViolet−ve population displayed diffuse mCherry fluorescence (Figure 1f, Figure S3). Collectively, these studies demonstrate that the use of fluorescent markers with differing pH sensitivities can be used to distinguish cells that have phagocytosed T. gondii from those that have been actively infected.

CpsII parasites can persist within infected host cells, but are ultimately cleared from the peritoneal cavity

To measure the persistence of cpsII parasites in vivo, bioassays were performed in which tissues from vaccinated mice were cultured in the presence of exogenous uracil and examined by microscopy for the presence of cpsII parasites. Using this method, cpsII parasites were detected in all mice examined at day 3 post-infection. However, by day 5 post-infection, 50% of mice had cleared the infection, and by day 10 post-infection, no parasites could be detected. These data suggest that cpsII parasites are ultimately cleared from the host, and are consistent with previous studies, in which parasite DNA could not be detected in the peritoneal cavities or spleens of cpsII-vaccinated mice when measured 3 weeks post-infection [38].

To determine the mechanisms by which cpsII parasites may ultimately be cleared from host cells, their fate within infected host cells was examined in vitro. Since IFN-γ (in combination with LPS or TNF-α) can induce the recruitment of immune enzymes such as the Immunity Related Guanosine Triphosphatases (IRGs) to the PV, and these enzymes have been implicated in the rupture of the PV which leads to the xenophagic elimination of the parasite [39], the colocalization of the parasite with Irgb6 (a member of the IRG family) and LAMP-1 (which is expressed on lysosomes) in IFN-γ–activated cells and untreated cells was examined using immunofluorescence microscopy, to determine if IFN-γ induced the elimination of cpsII parasites within infected cells. When the subcellular localization of live cpsII parasites was examined, it was apparent that these parasites did not colocalize with either Irgb6 or LAMP-1 in IFN-γ-activated or untreated macrophages, at any time point examined (ranging from 3 hours post-infection to 5 days post-infection) (Figure 2a–b). In contrast, LAMP-1 colocalized with heat-killed parasites, consistent with the idea that heat-killed parasites are phagocytosed. These data argue against the notion that cpsII parasites are eliminated by xenophagy, and demonstrate that these parasites can persist within infected cells for long periods of time. Electron microscopy was also utilized to examine the integrity of the PV, since IFN-γ can induce the blebbing and rupture of the PV during infection with replicating strains of T. gondii [40], [41]. Using this approach, cpsII-infected macrophages were consistently observed to contain intact PVs and blebbing was not apparent (Figure 2c). Additionally, some cpsII parasites showed atypical morphology, indicative of non-productive cell division (Figure 2d). Collectively, these results confirm that cpsII parasites cannot replicate within host cells, and suggest that cpsII parasites can persist within infected cells, evading IFN-γ-mediated destruction, although they are eventually cleared from the host.

The fate of heat-killed and live <i>cpsII</i> parasites in host cells.
Fig. 2. The fate of heat-killed and live cpsII parasites in host cells.
C57BL/6 bone marrow derived macrophages were infected with cpsII parasites and examined using immunofluorescence assays (a). Bone marrow-derived macrophages activated with IFN-γ (100 U/ml) and LPS (0.1 ng/ml) were infected with freshly lysed or heat-killed parasites for 3 hours. Intracellular parasites were stained for host Irgb6 or LAMP1 recruitment in green. Parasites were stained with a mouse monoclonal antibody to GRA1 to identify the parasitophorous vacuole or rabbit polyclonal sera against GRA7 in red. IFN-γ and LPS activated bone marrow-derived macrophages were infected with freshly lysed cpsII parasites and fixed at 3, 24, 48 and 120 hours post-infection (b). Parasite vacuoles were identified with rabbit polyclonal sera to GRA7 (red) and host LAMP1 was identified with a rat monoclonal antibody. Scale bar = 10 µm. Electron micrograph images of infected macrophages treated with IFN-γ (50 units/ml) and LPS (10 ng/ml) or untreated at 2 hours post-infection (c). Parasites persist in intact vacuoles and do not display blebbing or disruption of the parasitophorous vacuole. Some cpsII parasites were found to exhibit non-productive cell division in IFN-γ and LPS- treated or untreated macrophages when examined 24 hours post-infection (d). Scale bars = 1.5 µm.

Identification and phenotypic analysis of cells that are infected by or phagocytose cpsII parasites

To better understand the fate of cpsII parasites in vivo, mice were challenged intraperitoneally with Violet-labeled, mCherry-expressing cpsII parasites, and flow cytometry was performed on the PECS 18 hours later to characterize the cell populations that had phagocytosed T. gondii or were actively infected. The largest population of mCherry+veViolet+ve cells to be infected was CD11bHI macrophages, which comprised 44.0±16.7% of infected cells. Dendritic cells (which have been previously implicated in the induction of T cell responses to cpsII [42]) comprised 8.3±2.8% of infected cells (Figure 3a,b). Of the infected dendritic cells the vast majority (97.8±2.0%) belonged to the Gr-1−veCD11bHI subset (data not shown). Although T. gondii is capable of infecting any nucleated cell, when the frequencies of CD11bHI macrophages and dendritic cells within the population of infected cells (44.0±16.7% and 8.3±2.8%, respectively) were compared to their frequencies within the total population of peritoneal cells in vaccinated mice (11.3±7.9% and 1.3±0.4%, respectively), it was apparent that macrophages and dendritic cells are overrepresented among cells infected by the parasite (Figure 3c). Analysis of the population that had phagocytosed T. gondii revealed 46.0±20.6% of these cells were CD11bHI macrophages, whereas dendritic cells represented 6.2±3.2% of this population (Figure 3a,b). Additionally, 23.4±9.9% of the cells that had phagocytosed the parasite stained positive for markers for T, B or NK cells (CD3, CD19 and NK1.1, respectively). Further sub-setting revealed these cells to be B cells, consistent with previous reports identifying a population of phagocytic B cells in the peritoneal cavity (Figure 3b, data not shown) [43], [44]. Parasites were not detected in lymph nodes or spleens by flow cytometry, and parasites could not be cultured from these tissues at days 3,5 or 10 post-vaccination.

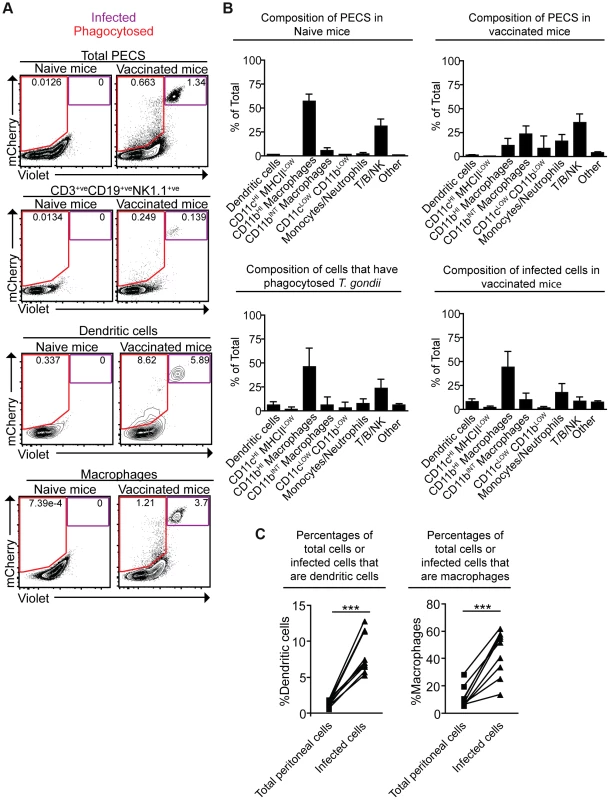

Composition of total cell populations, mCherry<sup>+ve</sup>Violet<sup>−ve</sup> cell populations, and mCherry<sup>+ve</sup>Violet<sup>+ve</sup> populations from the PECS of naïve and vaccinated mice.
Fig. 3. Composition of total cell populations, mCherry+veViolet−ve cell populations, and mCherry+veViolet+ve populations from the PECS of naïve and vaccinated mice.
Mice were vaccinated with 106 Violet-labeled, mCherry-expressing cpsII parasites intraperitoneally and sacrificed 18 hours post-vaccination. Cell type composition of total peritoneal cell populations in naïve and vaccinated mice, and the cell type composition of mCherry+veViolet−ve cells and mCherry+veViolet+ve cells in vaccinated mice were examined. Representative flow plots demonstrating infected cells and cells that have phagocytosed T. gondii for each major cell type present in the PECS are shown (a). The composition of the PECS in naïve mice and vaccinated mice, and the composition of infected cells (mCherry+veViolet+ve) and cells that have phagocytosed T. gondii (mCherry+veViolet−ve) are depicted (b). Percentages of macrophages and dendritic cells in the total peritoneal cell population in vaccinated mice are compared to the percentages of infected cells that are macrophages and dendritic cells (c). T/B/NK cells are identified by expression of CD3, CD19, or NK1.1. Dendritic cells were identified as CD3−ve,CD19−ve,NK1.1−ve,CD11cHI,MHCIIHI. Monocytes and neutrophils were defined as CD3−ve,CD19−ve,NK1.1−ve,CD11cLOW-INT,Gr-1+ve. Macrophages were identified as CD3−ve,CD19−ve,NK1.1−ve,CD11cLOW-INT,Gr-1−ve,CD11bINTorHI. *p<0.05; ***p<0.0005. AVG±STDEV. A paired, two-tailed student's t test was used to analyze the data in (c). Results shown are from one representative experiment. Similar results were obtained over the course of seven separate experiments.

The phenotype of infected cells and those that phagocytosed the parasite was compared by analyzing expression levels of MHCI and MHCII, as well as the costimulatory molecules CD86 and CD40. Although vaccination with cpsII resulted in an overall increase in expression of MHCI on CD11bHI macrophages, macrophages that had phagocytosed the parasite and those that were infected displayed similar levels of MHCI to the total population present in the PECS of vaccinated mice. In contrast, dendritic cells that had phagocytosed cpsII and those that were infected by the parasite displayed higher levels of MHCI relative to the total dendritic cell population in the peritoneal cavity (Figure 4a). Vaccination with cpsII induced no significant changes in MHCII expression on dendritic cells, although infected macrophages had lower levels of MHCII than the total population in the PECS (Figure 4b). Expression of CD86 was markedly higher on macrophages and dendritic cell populations that were infected by the parasite, but not the populations that had phagocytosed the parasite (Figure 4c). While vaccination induced increased CD40 expression on the total dendritic cell population, infected cells displayed similar expression levels to the total population, and those that phagocytosed the parasite exhibited the highest levels of expression (Figure 4d). Collectively, these results reveal a complex pattern demonstrating that infected macrophages and dendritic cells display activated phenotypes, characterized by the upregulation of MHCI and CD86, and constitutive expression of CD40 and MHCII, which is distinct from the phenotype of cells that phagocytosed T. gondii.

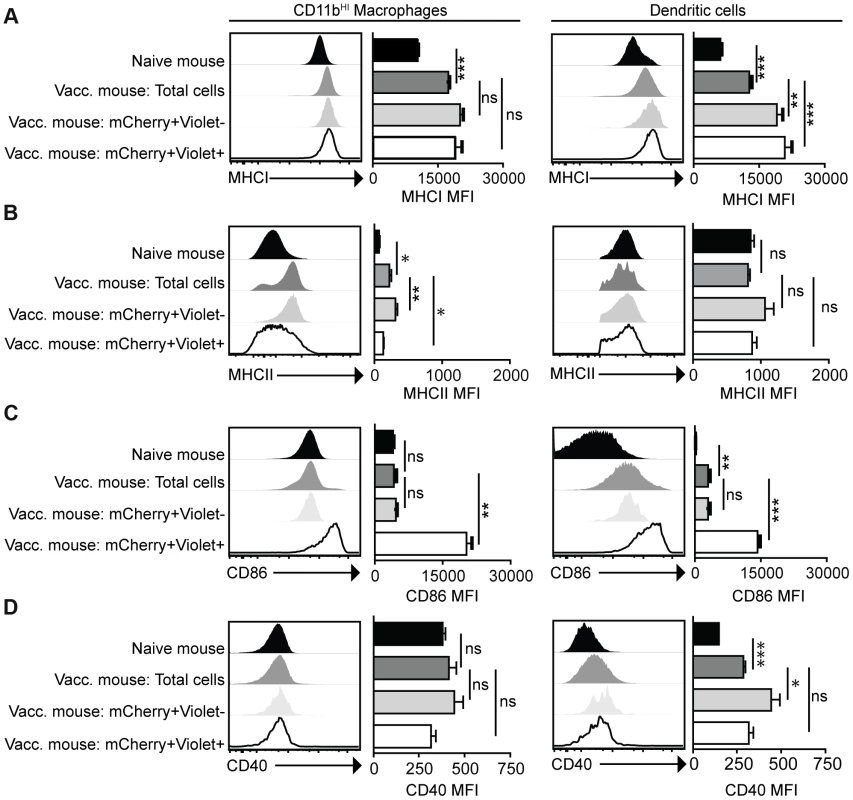

Activation status of mCherry<sup>+ve</sup>Violet<sup>−ve</sup> and mCherry<sup>+ve</sup>Violet<sup>+ve</sup> macrophages and dendritic cells.
Fig. 4. Activation status of mCherry+veViolet−ve and mCherry+veViolet+ve macrophages and dendritic cells.
Mice were administered parasites as described in Figure 3. At 18 hours post-vaccination, expression of the antigen presentation molecules MHCI (a) and MHCII (b) and expression of the costimulatory molecules CD86 (c) and CD40 (d) on CD11bHI macrophages and dendritic cells was determined by flow cytometry. Macrophages are identified as CD3−ve,CD19−ve,NK1.1−ve,CD11c−ve,Gr-1−ve,CD11bHI cells. Dendritic cells are identified as CD3−ve,CD19−ve,NK1.1−ve,CD11cHI,MCHIIHI. Confidence intervals were determined using the Bonferroni correction method. *p<0.017; **p<0.0017; ***p<0.00017. AVG±SE. Paired, two-tailed student's t tests were used to compare expression levels of molecules on populations within cpsII-vaccinated mice.

Dendritic cells are critical for optimal cpsII-induced CD4+ and CD8+ T cell responses

Given the activated phenotype of dendritic cells infected with cpsII versus those that had phagocytosed the parasite, studies were performed to determine the role of dendritic cells in the development of CD4+ and CD8+ T cell responses to this strain. Mice that express the diphtheria toxin receptor under the control of the CD11c promoter (CD11c-DTR mice) were used to test the requirement for dendritic cells to prime T cells [45]. In these experiments, CD11c-DTR mice were treated with diphtheria toxin, which resulted in a 70–90% reduction in dendritic cells (Figure 5a). One day following the administration of diphtheria toxin, mice were challenged with a strain of cpsII engineered to express Ovalbumin (cpsII-OVA) [38]. At eight days following vaccination, CD4+ and CD8+ T cell responses were measured using MHCII tetramers, which bind CD4+ T cells specific for the endogenous T. gondii epitope CD4Ag28m combined with magnetic enrichment for the tetramer+ve population [46], [47], and MHCI tetramers for OVA-specific CD8+ T cells. Additionally, the surface molecule CD11a, which is upregulated on antigen-experienced CD4+ and CD8+ T cells [48], [49], and the intracellular molecule Ki67, which is indicative of cellular proliferation [50], were used to estimate the total CD4+ and CD8+ T cell responses to T. gondii. Indeed, vaccination with cpsII induced a two-fold increase in the frequency of CD11aHIKi67HI cells and an expansion in the number of CD11aHI CD4+ T cells specific for the CD4Ag28m epitope, but depletion of dendritic cells inhibited these responses (Figure 5b). Similarly, cpsII vaccination induced an increase in CD11aHIKi67HI and OVA-specific CD8+ T cells, however these responses were decreased in mice depleted of dendritic cells (Figure 5c). Furthermore, when Flt3L−/− mice (which have global defects in numbers of dendritic cells [51]) or Batf3−/− mice (which have a defect in numbers of CD8a+ dendritic cells [52]) were challenged with cpsII-OVA, both mice displayed marked defects in tetramer-specific and total CD4+ and CD8+ T cell responses (Figure S4,S5).

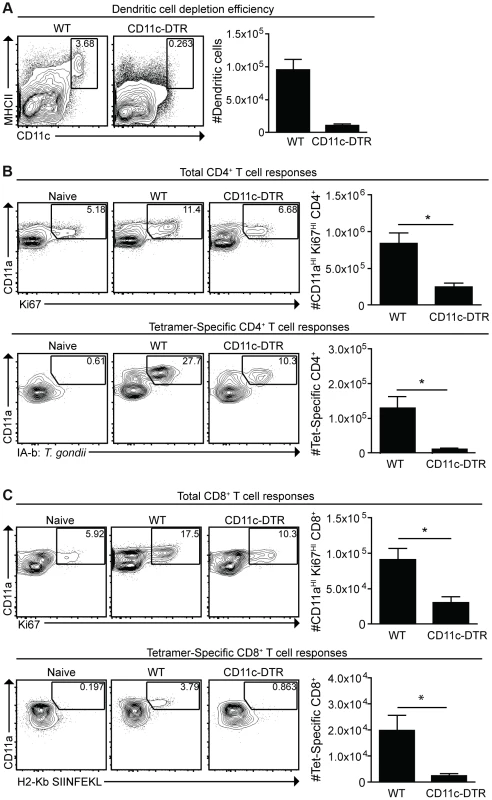

Dendritic cells are required for optimal CD4<sup>+</sup> and CD8<sup>+</sup> T cell responses.
Fig. 5. Dendritic cells are required for optimal CD4+ and CD8+ T cell responses.
CD11c-DTR mice were administered diphtheria toxin 1 day prior to cpsII-OVA vaccination. At the time of vaccination, some mice were sacrificed to determine the efficiency of depletion. Percentages and numbers of dendritic cells from the spleen are shown. FACS plots are gated on CD3,CD19,NK1.1 cells (a). Eight days following vaccination, mice were sacrificed and total and tetramer-specific CD4+ and CD8+ T cell responses were analyzed. Total CD4+ T cell responses from the spleens are shown (b, top). Tetramer-specific CD4+ T cell responses from pooled lymph nodes and splenocytes were determined in a separate experiment (b, bottom). Flow plots are gated on CD4+ T cells (b), and the population examined was magnetically enriched for the tetramer+ve population (b, bottom). Total and OVA-specific CD8+ T cell responses from the PECS are depicted (c), and flow plots are gated on CD8+ T cells. Significant differences in tetramer and total CD8+ T cell responses between WT and CD11c-DTR mice were also apparent in the spleen. *p<0.05; **p<0.005. AVG±SE.

Given the numbers of macrophages that were either infected or which had phagocytosed T. gondii, experiments were performed to assess their role in the cpsII-induced T cell responses. However, attempts to deplete macrophages using clodronate liposomes also resulted in significant depletion of dendritic cells, making it difficult to assess the specific contribution of macrophages (data not shown). However, because monocytes were observed to interact with parasites (Figure 3b), and these populations can develop into dendritic cells that express CD11c, experiments were performed to assess their role in generating CD4+ and CD8+ T cell responses following cpsII vaccination. Therefore, mice deficient in the chemokine receptor CCR2, which promotes the recruitment of inflammatory monocytes to sites of inflammation during toxoplasmosis [53], were immunized with cpsII-OVA parasites. Despite having a defect in monocyte recruitment to the peritoneum, CCR2−/− mice had similar cpsII-induced CD4+ and CD8+ T cell responses to WT control mice (Figure S6), thus arguing against a critical role for inflammatory monocytes in presenting antigen to CD4+ and CD8+ T cells following cpsII-vaccination. Collectively, these results establish a role for dendritic cells in the generation of CD4+ and CD8+ T cell responses following cpsII vaccination.

Infected dendritic cells are sufficient to generate CD4+ and CD8+ T cell responses

To assess the contribution of phagocytosis to the generation of CD4+ and CD8+ T cell responses, mice were challenged with live cpsII-OVA parasites, heat-killed cpsII-OVA parasites, or parasites pre-treated with the irreversible inhibitor of invasion 4-p-bpb. As expected, vaccination with live parasites induced a robust CD4+ T cell response, however these responses were abrogated when parasites were killed or invasion was inhibited (Figure 6a). Similarly, CD11aHIKi67HI and OVA-specific CD8+ T cells were detected when mice were administered live, but not heat-killed or invasion-inhibited parasites (Figure 6b). Indeed, even when the dose of heat-killed parasites was increased to 107 parasites (100× the typical dose of live parasites used in these experiments), no CD4+ or CD8+ T cell responses could be detected (Figure S7). Additionally, gp91−/− mice, which have a defect in cross-presenting antigens to CD8+ T cells [54], developed normal CD8+ T cell responses following cpsII-vaccination (data not shown). Collectively, these data indicate that phagocytosis of parasites is insufficient to induce CD4+ and CD8+ T cell responses, and point toward a critical role for infected cells in these processes.

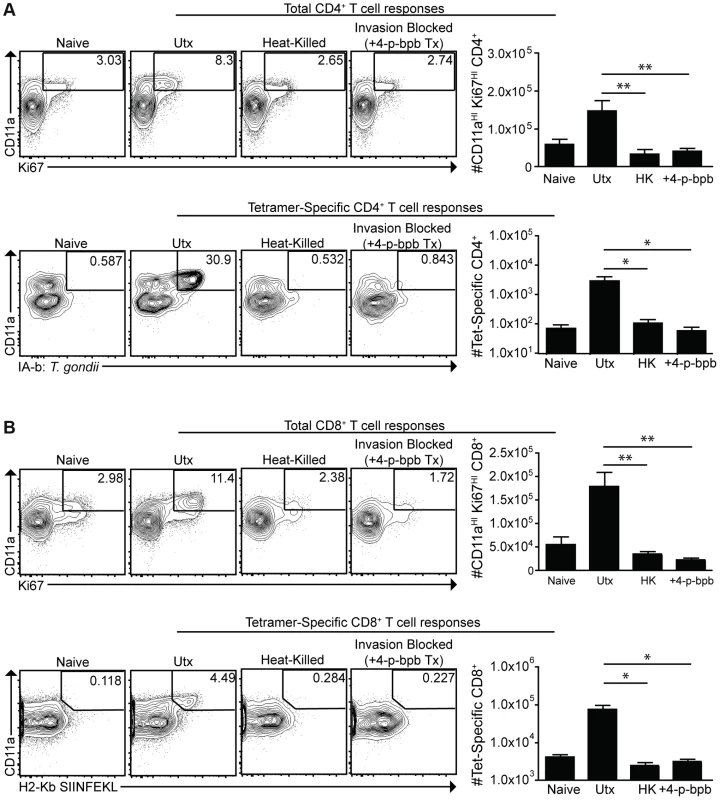

Active invasion is required for adaptive immune responses to <i>T. gondii</i>.
Fig. 6. Active invasion is required for adaptive immune responses to T. gondii.
cpsII-OVA parasites were heat-killed, treated with the invasion inhibitor 4-p-bpb or left untreated and administered to mice intraperitoneally. Tetramer-specific and total CD4+ (a) and CD8+ (b) T cell responses were measured from cells isolated from the spleen and lymph nodes (pooled) 10 days post-vaccination. Flow plots are gated on Foxp3−ve CD4+ T cells (a, top) or CD4+ T cells (a, bottom) and the population examined at the bottom of A was enriched for tetramer+ve cells. Flow plots in B are gated on CD8+ T cells. *p<0.05; **p<0.005. AVG±SE.

To determine whether infected dendritic cells were sufficient to generate CD4+ and CD8+ T cell responses, bone marrow-derived dendritic cells cultured in GM-CSF (which are CD11bHICD8α−ve) were infected with violet-labeled, mCherry-expressing cpsII parasites in vitro overnight, and FACS sorting was used to purify the uninfected (mCherry−veViolet−ve) and infected cells (mCherry+veViolet+ve) from the same cultures, and each of these fractions was then administered to naïve mice. In addition, bone marrow-derived dendritic cells were cultured with invasion-blocked parasites, and the populations of DCs that had phagocytosed the parasite (mCherry+veViolet−ve) were also isolated by FACS sorting, and administered to mice. This experiment allowed a direct comparison of the ability of infected dendritic cells and dendritic cells that phagocytosed T. gondii to induce CD4+ and CD8+ T cell responses in vivo. In mice administered uninfected dendritic cells cultured with parasites, or dendritic cells that had phagocytosed parasites, there was no detectable increase in Ki67+veCD11aHI, antigen-experienced CD4+ or CD8+ T cells (Figure 7a,b). In contrast, mice administered cpsII-infected dendritic cells developed CD4+ and CD8+ T cell responses as determined by tetramer-binding as well as expression of Ki67 and CD11a (Figure 7a,b). Furthermore, when vaccinated mice were challenged 6 weeks later with a highly virulent strain of T. gondii, only those mice administered cpsII-infected dendritic cells displayed a ∼90% reduction in parasite burden (Figure 7c). Similar results were obtained using splenic dendritic cells, which are composed of both CD8α+ and CD8α dendritic cells (data not shown). Moreover, the transfer of sort-purified infected bone marrow-derived macrophages to mice also induced CD4+ and CD8+ T cell responses and protected mice from challenge, whereas the transfer of macrophages that had phagocytosed parasites did not induce T cell responses or protection (Figure S8). Collectively, these results demonstrate a key role for infected cells in the induction of CD4+ and CD8+ T cell responses, and protective immunity upon re-challenge.

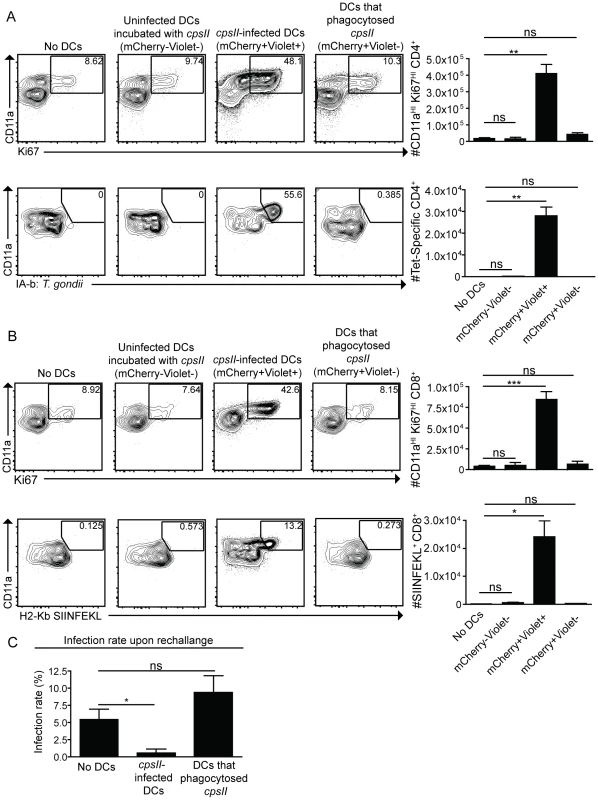

Infected cells are sufficient to induce CD4<sup>+</sup> and CD8<sup>+</sup> T cell responses.
Fig. 7. Infected cells are sufficient to induce CD4+ and CD8+ T cell responses.
Bone marrow-derived dendritic cells were cultured overnight with Violet-labeled, mCherry-expressing cpsII parasites. The following day, dendritic cells were sorted into mCherry+veViolet+ve (infected) and mCherry+veViolet−ve (uninfected) populations and 104 dendritic cells from each population were administered to mice. In parallel, dendritic cells that had phagocytosed T. gondii were obtained by sorting on bone marrow-derived dendritic cells that were incubated with invasion-blocked Violet-labeled, mCherry-expressing cpsII parasites. 10 days later, mice were sacrificed and CD4+ (a) and CD8+ (b) T cell responses in the peritoneal cavity and spleen were analyzed. Populations shown depicting CD4+-tetramer binding are enriched for the tetramer+ve population and these cells were isolated from the spleen (a, bottom). All other cell populations shown were harvested from the peritoneal cavity, although similar trends were apparent when splenocytes were examined. Flow plots are gated on Foxp3−ve CD4+ T cells (a, top), CD4+ T cells (a, bottom) or CD8+ T cells (b). Parasite burdens from the PECS of mice transferred infected dendritic cells or dendritic cells that have phagocytosed T. gondii 5 days post-challenge with 103 tachyzoites of a highly virulent, replicating strain of T. gondii, administered 6 weeks following vaccination with 104 infected or uninfected dendritic cells, analyzed by flow cytometry (c). Significance in (c) was determined using a Mann-Whitney U-test. *p<0.05; **p<0.005. AVG±SE.

Discussion

There are many fundamental questions about the mechanisms of antigen presentation that lead to the activation of CD4+ and CD8+ T cells during toxoplasmosis and multiple studies have addressed the ability of actively infected cells to present antigen [12][14], [55]. The present work highlights that following challenge in vitro or in vivo with live parasites there are high rates of phagocytosis and the combination of flow cytometry and parasites that express a single fluorescent reporter protein are not sufficient to distinguish infected cells from those that phagocytose T. gondii. Rather, the ability to combine parasites that express a pH insensitive reporter such as mCherry protein with a pH sensitive dye and analysis by high throughput imaging and flow cytometry provide a unique opportunity to examine parasite fate and host cell phenotype. This approach should be broadly applicable to determining the fate of other intracellular fungal, bacterial and parasitic pathogens [56][62]. Regardless, the ability to distinguish active invasion from phagocytosis revealed that macrophages and dendritic cells infected by T. gondii have unique activation phenotypes when compared to those that have phagocytosed the parasite. Previous reports have indicated that infection with T. gondii inhibits the maturation of professional antigen presenting cells [6], [16], [18], [63], but the data presented here are more consistent with the idea that infection induces DC maturation [36], [55], [64][66]. The experiments in which dendritic cells were selectively depleted, or pre-infected dendritic cells were transferred to mice highlight the important role of these accessory cells in generating CD4+ and CD8+ T cell responses following cpsII-vaccination. However, these findings do not rule out the possibility that other cell types are also involved. Indeed, the transfer of infected bone marrow-derived macrophages could also induce CD4+ and CD8+ T cell responses, suggesting that resident macrophages may also contribute to the T cell responses that occur following cpsII vaccination.

In current paradigms, the direct phagocytosis or endocytosis of soluble and particulate non-infectious antigens is the major pathway that allows antigens to be presented in the context of MHCII to CD4+ T cells [19]. Similarly, phagocytosed antigens are thought to be presented to CD8+ T cells through the process of cross-presentation [8]. However, the multiple approaches presented here indicate that phagocytosis of T. gondii is not sufficient to generate T cell responses. The finding that infected dendritic cells and macrophages display activated phenotypes and are able to promote CD4+ and CD8+ T cells responses in vivo distinguishes them from populations that phagocytose T. gondii. These observations suggest that live (as opposed to phagocytosed) parasites may uniquely activate innate sensing mechanisms that are linked to antigen presentation. This may relate to the persistence of parasites that occurs in infected cells, or to the engagement of mechanisms that allow the host to distinguish viable parasites from those that had been phagocytosed and would be killed [67]. The failure of cells that phagocytose the parasite to upregulate expression of CD86 is consistent with this idea. Another possibility is that dendritic cells actively infected with T. gondii display a hypermotile phenotype and enhanced migration to lymph nodes, a process that is considered essential for T cell priming [68][72]. Differences in cellular motility between infected cells and those that phagocytose parasites may account for the apparent discrepancy between the previous studies that showed that phagocytosis of parasites is sufficient to prime CD4+ T cells in vitro [12] and our finding that this process is not sufficient in vivo.

Regardless of the reasons that cells that phagocytose T. gondii fail to prime T cells, the data presented here are consistent with models in which infected cells either directly prime CD4+ T and CD8+ T cells, or are taken up by efferocytosis (i.e. the phagocytosis of apoptotic cells), leading to antigen presentation. Since T. gondii resides in a specialized non-fusogenic vacuole, it is unclear how parasite antigens may escape the PV for processing and presentation by infected cells. One possibility is that parasite antigens are acquired for presentation from the intracellular environment through the xenophagic elimination of cpsII parasites. Indeed, autophagic machinery has been implicated in the elimination of T. gondii [40], [73], [74], and antigen acquired through autophagy can be subsequently presented [23], [24], [75]. However, the lack of recruitment of Irgb6 and LAMP-1 to the PVs containing cpsII parasites argues against this idea. Other possible mechanisms that would allow parasite material to enter antigen processing pathways include the fusion of the PV with the endoplasmic reticulum [12], the secretion of antigen into the cytoplasm during invasion [76], or leakage of antigen out of the PV [14]. More recent work has shown that T. gondii can secrete antigens into host cells without subsequently infecting these cells [77]. This population of injected-but-uninfected cells may also contribute to the host immune response, and the ability to track these abortive invasion events in vivo, as well as the ability to divorce injection from infection through modulation of the parasite, may provide further insight into the pathways involved in antigen processing during cpsII vaccination.

Given the lack of overt inflammation observed during infection with cpsII parasites, the absence of parasite-driven cytolysis of host cells, and limited antigen load, it remains surprising that relatively low numbers of these parasites are able to generate strong protective CD4+ and CD8+ T cell responses, comparable to those seen during live infection [31][33], [38], [42], [78]. Increased antigenic burden is generally associated with increased T cell responses, and inflammatory signals can promote pathways involved in antigen presentation, T cell proliferation, and T cell survival [79][81]. Caution is therefore required when extrapolating these findings to natural infection with replicating parasites. Regardless, the finding that phagocytosis is insufficient to induce antigen presentation in this system highlights the importance of alternative approaches to deliver antigens for vaccine design and immunotherapies, such as those that target antigens to the host cell cytosol [82]. Furthermore, while many studies have utilized models of murine infection to elucidate the factors involved in the generation of T cell responses and the formation of memory T cells, vaccination with cpsII parasites allows these processes to be studied in a setting in which overt inflammation is limited. Thus, this experimental system may prove valuable to dissect basic principles that lead to the generation of long-lived T cell responses that translate easily to vaccine design, where inflammation should also be limited.

Materials and Methods

Ethics statement

All procedures involving mice were reviewed and approved by the Institutional Animal Care and Use Committee of the University of Pennsylvania (Animal Welfare Assurance Reference Number #A3079-01) and were in accordance with the guidelines set forth in the Guide for the Care and Use of Laboratory Animals of the National Institute of Health.

Mice

Flt3L−/− mice were obtained from Taconic Farms (Germantown, NY). Batf3−/− mice, CCR2−/− and CD11c-DTR mice were obtained from Jackson Laboratories. C57BL/6 mice were obtained from Jackson Laboratories or Taconic Farms. All mice were kept in specific-pathogen-free conditions at the School of Veterinary Medicine at the University of Pennsylvania. For experiments in which dendritic cells were depleted, CD11c-DTR or WT control mice were administered 100 ng of Diphtheria Toxin (Sigma-Aldrich) diluted in 100 µL of PBS (Invitrogen) intraperitoneally ∼12 hours prior to vaccination. Depletion efficiency was typically 90%.

Infections

All experiments were performed using cpsII parasites, cpsII-OVA parasites [38], cpsII-OVA-mCherry parasites, or RH-OVA-Tomato parasites. RH-OVA-Tomato parasites [83] and cpsII-OVA parasites [38], [84] have been previously described. CpsII-OVA parasites and were derived from the RHΔcpsII clone, which was provided as a generous gift by Dr. David Bzik [31]. CpsII-OVA-mCherry parasites were derived from the cpsII-OVA clone using the previously described methods [76], [77], with the exception that parasites were selected using zeomycin as previously described [85]. Parasites were cultured and maintained by serial passage on human foreskin fibroblast cells in the presence of parasite culture media [71.7% (Corning), 17.9% Medium 199 (Invitrogen), 9.9% Fetal Bovine Serum (FBS)(Invitrogen), 0.45% Penicillin and Streptomycin (Invitrogen)(final concentration of 0.05 units/ml Penicillin and 50 µg/ml Streptomycin), 0.04% Gentamycin (Invitrogen)(final concentration of 0.02 mg/ml Gentamycin)], which was supplemented with uracil (Sigma-Aldrich)(final concentration of 0.2 mM uracil) in the case of cpsII, cpsII-OVA and cpsII-OVA-mCherry parasites. For infections, parasites were harvested and serially passaged through 18, 20 and 26 gauge needles (BD) before filtration with a 5 µM filter (Sartorius Stedim). Parasites were washed extensively with PBS and mice were injected intraperitoneally with 105 or 106 parasites suspended in PBS. In vitro experiments were performed at an MOI of 0.5 or 1. For experiments in which CellTrace Violet (Invitrogen) was utilized to track the fate of parasites, CellTrace Violet was diluted in 200 µL of DMSO to obtain a 0.5 mM stock solution. Parasites were washed once with PBS before incubation in 0.5 µM CellTrace Violet diluted in PBS for 10–25 minutes at 37°C. This reaction was quenched by the addition of ∼40 volumes of complete media [88.5% RPMI 1640 (Corning), 8.8% FBS (Invitrogen), 0.9% Sodium Pyruvate (Gibco), 0.9% Penicillin and Streptomycin (Invitrogen)(final concentration of 0.1 units/ml Penicillin and 100 µg/ml Streptomycin), 0.9% MEM Non-essential Amino Acids Solution (Gibco) and 0.18% beta-2-mercaptoethanol (Gibco)] and parasites were washed extensively. In experiments in which 4-p-bromophenacyl bromide (4-p-bpb) was utilized to inhibit parasite invasion, 4-p-bpb (Sigma-Aldrich) was prepared fresh for each experiment and dissolved in DMSO (Sigma-Aldrich) to make a 0.1 M stock solution. Parasites were incubated in a 100 µM solution of 4-p-bpb in Fetal Bovine Serum at a concentration of 107 parasites/ml for 10 minutes, and the reaction was quenched by the addition of ∼40 volumes of complete media, followed by extensive washing [12]. To heat-kill parasites, parasites were incubated at 60°C for 1 hour in PBS [86]. Death was confirmed using Trypan Blue staining (Corning).

Cell culture and tissue harvesting

Peritoneal exudate cells were obtained by peritoneal lavage with 5 ml of PBS. Splenocytes and lymphocytes were obtained by grinding spleens and lymph nodes over a 40 µM filter (Biologix) and washing them in complete media. Red blood cells were then lysed by incubating for 5 minutes at room temperature in 5 ml of lysis buffer [0.864% ammonium chloride (Sigma-Aldrich) diluted in sterile de-ionized H2O)], followed by washing with complete media. Bone marrow-derived macrophages were obtained using previously described methods [83], [87]. Immortalized macrophages from C57BL/6 mice were obtained by transforming bone marrow-derived macrophages with the J2 Virus and were cultured in macrophage media [88].

Flow cytometry and imaging

Tetramer-specific CD4+ T cells were measured using the protocol previously described [46]. MHCII Tetramer was obtained as generous gifts from Drs. Marc Jenkins and Marion Pepper, and subsequently from the NIH Tetramer Core Facility, and was used at a final concentration of 10 nM. APC-MHCI-SIINFEKL Tetramer was obtained from Beckman-Coulter. Cells were washed with FACS Buffer [1× PBS, 0.2% bovine serum antigen (Sigma), 1 mM EDTA (Invitrogen)], stained with LIVE/DEAD Fixable Aqua Dead Cell marker (Invitrogen) and incubated in Fc block [99.5% FACS Buffer, 0.5% normal rat serum (Invitrogen), 1 µg/ml 2.4G2 (BD)] prior to staining. The following antibodies were used for staining: Ki67 Alexa Fluor 488 (BD, B56), CD3 APC-eFluor 780 (eBioscience, 17A2), CD8 eFluor 450 (eBioscience, 53-6.7), CD11a PerCP-Cy5.5 (Biolegend, H155-78), MHCII PE (eBioscience, M5/114.15.2), NK1.1 PE (BD, PK136), CD19 PE (eBioscience, 1D3), Foxp3 eFlour 450 (eBioscience, FJK-16a), CD4 Pe-Cy7 (eBioscience, GK1.5), CD3 FITC (BD, 145-2C11), NK1.1 FITC (eBioscience, PK136), CD19 FITC (eBioscience, 1D3), Gr-1 PerCP-Cy5.5 (eBioscience, RB6-8C5), CD11c PE-Cy7 (eBioscience, N418), CD11b APC-eFluor 780 (eBioscience, M1/70), MHCII AF700 (Biolegend, M5/114.15.2), MHCI APC (AlexaFlour647 AF6-88.5), CD86 APC (eBioscience, GL1), CD40 APC (eBioscience 1C10), CD8 eFlour 650 NC (eBioscience, 53-6.7), CD45.2 APC-eFluor 780 (eBioscience, 104), polyclonal rabbit anti-T. gondii [a generous gift from Fausto G. Araujo (Palo Alto Medical Foundation, Palo Alto, CA)], and polyclonal Goat anti-Rabbit Alexa Fluor 680 (Jackson). Intracellular staining was performed using the Foxp3/Transcription Factor Staining Buffer Set (eBioscience) following the manufacturer's instructions. Samples were run on a FACSCanto (BD) or LSR Fortessa (BD) and analyzed using FlowJo Software (TreeStar). Images were obtained using the ImageStream and analysis was performed using IDEAS software (Amnis).

Sorting

Splenic dendritic cells were obtained from mice injected subcutaneously with Flt3L-secreting b16 tumor cells [89], [90] and magnetically enriched using CD11c microbeads (Miltenyi Biotech) and LD MACS separation columns (Miltenyi Biotech), following the manufacturer's instructions. Bone marrow-derived dendritic cells were obtained by culturing bone marrow cells in the presence of 40 ng/ml of GM-CSF, which was added at days 0,3,6 and 9 post-seeding. Dendritic cells or bone marrow-derived macrophages were cultured overnight with parasites at 37°C and collected the following day. Dendritic cells were then stained for MHCII, CD11c, CD45, and free parasites, and sorted for mCherry+veViolet+ve, mCherry+veViolet−ve or mCherry−veViolet−ve populations that were CD45+MHCIIHICD11cHI, and negative for free parasites using the FACSAria (BD). Macrophages were stained for CD45 and free parasites and sorted into mCherry+veViolet+ve, mCherry+veViolet−ve or mCherry−veViolet−ve populations that were CD45+ and negative for free parasites.

Electron microscopy

Bone marrow-derived macrophages from C57BL/6 mice were activated with IFN-γ and LPS for 18–24 hours or left untreated in macrophage media lacking uracil [DMEM (Gibco) supplemented with 4 mM L-glutamine (Sigma) and 10% dialyzed fetal bovine serum (Hyclone)]. Where indicated, cells were infected with freshly egressed parasites, washed three times with PBS then fixed at 2 hours or 24 hours post-infection. For ultrastructural analysis, cells were fixed in 2% paraformaldehyde/2.5% glutaraldehyde (Polysciences Inc., Warrington, PA) in 100 mM phosphate buffer, pH 7.2 for 1 hour at room temperature, processed and examined as described previously [91].

Immunofluorescence assays

Immunofluorescence assays were performed in C57BL/6 bone marrow-derived macrophages. Bone marrow-derived macrophages for these experiments were derived as described previously [91]. Cells were activated with 100 U/ml IFN-γ and 0.1 ng/ml LPS in macrophage media lacking uracil. Macrophages were infected with freshly egressed parasites at an MOI of 1, washed at 3 hours post-infection five times with PBS, and incubated in uracil-free media supplemented with IFN-γ and LPS for the indicated time. Heat-killed parasites were incubated at 65°C for 10 minutes and infected at an MOI of 5. Cells for immunofluorescence were fixed in 4% formaldehyde, permeabilized with 0.05% saponin, and stained using primary antibodies as described. Parasite vacuoles were localized using mouse monoclonal Tg17-43 against GRA1 or rabbit polyclonal sera against GRA7. Host LAMP-1 was localized with rat monoclonal antibody 1D4B and Irgb6 was localized using rabbit polyclonal sera raised against recombinant protein [92]. All secondary antibodies used in immunofluorescence were highly-cross adsorbed Alexa Fluor conjugated antibodies (Invitrogen). Samples were visualized using a Zeiss Axioskop 2 MOT Plus microscope equipped for epifluorescence and using a 63× PlanApochromat lens, N.A. 1.40 (Carl Zeiss, Inc., Thornwood, NY). Images were acquired with an AxioCam MRm camera (Carl Zeiss, Inc.) using Axiovision v4.6, and processed using similar linear adjustments for all samples in Photoshop CS4 v9.

Spinning disk confocal microscopy

Bone marrow-derived macrophages were cultured with invasion-blocked or untreated mCherry-expressing cpsII parasites (MOI = 1) and LysoTracker Green DND-26 (Life Technologies) was added prior to imaging, following the manufacturer's instructions. Images were collected using a Leica DMI4000 microscope equipped with a Yokogawa CSU10 spinning disk confocal unit and a Hamamatsu ImagEM EMCCD camera. Images were analyzed using ImageJ software.

Statistical analysis

Statistical analysis was performed using PRISM software (Graphpad Software). Significance was calculated using an unpaired two-tailed student's t-test except when otherwise noted.

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8


Zdroje

1. DubeyJP (2008) The history of Toxoplasma gondii–the first 100 years. The Journal of eukaryotic microbiology 55: 467–475.

2. WeissLM, DubeyJP (2009) Toxoplasmosis: A history of clinical observations. International journal for parasitology 39: 895–901.

3. GazzinelliRT, WysockaM, HayashiS, DenkersEY, HienyS, et al. (1994) Parasite-induced IL-12 stimulates early IFN-gamma synthesis and resistance during acute infection with Toxoplasma gondii. J Immunol 153: 2533–2543.

4. SuzukiY, OrellanaMA, SchreiberRD, RemingtonJS (1988) Interferon-gamma: the major mediator of resistance against Toxoplasma gondii. Science 240: 516–518.

5. GazzinelliR, XuY, HienyS, CheeverA, SherA (1992) Simultaneous depletion of CD4+ and CD8+ T lymphocytes is required to reactivate chronic infection with Toxoplasma gondii. Journal of immunology 149: 175–180.

6. GoldszmidRS, SherA (2010) Processing and presentation of antigens derived from intracellular protozoan parasites. Current opinion in immunology 22: 118–123.

7. DupontCD, ChristianDA, HunterCA (2012) Immune response and immunopathology during toxoplasmosis. Seminars in immunopathology 34: 793–813.

8. BrodeS, MacaryPA (2004) Cross-presentation: dendritic cells and macrophages bite off more than they can chew!. Immunology 112: 345–351.

9. SteinmanRM, HawigerD, NussenzweigMC (2003) Tolerogenic dendritic cells. Annual review of immunology 21: 685–711.

10. JohnB, HarrisTH, TaitED, WilsonEH, GreggB, et al. (2009) Dynamic Imaging of CD8(+) T cells and dendritic cells during infection with Toxoplasma gondii. PLoS Pathog 5: e1000505.

11. ChtanovaT, HanSJ, SchaefferM, van DoorenGG, HerzmarkP, et al. (2009) Dynamics of T cell, antigen-presenting cell, and pathogen interactions during recall responses in the lymph node. Immunity 31: 342–355.

12. GoldszmidRS, CoppensI, LevA, CasparP, MellmanI, et al. (2009) Host ER-parasitophorous vacuole interaction provides a route of entry for antigen cross-presentation in Toxoplasma gondii-infected dendritic cells. J Exp Med 206: 399–410.

13. DzierszinskiF, PepperM, StumhoferJS, LaRosaDF, WilsonEH, et al. (2007) Presentation of Toxoplasma gondii antigens via the endogenous major histocompatibility complex class I pathway in nonprofessional and professional antigen-presenting cells. Infect Immun 75: 5200–5209.

14. GubbelsMJ, StriepenB, ShastriN, TurkozM, RobeyEA (2005) Class I major histocompatibility complex presentation of antigens that escape from the parasitophorous vacuole of Toxoplasma gondii. Infection and immunity 73: 703–711.

15. DenkersEY, YapG, Scharton-KerstenT, CharestH, ButcherBA, et al. (1997) Perforin-mediated cytolysis plays a limited role in host resistance to Toxoplasma gondii. Journal of immunology 159: 1903–1908.

16. LuderCG, LangT, BeuerleB, GrossU (1998) Down-regulation of MHC class II molecules and inability to up-regulate class I molecules in murine macrophages after infection with Toxoplasma gondii. Clinical and experimental immunology 112: 308–316.

17. LuderCG, WalterW, BeuerleB, MaeurerMJ, GrossU (2001) Toxoplasma gondii down-regulates MHC class II gene expression and antigen presentation by murine macrophages via interference with nuclear translocation of STAT1alpha. European journal of immunology 31: 1475–1484.

18. McKeeAS, DzierszinskiF, BoesM, RoosDS, PearceEJ (2004) Functional inactivation of immature dendritic cells by the intracellular parasite Toxoplasma gondii. J Immunol 173: 2632–2640.

19. NeefjesJ, JongsmaML, PaulP, BakkeO (2011) Towards a systems understanding of MHC class I and MHC class II antigen presentation. Nature reviews Immunology 11: 823–836.

20. DongreAR, KovatsS, deRoosP, McCormackAL, NakagawaT, et al. (2001) In vivo MHC class II presentation of cytosolic proteins revealed by rapid automated tandem mass spectrometry and functional analyses. European journal of immunology 31: 1485–1494.

21. NuchternJG, BiddisonWE, KlausnerRD (1990) Class II MHC molecules can use the endogenous pathway of antigen presentation. Nature 343: 74–76.

22. MalnatiMS, MartiM, LaVauteT, JaraquemadaD, BiddisonW, et al. (1992) Processing pathways for presentation of cytosolic antigen to MHC class II-restricted T cells. Nature 357: 702–704.

23. PaludanC, SchmidD, LandthalerM, VockerodtM, KubeD, et al. (2005) Endogenous MHC class II processing of a viral nuclear antigen after autophagy. Science 307: 593–596.

24. NimmerjahnF, MilosevicS, BehrendsU, JaffeeEM, PardollDM, et al. (2003) Major histocompatibility complex class II-restricted presentation of a cytosolic antigen by autophagy. European journal of immunology 33: 1250–1259.

25. BonifazLC, ArzateS, MorenoJ (1999) Endogenous and exogenous forms of the same antigen are processed from different pools to bind MHC class II molecules in endocytic compartments. European journal of immunology 29: 119–131.

26. AichingerG, KarlssonL, JacksonMR, VestbergM, VaughanJH, et al. (1997) Major histocompatibility complex class II-dependent unfolding, transport, and degradation of endogenous proteins. The Journal of biological chemistry 272: 29127–29136.

27. JaraquemadaD, MartiM, LongEO (1990) An endogenous processing pathway in vaccinia virus-infected cells for presentation of cytoplasmic antigens to class II-restricted T cells. The Journal of experimental medicine 172: 947–954.

28. WeissS, BogenB (1991) MHC class II-restricted presentation of intracellular antigen. Cell 64: 767–776.

29. LichJD, ElliottJF, BlumJS (2000) Cytoplasmic processing is a prerequisite for presentation of an endogenous antigen by major histocompatibility complex class II proteins. The Journal of experimental medicine 191: 1513–1524.

30. IwasakiA, MedzhitovR (2010) Regulation of adaptive immunity by the innate immune system. Science 327: 291–295.

31. FoxBA, BzikDJ (2002) De novo pyrimidine biosynthesis is required for virulence of Toxoplasma gondii. Nature 415: 926–929.

32. WilsonDC, MatthewsS, YapGS (2008) IL-12 signaling drives CD8+ T cell IFN-gamma production and differentiation of KLRG1+ effector subpopulations during Toxoplasma gondii Infection. J Immunol 180: 5935–5945.

33. WilsonDC, GrotenbregGM, LiuK, ZhaoY, FrickelEM, et al. (2010) Differential regulation of effector- and central-memory responses to Toxoplasma gondii Infection by IL-12 revealed by tracking of Tgd057-specific CD8+ T cells. PLoS Pathog 6: e1000815.

34. SafferLD, Long KrugSA, SchwartzmanJD (1989) The role of phospholipase in host cell penetration by Toxoplasma gondii. The American journal of tropical medicine and hygiene 40: 145–149.

35. RavindranS, LodoenMB, VerhelstSH, BogyoM, BoothroydJC (2009) 4-Bromophenacyl bromide specifically inhibits rhoptry secretion during Toxoplasma invasion. PloS one 4: e8143.

36. MorgadoP, OngYC, BoothroydJC, LodoenMB (2011) Toxoplasma gondii induces B7-2 expression through activation of JNK signal transduction. Infection and immunity 79: 4401–4412.

37. ChikteS, PanchalN, WarnesG (2013) Use of LysoTracker dyes: A flow cytometric study of autophagy. Cytometry Part A : the journal of the International Society for Analytical Cytology 85(2): 169–78.

38. JordanKA, WilsonEH, TaitED, FoxBA, RoosDS, et al. (2009) Kinetics and phenotype of vaccine-induced CD8+ T-cell responses to Toxoplasma gondii. Infection and immunity 77: 3894–3901.

39. HowardJC, HunnJP, SteinfeldtT (2011) The IRG protein-based resistance mechanism in mice and its relation to virulence in Toxoplasma gondii. Current opinion in microbiology 14: 414–421.

40. LingYM, ShawMH, AyalaC, CoppensI, TaylorGA, et al. (2006) Vacuolar and plasma membrane stripping and autophagic elimination of Toxoplasma gondii in primed effector macrophages. The Journal of experimental medicine 203: 2063–2071.

41. MartensS, ParvanovaI, ZerrahnJ, GriffithsG, SchellG, et al. (2005) Disruption of Toxoplasma gondii parasitophorous vacuoles by the mouse p47-resistance GTPases. PLoS pathogens 1: e24.

42. GigleyJP, FoxBA, BzikDJ (2009) Cell-mediated immunity to Toxoplasma gondii develops primarily by local Th1 host immune responses in the absence of parasite replication. J Immunol 182: 1069–1078.

43. ParraD, RiegerAM, LiJ, ZhangYA, RandallLM, et al. (2012) Pivotal advance: peritoneal cavity B-1 B cells have phagocytic and microbicidal capacities and present phagocytosed antigen to CD4+ T cells. Journal of leukocyte biology 91: 525–536.

44. GoldszmidRS, CasparP, RivollierA, WhiteS, DzutsevA, et al. (2012) NK cell-derived interferon-gamma orchestrates cellular dynamics and the differentiation of monocytes into dendritic cells at the site of infection. Immunity 36: 1047–1059.

45. JungS, UnutmazD, WongP, SanoG, De los SantosK, et al. (2002) In vivo depletion of CD11c+ dendritic cells abrogates priming of CD8+ T cells by exogenous cell-associated antigens. Immunity 17: 211–220.

46. PepperM, PaganAJ, IgyartoBZ, TaylorJJ, JenkinsMK (2011) Opposing signals from the Bcl6 transcription factor and the interleukin-2 receptor generate T helper 1 central and effector memory cells. Immunity 35: 583–595.

47. GroverHS, BlanchardN, GonzalezF, ChanS, RobeyEA, et al. (2012) The Toxoplasma gondii peptide AS15 elicits CD4 T cells that can control parasite burden. Infection and immunity 80: 3279–3288.

48. RaiD, PhamNL, HartyJT, BadovinacVP (2009) Tracking the total CD8 T cell response to infection reveals substantial discordance in magnitude and kinetics between inbred and outbred hosts. Journal of immunology 183: 7672–7681.

49. McDermottDS, VargaSM (2011) Quantifying antigen-specific CD4 T cells during a viral infection: CD4 T cell responses are larger than we think. Journal of immunology 187: 5568–5576.

50. ScholzenT, GerdesJ (2000) The Ki-67 protein: from the known and the unknown. Journal of cellular physiology 182: 311–322.

51. McKennaHJ, StockingKL, MillerRE, BraselK, De SmedtT, et al. (2000) Mice lacking flt3 ligand have deficient hematopoiesis affecting hematopoietic progenitor cells, dendritic cells, and natural killer cells. Blood 95: 3489–3497.

52. HildnerK, EdelsonBT, PurthaWE, DiamondM, MatsushitaH, et al. (2008) Batf3 deficiency reveals a critical role for CD8alpha+ dendritic cells in cytotoxic T cell immunity. Science 322: 1097–1100.

53. DunayIR, FuchsA, SibleyLD (2010) Inflammatory monocytes but not neutrophils are necessary to control infection with Toxoplasma gondii in mice. Infect Immun 78: 1564–1570.

54. SavinaA, JancicC, HuguesS, GuermonprezP, VargasP, et al. (2006) NOX2 controls phagosomal pH to regulate antigen processing during crosspresentation by dendritic cells. Cell 126: 205–218.

55. SubausteCS, WessendarpM (2000) Human dendritic cells discriminate between viable and killed Toxoplasma gondii tachyzoites: dendritic cell activation after infection with viable parasites results in CD28 and CD40 ligand signaling that controls IL-12-dependent and -independent T cell production of IFN-gamma. Journal of immunology 165: 1498–1505.

56. SeiderK, HeykenA, LuttichA, MiramonP, HubeB (2010) Interaction of pathogenic yeasts with phagocytes: survival, persistence and escape. Current opinion in microbiology 13: 392–400.

57. ShinS, RoyCR (2008) Host cell processes that influence the intracellular survival of Legionella pneumophila. Cellular microbiology 10: 1209–1220.

58. RohdeK, YatesRM, PurdyGE, RussellDG (2007) Mycobacterium tuberculosis and the environment within the phagosome. Immunological reviews 219: 37–54.

59. da SilvaCV, CruzL, Araujo NdaS, AngeloniMB, FonsecaBB, et al. (2012) A glance at Listeria and Salmonella cell invasion: different strategies to promote host actin polymerization. International journal of medical microbiology : IJMM 302: 19–32.

60. DunnJD, ValdiviaRH (2010) Uncivil engineers: Chlamydia, Salmonella and Shigella alter cytoskeleton architecture to invade epithelial cells. Future microbiology 5: 1219–1232.

61. RomanoPS, CuetoJA, CasassaAF, VanrellMC, GottliebRA, et al. (2012) Molecular and cellular mechanisms involved in the Trypanosoma cruzi/host cell interplay. IUBMB life 64: 387–396.

62. OverstreetMG, CockburnIA, ChenYC, ZavalaF (2008) Protective CD8 T cells against Plasmodium liver stages: immunobiology of an ‘unnatural’ immune response. Immunological reviews 225: 272–283.

63. LangC, AlgnerM, BeinertN, GrossU, LuderCG (2006) Diverse mechanisms employed by Toxoplasma gondii to inhibit IFN-gamma-induced major histocompatibility complex class II gene expression. Microbes and infection/Institut Pasteur 8: 1994–2005.

64. WalsengE, FurutaK, GoldszmidRS, WeihKA, SherA, et al. (2010) Dendritic cell activation prevents MHC class II ubiquitination and promotes MHC class II survival regardless of the activation stimulus. The Journal of biological chemistry 285: 41749–41754.

65. SubausteCS, de Waal MalefytR, FuhF (1998) Role of CD80 (B7.1) and CD86 (B7.2) in the immune response to an intracellular pathogen. Journal of immunology 160: 1831–1840.

66. BairdJR, FoxBA, SandersKL, LizottePH, Cubillos-RuizJR, et al. (2013) Avirulent Toxoplasma gondii generates therapeutic antitumor immunity by reversing immunosuppression in the ovarian cancer microenvironment. Cancer research 73: 3842–3851.

67. Mourao-SaD, RoyS, BlanderJM (2013) Vita-PAMPs: signatures of microbial viability. Advances in experimental medicine and biology 785: 1–8.

68. LambertH, HitzigerN, DellacasaI, SvenssonM, BarraganA (2006) Induction of dendritic cell migration upon Toxoplasma gondii infection potentiates parasite dissemination. Cellular microbiology 8: 1611–1623.

69. WeidnerJM, BarraganA (2013) Tightly regulated migratory subversion of immune cells promotes the dissemination of Toxoplasma gondii. International journal for parasitology 44(2): 85–90.

70. FuksJM, ArrighiRB, WeidnerJM, Kumar MenduS, JinZ, et al. (2012) GABAergic signaling is linked to a hypermigratory phenotype in dendritic cells infected by Toxoplasma gondii. PLoS pathogens 8: e1003051.

71. WeidnerJM, KanataniS, Hernandez-CastanedaMA, FuksJM, RethiB, et al. (2013) Rapid cytoskeleton remodelling in dendritic cells following invasion by Toxoplasma gondii coincides with the onset of a hypermigratory phenotype. Cellular microbiology 15: 1735–1752.

72. LambertH, Dellacasa-LindbergI, BarraganA (2011) Migratory responses of leukocytes infected with Toxoplasma gondii. Microbes and infection/Institut Pasteur 13: 96–102.

73. ZhaoYO, KhaminetsA, HunnJP, HowardJC (2009) Disruption of the Toxoplasma gondii parasitophorous vacuole by IFNgamma-inducible immunity-related GTPases (IRG proteins) triggers necrotic cell death. PLoS pathogens 5: e1000288.

74. ZhaoZ, FuxB, GoodwinM, DunayIR, StrongD, et al. (2008) Autophagosome-independent essential function for the autophagy protein Atg5 in cellular immunity to intracellular pathogens. Cell host & microbe 4: 458–469.

75. RomaoS, GannageM, MunzC (2013) Checking the garbage bin for problems in the house, or how autophagy assists in antigen presentation to the immune system. Seminars in cancer biology 23(5): 391–6.

76. KoshyAA, FoutsAE, LodoenMB, AlkanO, BlauHM, et al. (2010) Toxoplasma secreting Cre recombinase for analysis of host-parasite interactions. Nature methods 7: 307–309.

77. KoshyAA, DietrichHK, ChristianDA, MelehaniJH, ShastriAJ, et al. (2012) Toxoplasma co-opts host cells it does not invade. PLoS pathogens 8: e1002825.

78. GigleyJP, FoxBA, BzikDJ (2009) Long-term immunity to lethal acute or chronic type II Toxoplasma gondii infection is effectively induced in genetically susceptible C57BL/6 mice by immunization with an attenuated type I vaccine strain. Infect Immun 77: 5380–5388.

79. van HeijstJWJ, GerlachC, SwartE, SieD, Nunes-AlvesC, et al. (2009) Recruitment of Antigen-Specific CD8(+) T Cells in Response to Infection Is Markedly Efficient. Science 325: 1265–1269.

80. DreschC, LeverrierY, MarvelJ, ShortmanK (2012) Development of antigen cross-presentation capacity in dendritic cells. Trends in immunology 33: 381–388.

81. CurtsingerJM, MescherMF (2010) Inflammatory cytokines as a third signal for T cell activation. Current Opinion in Immunology 22: 333–340.

82. MoonJJ, HuangB, IrvineDJ (2012) Engineering nano- and microparticles to tune immunity. Advanced materials 24: 3724–3746.

83. WhitmarshRJ, GrayCM, GreggB, ChristianDA, MayMJ, et al. (2011) A critical role for SOCS3 in innate resistance to Toxoplasma gondii. Cell Host Microbe 10: 224–236.

84. PepperM, DzierszinskiF, CrawfordA, HunterCA, RoosD (2004) Development of a system to study CD4+-T-cell responses to transgenic ovalbumin-expressing Toxoplasma gondii during toxoplasmosis. Infect Immun 72: 7240–7246.

85. MessinaM, NiesmanI, MercierC, SibleyLD (1995) Stable DNA transformation of Toxoplasma gondii using phleomycin selection. Gene 165: 213–217.

86. HaqueA, GrailleM, KasperLH, HaqueS (1999) Immunization with heat-killed Toxoplasma gondii stimulates an early IFN-gamma response and induces protection against virulent murine malaria. Vaccine 17: 2604–2611.

87. RobbenPM, MordueDG, TruscottSM, TakedaK, AkiraS, et al. (2004) Production of IL-12 by macrophages infected with Toxoplasma gondii depends on the parasite genotype. Journal of immunology 172: 3686–3694.

88. BlasiE, RadziochD, MerlettiL, VaresioL (1989) Generation of macrophage cell line from fresh bone marrow cells with a myc/raf recombinant retrovirus. Cancer biochemistry biophysics 10: 303–317.

89. CurranMA, AllisonJP (2009) Tumor vaccines expressing flt3 ligand synergize with ctla-4 blockade to reject preimplanted tumors. Cancer research 69: 7747–7755.

90. MaraskovskyE, PulendranB, BraselK, TeepeM, RouxER, et al. (1997) Dramatic numerical increase of functionally mature dendritic cells in FLT3 ligand-treated mice. Advances in experimental medicine and biology 417: 33–40.

91. FentressSJ, BehnkeMS, DunayIR, MashayekhiM, RommereimLM, et al. (2010) Phosphorylation of immunity-related GTPases by a Toxoplasma gondii-secreted kinase promotes macrophage survival and virulence. Cell host & microbe 8: 484–495.

92. HenrySC, DaniellXG, BurroughsAR, IndaramM, HowellDN, et al. (2009) Balance of Irgm protein activities determines IFN-gamma-induced host defense. Journal of leukocyte biology 85: 877–885.

93. McIlvaineT (1921) A buffer solution for colorimetric comparaison. J Biol Chem 49: 183–186.

Štítky
Hygiena a epidemiologie Infekční lékařství Laboratoř

Článek vyšel v časopise

PLOS Pathogens


2014 Číslo 4

Nejčtenější v tomto čísle

Tomuto tématu se dále věnují…


Kurzy

Zvyšte si kvalifikaci online z pohodlí domova

Příběh jedlé sody
nový kurz
Autoři: MUDr. Ladislav Korábek, CSc., MBA

Krvácení v důsledku portální hypertenze při jaterní cirhóze – od pohledu záchranné služby až po závěrečný hepato-gastroenterologický pohled
Autoři: PhDr. Petr Jaššo, MBA, MUDr. Hynek Fiala, Ph.D., prof. MUDr. Radan Brůha, CSc., MUDr. Tomáš Fejfar, Ph.D., MUDr. David Astapenko, Ph.D., prof. MUDr. Vladimír Černý, Ph.D.

Rozšíření možností lokální terapie atopické dermatitidy v ordinaci praktického lékaře či alergologa
Autoři: MUDr. Nina Benáková, Ph.D.

Léčba bolesti v ordinaci praktického lékaře
Autoři: MUDr. PhDr. Zdeňka Nováková, Ph.D.

Revmatoidní artritida: včas a k cíli
Autoři: MUDr. Heřman Mann

Všechny kurzy
Kurzy Soutěž Doporučená témata Časopisy
Přihlášení
Zapomenuté heslo

Nemáte účet?  Registrujte se

Zapomenuté heslo

Zadejte e-mailovou adresu se kterou jste vytvářel(a) účet, budou Vám na ni zaslány informace k nastavení nového hesla.

Přihlášení

Nemáte účet?  Registrujte se
