Multimer Formation Explains Allelic Suppression of PRDM9 Recombination Hotspots

During formation of sperm and eggs chromosomes exchange DNA in a process known as recombination, creating new combinations responsible for much of the enormous diversity in populations. In some mammals, including humans, the locations of recombination are chosen by a DNA-binding protein named PRDM9. Importantly, there are tens to hundreds of different variations of the Prdm9 gene (termed alleles), many of which are predicted to bind a unique DNA sequence. This high frequency of variation results in many individuals having two different copies of Prdm9, and several lines of evidence indicate that alleles compete to initiate recombination. In seeking to understand the mechanism of this competition we found that Prdm9 activity is sensitive to the number of gene copies present, suggesting that availability of this protein is a limiting factor during recombination. Moreover, we found that variant forms of PRDM9 protein can physically interact suggesting that when this happens one variant can influence which hotspots will become activated. Genetic crosses in mice support these observations; the presence of a dominant Prdm9 allele can completely suppress recombination at some locations. We conclude that allele-dominance of PRDM9 is a consequence of protein-protein interaction and competition for DNA binding in a limited pool of molecules, thus shaping the recombination landscape in natural populations.

Published in the journal: . PLoS Genet 11(9): e32767. doi:10.1371/journal.pgen.1005512
Category: Research Article
doi: 10.1371/journal.pgen.1005512


During formation of sperm and eggs chromosomes exchange DNA in a process known as recombination, creating new combinations responsible for much of the enormous diversity in populations. In some mammals, including humans, the locations of recombination are chosen by a DNA-binding protein named PRDM9. Importantly, there are tens to hundreds of different variations of the Prdm9 gene (termed alleles), many of which are predicted to bind a unique DNA sequence. This high frequency of variation results in many individuals having two different copies of Prdm9, and several lines of evidence indicate that alleles compete to initiate recombination. In seeking to understand the mechanism of this competition we found that Prdm9 activity is sensitive to the number of gene copies present, suggesting that availability of this protein is a limiting factor during recombination. Moreover, we found that variant forms of PRDM9 protein can physically interact suggesting that when this happens one variant can influence which hotspots will become activated. Genetic crosses in mice support these observations; the presence of a dominant Prdm9 allele can completely suppress recombination at some locations. We conclude that allele-dominance of PRDM9 is a consequence of protein-protein interaction and competition for DNA binding in a limited pool of molecules, thus shaping the recombination landscape in natural populations.


Genetic recombination in mammals is restricted to hotspots: short, 1–2 kb-long sites scattered throughout the genome [1,2]. With the exception of canids [3,4], their locations in mammals are determined by the sequence-specific DNA binding protein, PRDM9 (MGI:2384854) [5,6,7]. PRDM9 initiates recombination by binding DNA at hotspots where it locally trimethylates histone H3 at lysine 4 (H3K4me3) using a conserved PR/SET domain [8,9,10,11]. This signals the correct locations of programmed meiotic double-strand breaks (DSB) that are required for the physical exchange of material between homologous chromatids during meiosis and the eventual formation of genetic crossovers and noncrossovers [9,10,12].

Prdm9 function is essential for meiosis; null alleles lead to sterility in both sexes of mice [13], and point mutations in PRDM9 are found in azoospermic human patients [14,15]. In addition, Prdm9 is a key player in evolution by creating hybrid sterility. Male intersubspecific F1 hybrid mice that are heterozygous for particular Prdm9 alleles and carry the M. m. musculus-derived chromosome (Chr) X are infertile, thus creating postmating reproductive barriers that contribute to incipient speciation [16].

Prdm9/PRDM9 is highly polymorphic, both within and between mammalian species. This includes humans [5,6,7,17,18,19], mice [5,7,9,20], chimps [21,22,23], cattle [24], and equids [25], which all harbor diverse alleles of Prdm9. Most of the naturally occurring sequence polymorphisms in Prdm9 change the identity of the amino acids contacting DNA and/or the number and arrangement of individual fingers in the DNA-binding zinc-finger domains. This allows PRDM9 variants to target a large number of DNA sequences, thereby expanding the distribution of recombination sites.

Three laboratories simultaneously came to the identification of PRDM9 as the key protein determining the location of mammalian hotspots [5,6,7]. In our case, we identified hotspots in genetic crosses between C57BL/6J (B6) and CAST/EiJ (CAST) mice whose activation depended on a trans-acting factor [26]. Genetic mapping identified the key factor as the CAST allele of Prdm9 [7]. Importantly, the same experiments also identified hotspots whose activities were quantitatively reduced rather than activated by the presence of CAST alleles, and others whose activities were completely suppressed. Similar variation in recombination rates has been observed at human hotspots depending on the identities and combinations of PRDM9 alleles present [17,18,27].

These observations coincide with previous evidence that Prdm9 alleles in heterozygous individuals do not show simple additive behavior. In both humans [28,29] and mice [10,30] there is allelic dominance in which a predominance of hotspots in heterozygotes are activated by one of the alleles present. This phenomenon is of considerable biological importance given the extensive polymorphism of Prdm9 and that heterozygotes represent a considerable majority of some natural populations.

Together, the available evidence indicates a complex regulation of hotspot activity in heterozygous individuals. However, little is known of the specific mechanisms and molecular players involved in hotspot suppression and the observed competition between Prdm9 alleles. Here we report that both of these observations are the functional consequence of a direct interaction between PRDM9 protein variants in a limited pool of PRDM9 molecules in meiotic cells. Using genetic strategies, we now show that, while Prdm9 is required for activation of hotspots, it is also the trans-acting factor responsible for the quantitative modulation of recombination rate and allelic dominance in heterozygous mice. In cell cultures, we show that PRDM9 protein variants form both homo- and heteromeric complexes, and that heteromeric complexes bind and trimethylate nucleosomes at hotspot DNA sequences. We find that Prdm9 function is dosage-sensitive; in heterozygous male Prdm9+/- null mice, where Prdm9 is present in a single copy, the numbers and activity of PRDM9-defined H3K4me3 hotspots are reduced and animals have increased abnormalities in meiotic prophase I. In addition, replacing the null allele with one from a different mouse subspecies is sufficient to fully suppress recombination at some hotspots, suggesting direct interaction between protein variants.

Taken together, the data point to a model in which quantitative activity at recombination hotspots is partially controlled through PRDM9 occupancy at hotspots, which in turn is dependent on both the number of PRDM9 molecules available in meiotic cells and the DNA-binding affinity of each allele. Our data suggests that in heterozygous individuals, PRDM9 forms heteromers that preferentially bind to and activate recombination at the stronger allele’s hotspots, thereby suppressing recombination at hotspots otherwise activated by the weaker allele.


QTL analysis implicates Prdm9 in controlling the recombination rate of hotspot Pbx1

To determine factors regulating recombination rate, we first focused on the hotspot Pbx1, as evidence indicates that genetic background has a strong effect on the recombination rate at this hotspot in mice [26]. Pbx1 has a sex-averaged recombination rate of 2.38 cM in the B6 background, but shows a significant 5.8-fold down-regulation when CAST alleles are introduced in (B6xCAST)F1 hybrids (0.41 cM, Fisher’s exact test p < 10−4) [31]. To genetically map factors controlling the quantitative activity of Pbx1 we used N2 and F2 mapping crosses (S1A Fig) that allowed us to detect the influence of dominant, recessive or additive alleles [26]. We collected 49 N2 and 75 F2 males heterozygous for B6/CAST on distal 100 Mb on Chr 1, the region containing the Pbx1 hotspot, genotyped them at 165 markers spaced across the genome, and isolated their sperm DNA to measure the recombination rate at Pbx1. Crossing over at Pbx1 was determined using a DNA sequencing assay that takes advantage of SNPs located on either side of the hotspot and counts the number of recombinant and parental molecules in sperm samples (S1B Fig). Comparing the frequencies of parental and recombinant molecules from many thousands of individual sperm (each representing a potential offspring) provided a measure of recombination rates at Pbx1 in individual male mice.

Using the recombination rate at Pbx1 as our phenotype, genome scans performed on individual crosses, and pooled data from both crosses, resulted in a single significant QTL peak on proximal Chr 17 (Figs 1A, S2A and S2B). The 1.5-LOD support interval for this QTL is from ~4–30 Mb along Chr 17, with the approximate QTL located around 14 Mb. Mice homozygous for B6 at Chr 17 had the highest rate of recombination; heterozygous mice had an intermediate level of recombination, and mice homozygous for CAST had the lowest (Fig 1B). This pattern suggests an additive effect of the QTL dependent on the B6 haplotype on Chr 17.

A QTL on proximal Chr 17 influences the recombination rate at <i>Pbx1</i>.

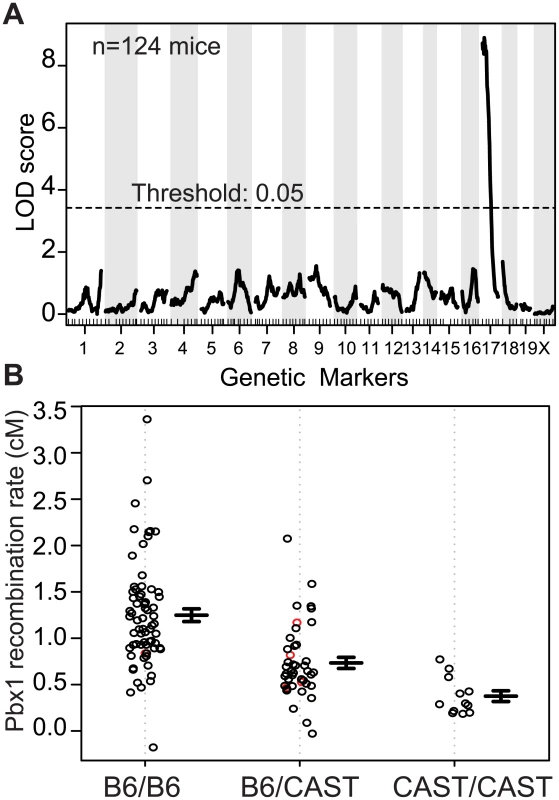

Fig. 1. A QTL on proximal Chr 17 influences the recombination rate at Pbx1.
(A) Manhattan plot showing the result of a single QTL scan from data pooled from N2 and F2 crosses (LOD score = 8.9, threshold determined by permutation). (B) Effect plot showing recombination rate at Pbx1 from individual mice based on the genotype at the QTL on proximal Chr 17 (red circles, imputed genotypes; error bars, standard error).

The position of the QTL on Chr 17 implicates Prdm9 in regulating recombination at the Pbx1 hotspot. Prdm9 is located on Chr 17 at 15.5 Mb, is currently the only known recombination regulator locus in mice, and B6 and CAST mice carry two different Prdm9 alleles (Prdm9Dom2 and Prdm9Cst respectively) [7,26]. Furthermore, the PRDM9Dom2 protein variant, found in B6 mice where Pbx1 is active, shows binding to the Pbx1 DNA sequence in vitro and regulates H3K4me3 level in the surrounding region in vivo [31]. The QTL analysis above suggests that Prdm9 is also a modifier of recombination rate at Pbx1; two copies of Prdm9Dom2 result in a higher recombination rate at Pbx1 compared to one copy. The apparent low recombination rate in homozygous CAST at the QTL locus mice is largely a measure of the frequency of false-recombinants (see methods). To test for the presence of additional modifiers of hotspot activity, we conditioned on the identity of the Prdm9 allele present by selecting the set of N2 and F2 mice that were homozygous Prdm9Dom2/Dom2 and performed an additional genome scan on these mice alone; however, we did not detect any other significant QTLs (S2C Fig).

Expression of PRDM9 in HEK293 cells leads to allele-specific H3K4me3 at hotspots

The genetic evidence above suggests that PRDM9 activation of hotspots is sensitive to Prdm9 dosage, indicating that PRDM9 is limiting in meiotic cells, or sensitive to competition between alleles. A plausible molecular mechanism by which two alleles can directly influence each other is through their physical interaction [28,29]. To test if this is the case and PRDM9 interacts with itself, we cloned both the human PRDM9A allele, the primary allele found in humans from European ancestry, and the PRDM9C allele, more prevalent in populations with African ancestry [7,18], for expression in cultured human HEK293 cells similar to previous reports [32,33].

Expressing PRDM9 in cultured HEK293 cells resulted in a significant increase in total H3K4me3 levels, which depended on the conserved PR/SET methyltransferase domain present in PRDM9 (Fig 2A), similar to results previously described [13,33]. In order to test if PRDM9 retains DNA-binding specificity in HEK293 cells we expressed PRDM9A, PRDM9C, or empty vector and performed ChIP for H3K4me3. Several human hotspots have previously been characterized as being responsive to either PRDM9A (for example hotspots S and F) or PRDM9C (hotspots 5A and 22A) by measuring recombination in pooled sperm samples [17,18]. We found that expression of either PRDM9A or PRDM9C in HEK293 cells resulted in increased H3K4me3 levels at the center of these hotspots in an allele-specific manner as measured by qPCR (Fig 2B and 2C).

Expression of <i>PRDM9</i> in HEK293 cells recapitulates allele-specific hotspot activation in vivo.

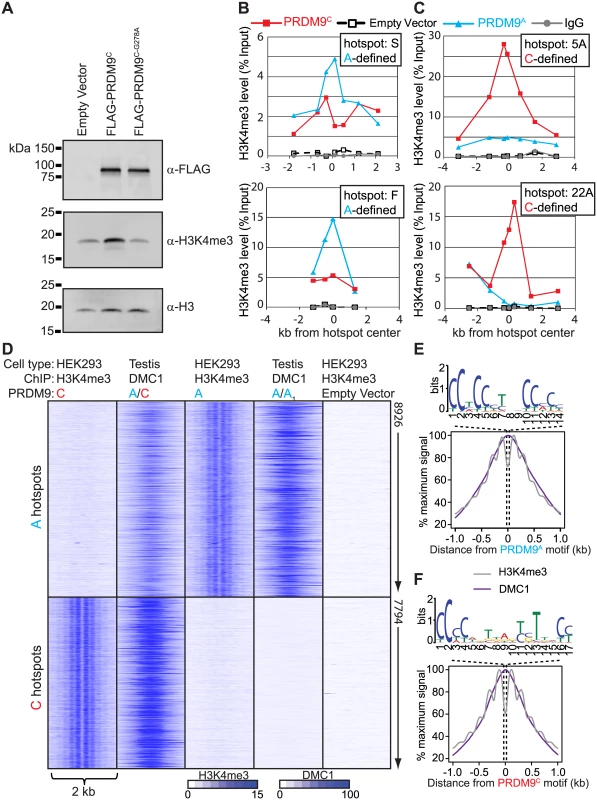

Fig. 2. Expression of PRDM9 in HEK293 cells recapitulates allele-specific hotspot activation in vivo.
(A) Western blot showing that expression of PRDM9 in HEK293 cells increases global H3K4me3 levels dependent on the PR/SET domain. (B) and (C) qPCR was performed on enriched DNA from ChIP against H3K4me3 at various intervals across the hotspots indicated by the position of the symbols after expression of PRDM9 protein variants. (B) PRDM9A-defined recombination hotspots S and F have increased H3K4me3 after expression of PRDM9A. (C) PRDM9C-defined recombination hotpots 5A and 22A are enriched for H3K4me3 after expression of PRDM9C. (D) Expression of PRDM9 in HEK293 cells results in allele-specific H3K4me3 at in vivo DSB hotspots. Heat map of H3K4me3 ChIP-seq (HEK293 cells) and DMC1 SSDS (men) signals for a 2 kb window centered on PRDM9 motifs. DMC1 SSDS data from [28]. (E) Aggregate plot of H3K4me3 (grey) and DMC1 (purple) signals from A-hotspots after expression of PRDM9A. PRDM9A motif derived from the hotspot nucleosome-depleted regions is shown above. (F) Similar to E except showing the result for PRDM9C.

To identify genome-wide PRDM9-defined H3K4me3 sites we used ChIP DNA for deep sequencing, for each allele, and compared these H3K4me3 maps to the recently published genome-wide position of meiotic DSBs identified by chromatin immunoprecipitation of the meiotic recombinase DMC1 from men (S3 Fig and S1 Table, DMC1 SSDS data available at GEO: GSE59836) [28]. DSB hotspots were classified as PRDM9C-defined if they were uniquely identified in the DMC1 SSDS data from the heterozygous A/C individual but not found in the homozygous A/A1 individual (S3B Fig). For both alleles, approximately one-third of unique allele-specific H3K4me3 sites identified here in HEK293 cells overlap with DSB hotspots identified in testis (S3C and S3D Fig). To visualize allele-specificity, heat maps were generated for each H3K4me3 ChIP and DMC1 ChIP data set at shared hotspots by aligning the position of identified PRDM9 motifs (Fig 2D). H3K4me3 signal at PRDM9C-defined DSB hotspots was increased only after expression of PRDM9C but not after expression of PRDM9A or in empty vector controls. Similarly, expression of PRDM9A in HEK293 cells resulted in increased H3K4me3 only at PRDM9A-defined hotspots. H3K4me3 signal is readily detected at promoter regions, including empty vector control, highlighting the PRDM9-defined H3K4me3 at hotspots (S4 Fig). For both PRDM9 alleles, H3K4me3 modified nucleosomes are organized in a symmetrical pattern around a central PRDM9 sequence motif as previously seen in mouse germ cells [9], near the maximum signal of DSB intensity found from testis (Fig 2E and 2F). These data show that ectopically expressed PRDM9 can bind and modify chromatin at hotspot sequences in somatic cells in an allele-specific manner.

PRDM9 can form heteromeric complexes at hotspots

To examine if PRDM9 can interact with itself, we assessed interaction between these two human alleles in HEK293 cells. Both alleles were cloned to contain either an N-terminal FLAG or N-terminal V5 epitope tag to facilitate detection and allow discrimination of protein variants. Both the FLAG- and V5-tagged versions of each PRDM9 allele were expressed, either separately or together, in HEK293 cells (Fig 3A). Immunoprecipitation using the FLAG monoclonal antibody directed against FLAG-PRDM9A or FLAG-PRDM9C showed an enrichment for the V5-tagged PRDM9C only when the two proteins were co-expressed (Fig 3A, lanes 11 and 12). Likewise, reciprocal immunoprecipitation with V5-PRDM9C displayed the same result, as it enriched for both FLAG-PRDM9 protein variants (Fig 3A, lanes 17 and 18). These data show that PRDM9 can form both homo- and heteromeric protein complexes when co-expressed.

PRDM9 can form heteromeric complexes at hotspots.

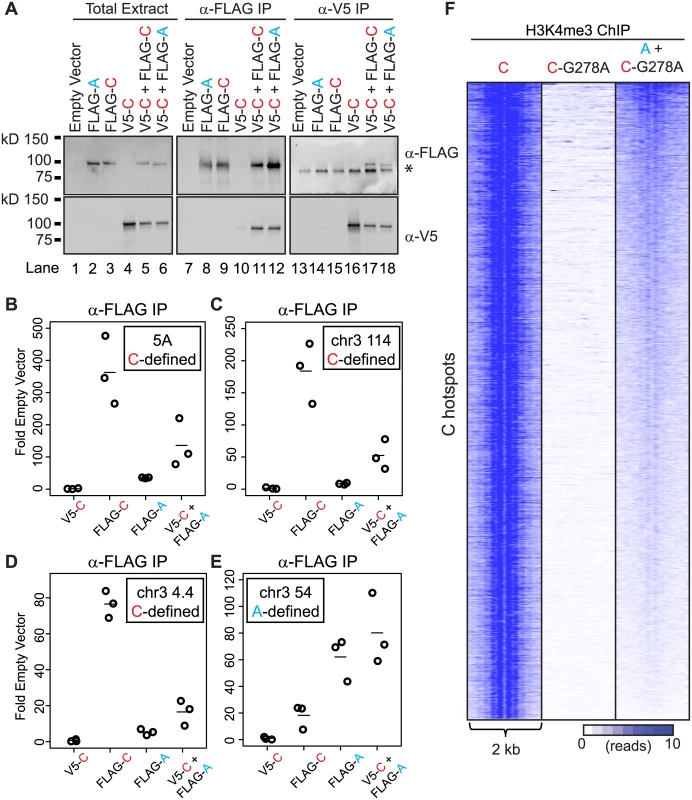

Fig. 3. PRDM9 can form heteromeric complexes at hotspots.
(A) PRDM9 protein variants can form homo- and heteromeric complexes. Western blot of various tagged versions of human PRDM9 detected either with anti-FLAG or anti-V5 antibodies (asterisk—non-specific band). V5-PRDM9C (V5-C) is found in association with FLAG-PRDM9A (FLAG-A) or FLAG-PRDM9C (FLAG-C) after FLAG or V5 IP. (B) PRDM9A is bound to the PRDM9C-activated hotspot 5A when co-expressed with PRDM9C. Tagged PRDM9 alleles, indicated on the x-axis, were transfected into HEK293 cells and subsequently subjected to ChIP against FLAG antibody; qPCR was performed on ChIP DNA samples at the center of the 5A hotspot (circles—individual biological replicates, lines—mean). (C) and (D) Similar to B showing ChIP results for PRDM9C-activated hotspots at Chr 3 114 Mb and Chr 3 4 Mb respectively. (E) PRDM9A can bind A-hotspots. Similar to B-D showing ChIP results for PRDM9A-activated hotspot at Chr 3 54 Mb. (F) PRDM9A can trimethylate C hotspots when in complex with PRDM9C. Heat map of H3K4me3 ChIP-seq read counts from HEK293 cells for a 2 kb window surrounding PRDM9C hotspots from Fig 2D.

A macromolecular complex containing two PRDM9 protein variants would have two distinct zinc-finger arrays, with the potential capability to bind two motifs. This predicts that in cells expressing two PRDM9 alleles, the non-activating protein variant might be found at hotspots at which it does not typically bind. For example, human PRDM9A would be found at a C-defined hotspot only when in a heteromeric complex with PRDM9C. To test for the presence of heteromeric complexes at hotspots, we expressed V5-PRDM9C, FLAG-PRDM9C, and FLAG-PRDM9A alone, or co-expressed V5-PRDM9C and FLAG-PRDM9A together, and tested for their presence at several C- and A-defined hotspots using ChIP (Figs 3B–3E and S5). As expected, expression of FLAG-tagged PRDM9C (FLAG-C) resulted in enrichment for DNA at C-hotspots following immunoprecipitation using anti-FLAG antibody (Fig 3B, 3C and 3D); while expression of FLAG-PRDM9A (FLAG-A) did not. In addition, using anti-FLAG antibody there was no enrichment for C-hotspots after expression of V5-PRDM9C (V5-C), showing antibody specificity. The lack of PRDM9A signal at C-defined hotspots is not due to inactivity of the protein variant, as PRDM9A can readily bind to an A-hotspot (Fig 3E). Importantly, there were increases in enrichment at C-defined hotspots when co-expressing FLAG-PRDM9A along with V5-PRDM9C (V5-C + FLAG-A) compared to either protein expressed alone (Fig 3B, 3C and 3D). Thus PRDM9A, which does not bind to or modify C-defined hotspots alone, is nevertheless found at C-hotspots when co-expressed with PRDM9C, a situation potentially similar to heterozygous individuals.

Given that in heteromeric complexes at least two PRDM9 molecules can be found at hotspot sequences, we wanted to test if the protein variant that does not bind DNA can still catalytically function to modify hotspot nucleosomes. To do so we expressed the catalytically-dead FLAG-PRDM9C-G278A alone or co-expressed FLAG-PRDM9C-G278A with V5-PRDM9A and performed ChIP for H3K4me3 (Fig 3F). As expected, expression of FLAG-PRDM9C-G278A alone did not lead to H3K4me3 at C-hotspots. However, when co-expressed with a functional V5-PRDM9A protein variant, C-defined hotspots had a clear, albeit weak, H3K4me3 signal and organized the nucleosome pattern at these hotspots. These data show that bringing together a functional PR/SET domain of one allele, with the zinc-finger DNA-binding domain of a different allele, is sufficient to mark hotspots.

Together, these data provide strong evidence for the formation of functional heteromeric complexes that can bind and modify hotspots.

B6-Prdm9Dom2/- males have reduced H3K4me3 hotspots and display mild meiotic arrest compared to B6

The above cell culture data show that two PRDM9 variants can be found in the same protein complex bound at hotspot DNA sequences. If PRDM9 activity is limiting in meiotic cells, the two protein variants might directly compete for hotspot activation in heterozygous individuals by influencing which allele’s hotspots the heteromeric complexes bind. To investigate if PRDM9 activity is limiting in meiotic cells we next characterized mice made heterozygous null at Prdm9.

To test the effect of lowered Prdm9 dosage on hotspots in vivo, we measured genome-wide H3K4me3 levels in male germ cells from mice heterozygous for the targeted null allele Prdm9tm1Ymat (B6-Prdm9Dom2/-) and compared them to those from homozygous B6 (Prdm9Dom2/Dom2). B6-Prdm9Dom2/- males have reduced level of PRDM9 protein compared to homozygous littermates [30,34], suggesting reduced availability of the catalytic domain. Using H3K4me3 ChIP-seq we identified approximately half the number of detectable H3K4me3 hotspots seen in mice with two copies of Prdm9Dom2. Among 97,117 total H3K4me3 peaks identified in B6-Prdm9Dom2/- germ cells, 9,707 were associated with PRDM9Dom2-defined H3K4me3 hotspots, the remainder being associated with promoters and other functional elements. This is in contrast to nearly twice as many H3K4me3 hotspots previously measured in Prdm9Dom2/Dom2 mice (18,849) [9]. The PRDM9-defined H3K4me3 hotspots identified in the heterozygous null mice correspond to those with the highest level of H3K4me3 in homozygous B6 (Fig 4A).

<i>Prdm9</i> activity is dosage-sensitive for H3K4me3 levels and partially haploinsufficient for male meiotic progress in vivo.

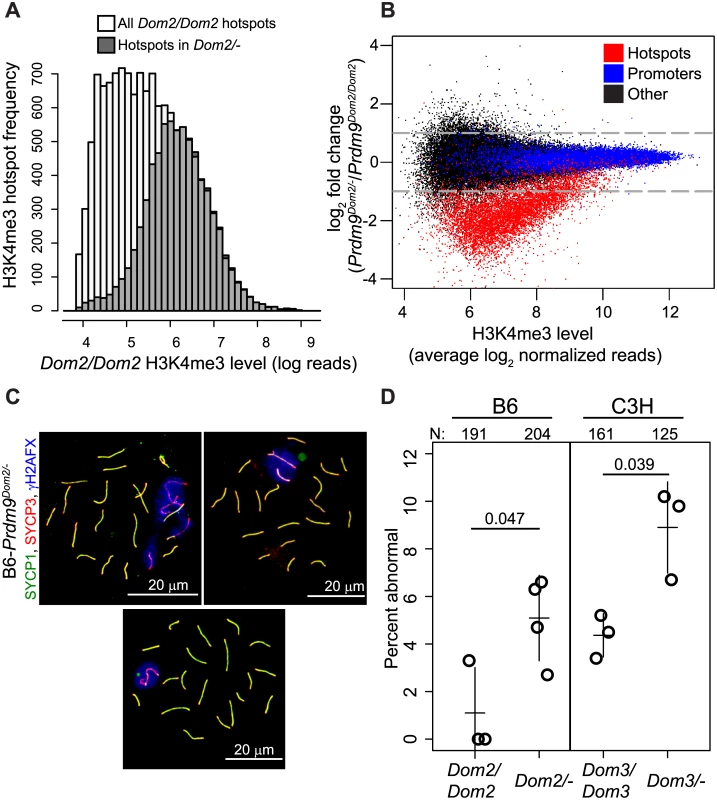

Fig. 4. Prdm9 activity is dosage-sensitive for H3K4me3 levels and partially haploinsufficient for male meiotic progress in vivo.
(A) Hotspots found in heterozygous null mice (B6-Prdm9Dom2/-) correspond to those hotspots with the highest level of H3K4me3 in B6 homozygous mice (B6-Prdm9Dom2/Dom2). Distribution of H3K4me3 level at hotspots in Prdm9Dom2 homozygous males (white—H3K4me3 level for all B6 hotspots, grey—H3K4me3 level in B6 mice for hotspots found in Prdm9Dom2/- heterozygous males). (B) H3K4me3 activity at hotspots is reduced in Prdm9Dom2/- heterozygous mice. MA-plot of H3K4me3 reads from two biological replicates for Prdm9Dom2/Dom2 and Prdm9Dom2/- animals (red—PRDM9-defined H3K4me3 hotspots, n = 7,379; blue—H3K4me3 found at promoters, n = 14,602; black—H3K4me3 found at other functional elements, n = 44,463). (C) Examples of pachytene nuclei from B6-Prdm9Dom2/- males obtained by indirect immunofluorescence labeling. Overlapping SYCP1 and SYCP3 serve as markers for synapsis (yellow). ƴH2AFX is a marker for DSBs and should be restricted to the sex body at pachytene stage. Upper left—no sex body and multiple asynapsed autosomes evident by persistence of ƴH2AFX staining; upper right—asynapsed autosome included in the sex body; lower—normal pachynema. (D) The relative number of aberrant pachynemas increases in male mice heterozygous null for two Prdm9 M. m. domesticus alleles (N—total number of nuclei counted; circles—individual male mice; lines—mean ± standard deviation; p-value—Welsch’s t-test).

Next, we compared the relative activity (normalized read counts) of H3K4me3 hotspots present in both B6 and B6-Prdm9Dom2/- heterozygous null males. As a class, PRDM9Dom2-defined H3K4me3 hotspots have one-third of the level of H3K4me3 in heterozygous null mice compared to B6 (Fig 4B). This reduction in H3K4me3 is also sensitive to the intrinsic strength of the hotspot (as measure by average H3K4me3 level); the weaker the hotspot is (lower average H3K4me3), the greater the fold difference in H3K4me3 levels between B6-Prdm9Dom2/- and B6 mice. Importantly, other PRDM9-independent H3K4me3 sites, such as gene promoters, are not affected by Prdm9 copy number (Fig 4B, blue points). Together, the H3K4me3 ChIP-seq data show that B6-Prdm9Dom2/- male mice have about half the number H3K4me3 hotspots compared to B6 mice, and those that are present have reduced levels of H3K4me3, with the greatest reductions seen at the weakest hotspots.

Male mice that are homozygous null for Prdm9 have a complete meiotic arrest [13,35,36,37]. However, there is conflicting evidence on the effect of removing one allele of Prdm9 on fertility and meiotic progress. Heterozygous male mice for the targeted null mutation Prdm9tm1Ymat have testes weights and sperm counts similar to wild-type males when on a mixed (129*B6) [13] or B6 [36] background. Males heterozygous for another allele, Prdm9M1045Lja, that expresses a truncated protein [34] displayed lower testes weight, reduced number of spermatids, and azoospermia [37]. To determine the effect of heterozygosity of the Prdm9 tm1Ymat allele in the B6 background (B6-Prdm9Dom2/-) on meiotic progress and fertility, we used indirect immunofluorescence labeling of spread adult testicular cells to detect meiotic arrest. Compared to homozygous Prdm9Dom2/Dom2 B6 littermate controls, B6-Prdm9Dom2/- males displayed a mild, but significantly increased fraction of abnormal pachytene stage cells, either completely lacking or having an abnormal sex body (Fig 4C and 4D). This increased number of abnormal pachytene spermatocytes was also seen in heterozygotes when using a different M.m. domesticus allele, Prdm9Dom3, on a C3H/HeN genetic background (Fig 4D). To assess the effect of lowered Prdm9 dosage on overall fertility, we crossed heterozygous null (B6-Prdm9Dom2/-) males to homozygous B6 (Prdm9Dom2/Dom2) females. The B6-Prdm9Dom2/- males produced fewer offspring compared to B6 controls (4.3±1.4 versus 6.2±1.0 per female per month, p = 0.01, Welsch’s t-test) and needed on average 7.4 more days to sire their first litter (p = 0.01, Welsch’s t-test). Thus Prdm9 is partially haploinsufficient for meiotic progress and fertility.

In total, these data comparing Prdm9+/- heterozygous mice to homozygous mice demonstrate that PRDM9 function is dosage-sensitive.

The number of double-strand breaks is similar between B6 and B6-Prdm9Dom2/- male mice

Because the number of H3K4me3 hotspots decreased with lowered Prdm9 dosage, and B6-Prdm9Dom2/- males have increased abnormal pachytene stage cells, we wanted to test if meiotic DSBs are reduced in B6-Prdm9Dom2/- males. To accomplish this, meiotic DSBs were counted in early zygonema using indirect immunofluorescence microscopy with a mix of antibodies directed against DSB-repair proteins RAD51 and DMC1 on staged surface-spread testicular nuclei (S6 Fig). The B6-Prdm9Dom2/- males displayed 189±18 (mean ± standard deviation) DSBs per cell and their B6-Prdm9Dom2/Dom2 littermates 202±29 DSBs per cell; this difference was not significant (p = 0.12, Welsch´s t-test), confirming a previous report of no reduction using different combinations of Prdm9 alleles [34].

Suppression of hotspot activity goes beyond Prdm9 dosage

The combined evidence suggests that PRDM9 activity is limiting in meiotic cells and that PRDM9 variants can self-interact. Together these data suggest that, if heteromeric complexes exist in meiotic cells, the two variants might compete for DNA binding and activation of hotspots in heterozygous individuals. Recombination at some hotspots in Prdm9Dom2/Cst heterozygous mice are completely suppressed when CAST alleles are introduced in trans [26]. One such example is the PRDM9Dom2-defined hotspot Ush2a (genomic position: Chr 1 190,124,179–190,127,477 Mb). By genotyping progeny from crosses [26], we found that the sex-averaged recombination rate at Ush2a is 0.61 cM in the B6 background and completely suppressed when CAST alleles are present (Fisher’s exact test p < 10−4). Nested allele-specific PCR, using primers to amplify either parental or recombinant molecules from pooled sperm, confirms the genetic cross data (Fig 5A). Crossovers at Ush2a are detected in sperm DNA from (B6 x B6.CAST-1T)F1 hybrids that are heterozygous B6/CAST at the hotspot on distal Chr1 and otherwise homozygous B6/B6 (Fig 5A, lanes 3 and 4), but fully suppressed in sperm DNA from (B6 x CAST)F1 hybrids that are heterozygous B6/CAST across all of the genome (Fig 5A, lanes 1 and 2).

<i>Prdm9</i><sup><i>Dom2</i></sup> is suppressed by competition between alleles.

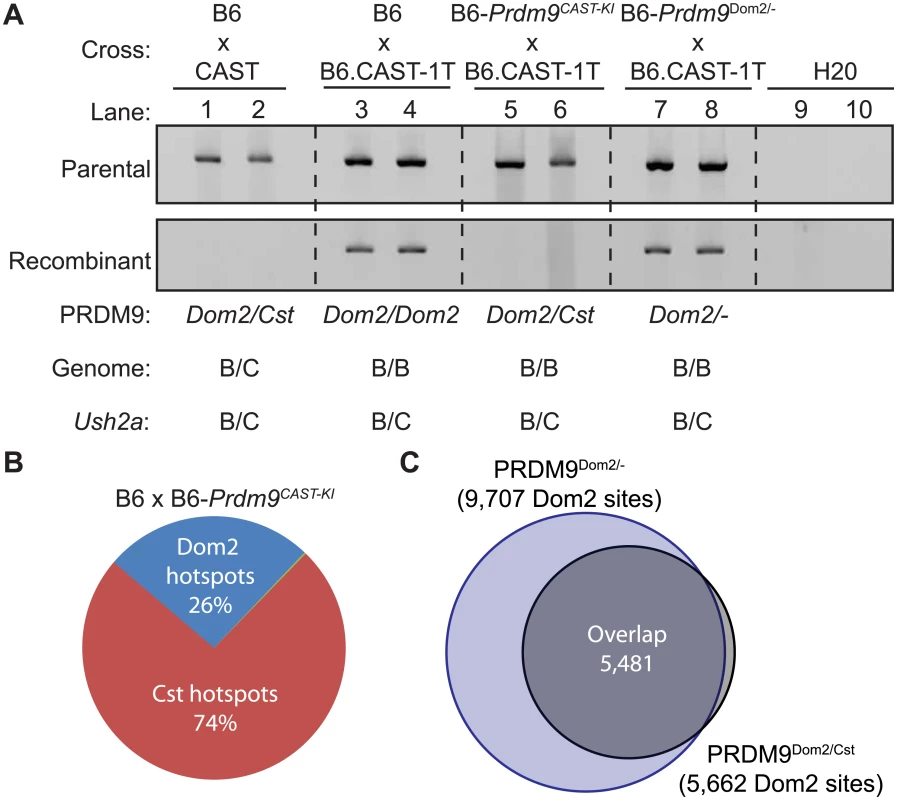

Fig. 5. Prdm9Dom2 is suppressed by competition between alleles.
(A) PRDM9Cst can suppress PRDM9Dom2-directed recombination at Ush2a. To detect either parental (top) or recombinant (bottom) molecules, nested PCR was performed on DNA from pooled sperm samples collected from F1 hybrids from the indicated crosses (two representative biological replicates are shown for each genotype). Recombinant molecules are only detected in progeny homozygous or heterozygous null for Prdm9Dom2. (B) Proportions of H3K4me3 hotspots in (B6xKI)F1 hybrids due to either PRDM9Cst or PRDM9Dom2. (C) PRDM9Dom2 hotspots in (B6xKI)F1 hybrids are the same hotspots found in Prdm9Dom2/- heterozygous mice.

To test if suppression of recombination is due to reduced Prdm9Dom2 dosage, competition between PRDM9Dom2 and PRDM9Cst, or the action of a novel regulatory factor, we compared recombination at Ush2a in sperm DNA from co-isogenic mice that are either heterozygous Prdm9Dom2/Cst or heterozygous Prdm9Dom2/-, heterozygous B6/CAST on distal Chr 1 (to allow detection of crossing over at Ush2a), and uniformly B6/B6 over the rest of the genome. We did so by using appropriate progeny from two crosses: B6-Prdm9CAST-KI (KI), a co-isogenic strain in which the Prdm9Dom2 allele has been replaced by the Prdm9Cst allele from CAST mice [9], crossed to B6.CAST-1T (KI x CAST-1T), and B6-Prdm9Dom2/- crossed to B6.CAST-1T (KO het x CAST-1T). Importantly, similar to (B6 x CAST)F1 hybrid males, recombination at Ush2a is suppressed in (KI x CAST-1T)F1 hybrid males, where the only difference is the presence of Prdm9Cst in one copy (Fig 5A, lanes 5 and 6). However, recombination persists in (KO het x CAST-1T)F1 hybrid males, which only have one allele of Prdm9Dom2 (Fig 5A, lanes 7 and 8). Moreover, the rate of recombination at Ush2a is similar in B6 mice with two doses of Prdm9Dom2 and heterozygous B6-Prdm9Dom2/- mice with one dose (S2 Table). These data show that the Prdm9Cst allele alone is sufficient to directly suppress the activity of the Prdm9Dom2 allele at the Ush2a hotspot.

Prdm9 alleles compete for hotspot activation in heterozygous animals

We next tested the extent to which Prdm9Cst can influence Prdm9Dom2 activity on a genome-wide basis. Previous reports found that, when tested for either H3K4me3 initiation sites or DMC1 DSB sites, the number of PRDM9Dom2-defined hotspots represent much less than the predicted 50% of all hotspots in F1 hybrids carrying two different Prdm9 alleles, indicating some form of competition between alleles [9,10]. In progeny from both B6xCAST and CASTxB6 crosses, the majority (65%) of all hotspots were PRDM9Cst-activated [30]. However, interpretations of genome-wide hotspot behavior in traditional F1 hybrids between inbred strains are complicated by the presence of novel hotspots not found in either parent that result from the action of one parents Prdm9 allele on the genome of the other parent [30], and by the fact that the entire genome is heterozygous, potentially introducing additional trans control mechanisms.

To remove these complications and test for competition in a genetically uniform background, we crossed B6 mice to co-isogenic B6-Prdm9CAST-KI mice and measured H3K4me3 levels in germ cells of the resulting heterozygous Prdm9Dom2/Cst F1 male progeny. The total number of putative PRDM9-defined H3K4me3 hotspots in Prdm9Dom2/Cst progeny (n = 21,894, Fig 5B) is less than the sum of the parental strains (n = 18,849 and n = 28,475, for B6 and CAST-KI respectively) [9], similar to previous result for DSBs in crosses involving Prdm9Dom2 [10], likely reflecting the sensitivity of hotspot numbers to the total amount of PRDM9 protein. In addition, only ~ 26% of H3K4me3 hotspots in these F1 mice are PRDM9Dom2-activated, while ~ 74% are PRDM9Cst-activated (Fig 5B). The PRDM9Dom2-activated H3K4me3 hotspots that are found in the (B6xKI)F1 mice are a subset of the PRDM9Dom2 hotspots found in Prdm9Dom2/- heterozygous mice (Fig 5C), and are therefore those with the highest activity in B6 mice. Together these data confirm competition between alleles in mice heterozygous for Prdm9 and may suggest that PRDM9Cst has a greater affinity for its binding sequence.


In both mouse and humans, recombination rates can be influenced by heterozygosity at Prdm9 [17,18,26]. Here, using mouse genetics, we identified a single QTL influencing the recombination rate at the Pbx1 hotspot that overlaps with Prdm9 (Fig 1). The QTL mapping data suggested that Prdm9 function is more complex than simple activation of hotspots; in particular, that it is dosage-sensitive and subject to competition between alleles in heterozygous individuals. We found that PRDM9 can form homo- and heteromeric complexes, and that these complexes are bound to DNA at hotspots (Fig 3), providing a molecular explanation for competition between alleles in both mouse and humans. Moreover, measuring H3K4me3 levels at hotspots in heterozygous null and homozygous mice confirmed that Prdm9 is dose-sensitive (Fig 4). Finally, we found that hotspot suppression extends beyond simple dosage of Prdm9 in heterozygous mice, showing that the PRDM9Dom2-activated hotspot Ush2a is directly suppressed by the presence of only the Prdm9Cst allele (Fig 5).

Our data indicate that Prdm9 is partially haploinsufficient for mouse fertility on the B6 background. Further phenotypic evidence for Prdm9 dosage sensitivity comes from genetic studies of hybrid sterility [16,36,38]. Crosses between certain M. m. musculus-derived mice and M. m. domesticus strains carrying Prdm9Dom2 result in sterile males with the severity of the pachytene-stage arrest in spermatogenesis being dependent on the parental origin of Chr X [39]. Thus, there are complex genetic interactions between PRDM9 protein variants and another locus on Chr X [38,40]. The F1 hybrid male sterility can be rescued by either making the Prdm9Dom2 allele homozygous; replacing the Prdm9Dom2 allele with another M. m. domesticus allele; or adding extra copies of Prdm9 (independent of which M. m. domesticus allele is added); or it can be partially rescued by removing Prdm9Dom2, creating a heterozygous null M. m. musculus state, these results together further implicate allelic interactions in the hybrid sterility phenomenon [36]. These data, together with our findings on the capacity of PRDM9 to form homo- and heteromeric complexes, indicate that the sterility phenotype is Prdm9 dosage-sensitive and may be partially explained by incompatibilities of different homo- versus heteromeric PRDM9 complexes.

In the absence of Prdm9, meiotic DSBs persist [13], although they are relocated away from recombination hotspots to other Prdm9-independent H3K4me3 sites such as those found at promoters and enhancers [10], resulting in complete meiotic arrest. We found that B6-Prdm9Dom2/- heterozygous mice have a partial failure in meiotic progression (Fig 4). One possible explanation is that the reduced number of PRDM9-dependent H3K4me3 hotspots in a single cell may lead DSBs to be redirected to other, PRDM9-independent, H3K4me3 sites, which are subsequently not properly repaired, as occurs in the homozygous null mouse [10].

Evidence for competition between PRDM9 alleles is also seen in humans [17,18,29]. The recombination rate at several hotspots was measured in men carrying various combinations of A-type and C-type PRDM9 alleles. While men homo- or heterozygous for PRDM9C have similar recombination rates at C hotspots, recombination rates at A hotspots are reduced in heterozygous PRDM9A/C men when compared to homozygous PRDM9A/A men [29]. In addition, in one heterozygous PRDM9A/C man, 56% of the DSBs were due to PRDM9C protein variant, and PRDM9C hotspots were on average stronger than PRDM9A hotspots [28]. Data from these observations, combined with our finding that PRDM9A and PRDM9C can form heteromers and that PRDM9A can be found at C hotspots, support the idea that competition between human PRDM9 alleles results from PRDM9C being partially-dominant to PRDM9A, a relationship similar to that of PRDM9Cst and PRDM9Dom2 in mice.

In addition to Prdm9, there are 16 orthologous PRDM genes in primates and 15 orthologs in rodents, many of which function in multi-protein complexes [41,42]. PRDM proteins are characterized as containing a PR/SET domain, which can catalyze a variety of chromatin modifications, and most also have C-terminal DNA-binding zinc finger domains. Two other PRDM-family proteins, PRDM6 and PRDM2 (also known as Riz1), also form homomeric complexes, in part through interactions involving their PR/SET domains [43,44]. PRDM9 also contains a KRAB domain known to facilitate protein-protein interactions [45]. The mouse and human genomes both contain hundreds of other KRAB-Zinc finger proteins [46], and several are known to form both homo- and heterodimers [47]. Together, these observations suggest that multimer formation may be a common feature of PRDM and KRAB domain containing proteins.

The phenomenon of dominance among Prdm9 alleles is most simply explained by assuming that different alleles have different intrinsic DNA binding affinities determined by the allele-specific zinc finger domains. For example, in a heterozygous mouse, such as the F1 offspring of a cross between B6 and CAST mice, putative PRDM9 dimers would consist of PRDM9Dom2 homodimers, PRDM9Dom2-PRDM9Cst heterodimers, or PRDM9Cst homodimers, in approximate ratios of 1:2:1 (Fig 6). If PRDM9Cst is dominant over PRDM9Dom2, as the suppression of Ush2a suggests, and overall PRDM9 activity is limiting, as the results from the B6-Prdm9Dom2/- studies indicate, PRDM9Dom2-PRDM9Cst heterodimers would activate PRDM9Cst-defined hotspots more often than PRDM9Dom2 hotspots, predicting the 3:1 over-representation of PRDM9Cst-defined hotspots that are active in (B6 x KI)F1 hybrids (Figs 5B and 6). The dominance relationship seen between these two alleles is enhanced by the fact that PRDM9Dom2 hotspots have undergone greater evolutionary hotspot erosion in B6 mice compared to PRDM9Cst-defined hotspots, resulting in PRDM9Cst hotspots having greater binding affinity in the B6 background [9,30]. However, not all allelic pairs show such large bias in hotspot selection. For example, in (WSB x PWD)F1 hybrids, containing two different PRDM9 alleles, 32% of hotspots are defined by the WSB allele and 40% of hotspots are defined by the PWD allele, and the remaining hotspots are unique to the F1 [30]. In any particular combination of alleles, relative dominance will be determined by the intrinsic binding strength of each allele for the hotspots found in that genetic background. This model is supported by the following evidence: Prdm9 activity is dosage dependent (Fig 4), suggesting a limited molecular activity within meiotic cells, PRDM9 protein variants directly compete for hotspot binding [30], for H3K4me3 activity (Fig 5B), DSBs [10,28], and genetic recombination (Fig 5A) [17,18,29], and finally, PRDM9 can form heteromeric complexes that allow protein variants to directly influence each other (Fig 3).

Model of PRDM9 dimerization explains allelic competition and recombination in heterozygotes.

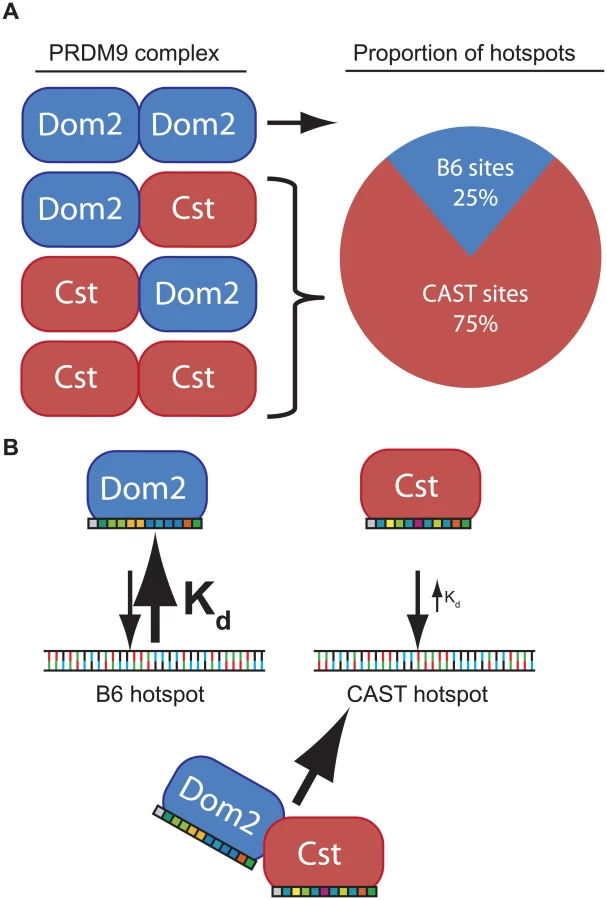

Fig. 6. Model of PRDM9 dimerization explains allelic competition and recombination in heterozygotes.
(A) In the simple case of a protein dimer heterozygous individuals would be expected to form PRDM9 protein complexes in a 1:2:1 ratio. Because PRDM9Cst is dominant to PRDM9Dom2, most heterodimers would activate PRDM9Cst hotspots. (B) Each PRDM9 allele is predicted to bind an allele-specific set of hotspots through allele-specific zinc-finger domains (colored boxes). If intrinsic binding affinity, determined through each zinc-finger array, is different between alleles, a heterodimer would be predicted to be bound more often at hotspots of the allele with the smaller dissociation constant (Kd).

In general, if the average affinity of a PRDM9 allele for its hotspots is appreciably stronger than that of a different PRDM9 allele for its hotspots, and the two protein variants are found in complex together, this difference in affinity in heterozygotes would create a molecular tug-of-war with the stronger allele winning more often, further diminishing the effective dose of the weaker allele. As a result, in heterozygotes, a complex containing both PRDM9 protein variants would more often be bound at hotspots corresponding to the stronger allele. Given the very high population frequencies of Prdm9 heterozygotes [17,18,23,28,48,49], these effects can seriously influence patterns of inheritance in some natural populations.

Materials and Methods


The animal care rules used by The Jackson Laboratory and Institute of Molecular Genetics are compatible with the regulations and standards of the U.S. Department of Agriculture, National Institutes of Health, and European Union Council Directive 86/609/EEC and Appendix A of the Council of Europe Convention ETS123. The protocols were approved by the Animal Care and Use Committee of The Jackson Laboratory (Summary #04008) and Committee on the Ethics of Animal Experiments of the Institute of Molecular Genetics (Permit Nos. 137/2009, 61/2013).

C57BL/6J (stock number 000664) and CAST/EiJ (stock number 000928) mice were used. The generation and characterization of the B6.CAST-1T, B6-Prdm9CAST-KI/Kpgn and B6-Prdm9tm1Ymat strains were described previously [9,13,26,38,50]. The C3H-Prdm9tm1Ymat mice were derived from Prdm9tm1Ymat mice by repeated backcrossing to C3H/HeN resulting in a 98% C3H/C3H background; the differential segment of Chr 17 carrying Prdm9 was approximately 36 Mbp.

Indirect immunofluorescence labeling and microscopy

Surface-spread testicular nuclei were prepared using the hypotonic treatment protocol described previously [51] with a few modifications [36,38]. The following antibodies were used: rabbit polyclonal anti-RAD51 (Santa Cruz, sc-8349), anti-DMC1 (Santa Cruz, sc-22768), and anti-SYCP1 (Abcam, ab15087); mouse monoclonal anti-γH2AFX (Upstate, #05–636) and anti-SYCP3 (Santa Cruz, sc-74569); goat anti-Rabbit IgG Alexa Fluor 488 (Molecular Probes, A-11034); and goat anti-Mouse IgG Alexa Fluor 568 (Molecular Probes, A-11031) and IgG Alexa Fluor 647 (Molecular Probes, A-21236). The images were acquired using a Nikon E400 microscope with a DS-QiMc mono-chrome CCD camera (Nikon) and processed in the NIS-Elements program (Nikon). The spread nuclei were staged based on axis development and synaptonemal complex formation.

Sequencing assay for measuring meiotic recombination and QTL mapping

An important goal for counting recombination at Pbx1 was to bring distant (1–2 kb) SNPs that define recombination hotspots into close proximity for DNA sequencing in a single molecule, while being able to multiplex DNA from hundreds of animals in one sequencing lane. This was achieved using a series of enzymatic steps designed to reduce false-recombinant molecules and incorporate DNA barcoded primers (S1B Fig). Using this system each molecule sequenced represents a single sperm DNA and therefore a potential recombinant DNA. Epididymal sperm was collected from adult mice and DNA purified using the automated sample handling system Maxwell 16 (Promega) with the Tissue LEV Total RNA Purification Kit (Promega). All mice were genotyped as described previously [26].

Step 1: First-round of PCR. DNA primers were design to amplify Pbx1 and contained NotI restriction sites (all primers are listed in S3 Table). PCR reactions for each sample were seeded with ~20,000–25,000 haploid genomes (75 ng total sperm DNA) using 0.25 μl Phusion II enzyme with the HF Buffer (New England Biolabs), 0.8 μM of each primer, 5% DMSO, 0.2 mM dNTPs (NEB) in a total reaction volume of 25 μl. First-round PCR conditions include an initial 98°C 30 second denaturing step followed by 11 cycles of 98°C for 10 seconds, and a 70°C annealing step for 30 seconds followed by 72°C extension step for 45 seconds. The final cycle was followed by 10 minutes at 72°C. Step 2: The entire PCR reaction was brought to 50 μl supplemented with 1 μ NotI (NEB) and appropriate restriction buffer and incubated for 60 minutes at 37°C, followed by heat-inactivation at 80°C for 15 minutes. Step 3: To facilitate intra-molecular ligation and create circularized DNA, the restriction digests were diluted to 200 μl using 5% polyvinylpyrrolpidone (SIGMA), 20 μl T4 ligase buffer, and 1 μl T4 Ligase (NEB). Ligations were performed at 15°C for 15 minutes. The ligation reactions were treated with Exonuclease I and III and incubated at 37°C for 15 minutes to digest any remaining linear DNA molecules. Exonuclease was heat-inactivated by incubating at 95°C for 2 minutes. DNA was concentrated using standard ethanol precipitation and diluted in 10 mM Tris pH 8.0. Step 4: The second round of PCR was performed to generate small DNA molecules amenable to paired-end sequencing. PCR reaction conditions were similar to the first round of PCR in a total reaction volume of 25 μl. Second-round PCR primers were designed to include an 8-bp DNA barcode on the 5’ end in order to allow multiplexing different mouse samples. PCR cycling conditions were also similar to the first round of PCR using 24 cycles. Step 5: After the second round of PCR all individual 25 μl reactions were pooled together and concentrated using ethanol precipitation and resuspended in 10 mM Tris pH 8.0. DNA was run on 2% agarose gel for size selection and purification using QIAquick Gel Extraction Kit (Qiagen). The resulting samples were then subject to high throughput DNA sequencing (see below).

Even with the protocol described above, the DNA sequences generated by high-throughput sequencing consistently reported a low rate of recombination in control samples. To measure false-recombination using deep sequencing we mixed equal amounts of spleen DNA prepared from B6 and CAST mice separately prior to the first-round of PCR; this analysis resulted in a false-recombination rate of 0.22 ± 0.05 cM (mean ± standard deviation). Because recombination cannot occur in these control samples, we conclude that the observed chimeric molecules are created from incomplete extension in one PCR cycle synthesizing a DNA molecule that is subsequently used to prime DNA in following rounds of PCR, so called template-switching or ‘jump-PCR’.

QTL analysis was performed using R ( and the r/qtl package [52]. Single-QTL scans were performed using the scanone function using imputation method. Genome-wide LOD significance thresholds were defined by performing 5,000 permutations.

Plasmid constructs

The PRDM9B allele was purchased from OriGene (Rockville, MD). Oligonucleotide primers were designed to include a 5’ V5 epitope tag and used to amplify the full-length PRDM9 and cloned into pCEP4 expression vector (Invitrogen) to create pCB09. A 6X-HIS-3X-FLAG tag was inserted in frame replacing the V5-tag using yeast-based homologous recombination [53]. The zinc-finger arrays for both PRDM9A and PRDM9C were amplified from human genomic DNA [7] and cloned into pBAD-HisC (Invitrogen). These zinc-finger arrays were subcloned into the pCEP4 vectors using restriction enzymes AflII and HindIII (NEB) to create full-length tagged versions of FLAG-PRDM9C (pCB51), V5-PRDM9C (pCB47), and FLAG-PRDM9A (pCB53), and V5-PRDM9A (pCB48) for expression in mammalian cell culture. The V5-PRDM9C-G278A allele was created using QuikChange II site-directed mutagenesis (Agilent Technologies) to change glycine 278 to alanine to create pCB56. All cloning oligonucleotides are listed in S3 Table.

Cell culture and transfection

HEK293 cells were cultured in DMEM (Gibco, Life Technologies) supplemented with 10% FBS (Gibco) at 37°C and 5% CO2. 24 hours prior to transfection, cells were seeded at with 10 ml 2.5·105 cell/ml in 10-cm culture-treated plates. Cells were transfected using X-tremeGene HP transfection reagent (Roche) following manufacturer’s protocol using a ratio of 3:1 reagent to DNA with 10 μg total plasmid DNA.

Chromatin immunoprecipitation

H3K4me3 ChIP-seq from mouse spermatocytes was performed as previously described [9]. ChIP from HEK293 cell cultures were performed with modifications. After transfection cells were allowed to grow for 48 hours. For H3K4me3 ChIP cells were crosslinked by adding formaldehyde (SIGMA) to a final concentration of 1%, and incubated for 10 minutes. For FLAG-tagged PRDM9 ChIP, cells were crosslinked using freshly prepared paraformaldehyde added to a final concentration of 1% and incubated for 5 minutes. Excess formaldehyde was quenched by adding glycine to a final concentration of 125 mM. The medium was removed and the cells were washed once with phosphate-buffered saline (PBS, SIGMA). The PBS was removed and 2 ml of fresh PBS was added supplemented with protease inhibitor cocktail (SIGMA). The cells were collected by scrapping into a 2-ml Eppendorf tube and pelleted by centrifugation at 5000 x g at 4°C for 5 minutes. The PBS was removed and the cell pellet frozen in liquid nitrogen and stored at -80°C. For H3K4me3 ChIP chromatin isolation, MNase digestion, and immunoprecipitation steps were carried out as previously described for spermatocytes. For FLAG ChIP, chromatin was sheared using sonication and immunoprecipitation performed as described for mouse PRDM9 [30].

High-throughput sequencing and data processing

Pooled DNA samples from the Pbx1 recombination assay were prepared for sequencing using the TruSeq DNA PCR-Free Sample Preparation Kit (Illumina) in order to avoid PCR amplification, which could lead to template switching during amplification, in turn leading to false recombinant molecules. After library preparation Pbx1 DNA was size-selected using the Pippin Prep (Sage Science). DNA from ChIP experiments was prepared for sequencing using NEXTflex ChIP-Seq Kit (Bioo Scientific) for H3K4me3 ChIP from mouse spermatocytes, or Kapa Hyper Prep Kits (Kapa Biosystems) for H3K4me3 ChIP from HEK293 cells without size-selection and 14-cycle PCR amplification. Sequencing for mouse samples was performed at The Jackson Laboratory using the Illumina HiSeq 2000 platform. Sequencing for HEK293 samples was performed at the New York Genome Center using Illumina HiSeq 2500 platform. Base calls were made using CASAVA and mapped to either the mouse genome (mm9) or the human genome (hg19) using BWA [54] with default settings. Custom software was developed to count parental and recombinant molecules, and to de-multiplex individual mice from the Pbx1 recombination assay. For ChIP-seq, alignment files were filtered to keep only uniquely mapped reads. DMC1 SSDS (DSB) ChIP data was previously described [28] (GEO accession no. GSE59836). Peak calling was performed using MACS (v.1.4.2) [55] using ChIP samples for treatment and, for H3K4me3 ChIP, sequenced input DNA as controls with the following settings:-p 1e-5 –keep-dup = ‘all’. Coverage profiles presented in figures were generated with the UCSC genome browser (settings: mean, smoothing window 5) using bedgraphs generated from MACS after tag-shifting. Motif identification and searching for PRDM9C and PRDM9A allele-specific motifs was performed using the MEME Suite (v. 4.9.0) [56]. To locate hotspot centers for heat maps, for each hotspot with more than one motif instance only the top scoring motif was retained (threshold—p-value < 0.0001). Analysis of H3K4me3 peak differences between B6 and heterozygous B6-Prdm9Dom2/- null mice was performed using the R package DiffBind [57].

Heat maps for H3K4me3 ChIP from HEK293 cells and DMC1 ChIP were created using seqMiner [58] for peaks with identified PRDM9 motifs that overlapped both H3K4me3 and DMC1 datasets. For heat maps, tag extension was set at 150 bp for H3K4me3 and 450 bp for DMC1 ChIP, determined by the MACS tag-shifting model, and a wiggle step of 1 bp. Summaries of H3K4me3 ChIP-seq and DMC1 SSDS datasets are presented in S1 Table and S3 Fig. Analysis of peak locations between datasets was performed using bedtools [59].

Quantitative PCR

Quantitative PCR (qPCR) was performed using Quantifast SYBR Green PCR Kit (Qiagen) on the real-time PCR system MasterCycler ep realplex (Eppendorf). Primers were designed using OligoPerfect primer design software (Life Technologies) with 40–60% GC with a product size of 80–120 bps (all primer sequences are listed in S3 Table). All PCR reactions were set up in technical triplicates with 2 μl of ChIP DNA and 0.5 μM forward and reverse primers. Reactions were run for 40 cycles followed by melting curve analysis, and cycle threshold numbers were determined by automated threshold. All ChIP samples were normalized to purified input DNA controls.

Western blots and immunoprecipitation

Whole-cell protein was extracted from HEK293 cells using RIPA buffer (SIGMA) supplemented with 1 mM PMSF, 1X protease inhibitor cocktail (SIGMA), 1 mM EDTA, 1 mM DTT, and 1 μl Benzonase (SIGMA). Cells were lysed at 4°C for 30 minutes mixed every 5 minutes. For Histone extraction, cells were first incubated for 30 minutes with rotation in hypotonic lysis buffer (10 mM Tris-HCL, pH 8.0; 1 mM KCl, 1.5 mM MgCl2) supplemented with 1 mM PMSF and 1X protease inhibitor cocktail. Nuclei were pelleted by centrifugation at 10,000 x g for 10 minutes at 4°C. Histones were recovered by diluting nuclei in 0.2 N HCl and incubating at 4°C with rotation for 2 hours. Cell lysate was cleared by centrifugation at 10,000 x g for 10 minutes at 4°C. Protein samples were normalized for equal loading using Bradford Reagent (BioRad) and diluted in SDS gel-loading buffer and heat-denatured for 5 minutes at 98°C.

For immunoprecipitation, cleared whole-cell lysate was diluted to 500 μl in RIPA buffer. Magnetic protein-G Dynabeads (Invitrogen) were pre-washed with RIPA and treated with anti-FLAG or anti-V5 antibodies for 20 minutes with rotation at room temperature, and washed again with RIPA. Dynabeads were added to the whole-cell lysates and incubated with rotation at 4°C for 3 hours. Immunocomplexes bound to beads were washed 3 times with 500 μl RIPA buffer and eluted using 2X SDS loading buffer.

For western blotting, protein was loaded into 4–15% Tris-Glycine gels (mini-protean, BioRad) and electrophoresis was carried out at 150 V for 60 minutes. Protein was transferred to nitrocellulose membranes using the iBlot system (Invitrogen) with a 7-minute transfer. Westerns were developed using the SNAP i.d. 2.0 Protein Detection System (Millipore/EMD) with the following antibodies diluted 1:1000: anti-FLAG M2 (SIGMA, F1804), anti-V5 (Invitrogen, R960-25), anti-H3K4me3 (Millipore/EMD, 07–473), anti-H3 (Millipore/EMD, 06–755), and VeriBlot secondary antibody HRP (Abcam, ab131366). Blots were visualized using enhanced chemiluminescent substrate SuperSignal West Femto (Life Technologies) and images digitally captured using a G:BOX gel document system (SYNGENE).

Ush2a recombination assay

Sperm DNA was amplified by two rounds of nested PCR using allele-specific primers in each PCR reaction similar to previously described [7]. The two pairs of primers were orientated in 5’-3’ CAST-B6 combination. The 5’ forward primers were both designed to the CAST haplotype. The 3’ reverse primers were designed as either CAST or B6. Primers were PTO-modified at the last two nucleotides in the 3’ end (primer sequences found in S3 Table). The first-round PCR was performed using 50 ng sperm DNA, 0.25 mM of each dNTP, 0.25 μM of each primer, 1x Titanium Taq PCR buffer, and 0.5 U Titanium DNA Taq Polymerase (Clontech Laboratories Inc). PCR cycling conditions included an initial denaturizing step at 94°C for 5 minutes, then 12 cycles of 94°C for 1 minute, 64°C for 40 seconds, and extension time of 68°C for 3 minutes, followed by a final extension time at 68°C for 10 minutes. The amplified DNA product was diluted 10 times and 2 μl used for the second-round allele-specific PCR. Second-round PCR cycling conditions used an initial denaturing step at 94°C for 5 minutes, then 40 cycles of 94°C for 1 minute, 55°C for 40 seconds, and extension time of 68°C for 3 minutes, followed by a final extension time at 68°C for 10 minutes.

Quantitation of recombination rates was done by determining the number of crossover and parental molecules in the same sample of sperm DNA. PCR amplification was carried out in serial dilutions where the starting amount of DNA was diluted two times in each consecutive reaction. The last positive and the first negative dilution reactions were used to perform 20 PCR reactions each in parallel. The number of negative reactions in each pool determines the number of amplifiable molecules through the Poisson distribution.

Data access

High-throughput sequencing files and processed data for ChIP-seq experiments associated with this manuscript can be found at Gene Expression Omnibus under accession numbers GSE52628 and GSE67673.

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8

Attachment 9
