Selection of an HLA-C*03:04-Restricted HIV-1 p24 Gag Sequence Variant Is Associated with Viral Escape from KIR2DL3+ Natural Killer Cells: Data from an Observational Cohort in South Africa

An analysis from a cohort in South Africa reveals how the HIV virus may escape NK cell immunity by acquiring mutations in HLA-mediated epitopes, which affect binding to NK cell receptors.

Published in the journal: . PLoS Med 12(11): e32767. doi:10.1371/journal.pmed.1001900
Category: Research Article
doi: 10.1371/journal.pmed.1001900


An analysis from a cohort in South Africa reveals how the HIV virus may escape NK cell immunity by acquiring mutations in HLA-mediated epitopes, which affect binding to NK cell receptors.


Natural killer (NK) cells are an important component of the antiviral innate immune response. They have the ability to lyse target cells without prior antigen sensitization and to regulate adaptive immune responses by secreting chemokines and cytokines [1]. NK cell activation is determined by the integration of inhibitory and activating signals delivered by a number of different receptor families, including the killer-cell immunoglobulin-like receptors (KIRs), which predominantly recognize human leukocyte antigen (HLA) class I ligands [2]. The binding of distinct KIRs to their HLA class I ligands on target cells is determined not only by conserved motifs within the α1 and α2 helixes of the HLA class I molecule but also by the sequence of the peptide presented by the respective HLA class I molecule [38]. The important role of the sequence of the HLA-presented peptide has been further emphasized by the recent resolution of crystal structures of KIR/peptide/HLA complexes, showing that the engagement of several inhibitory KIRs, including KIR3DL1 and KIR2DL2, is highly susceptible to changes in the carboxyl-terminal residues of the HLA class I—presented peptide [9,10].

Interactions between KIR and HLA class I ligands have been shown to play an important role in the outcome of viral infection [11]. Several epidemiological studies have demonstrated a protective role of specific KIR/HLA combined genotypes in HIV-1 disease outcome. HIV-1-infected individuals with KIR3DS1 and HLA-B alleles of the HLA-Bw4 family, with an isoleucine at position 80 exhibit a significantly slower progression to AIDS [12], and certain alleles of KIR3DL1 resulting in high surface expression of KIR3DL1 are associated with better control of HIV-1 viremia in individuals with HLA-Bw4 [13]. HIV-1 transmission in HLA-discordant couples was suggested to be reduced in KIR2DL2/3+ individuals [14]. Furthermore, single nucleotide polymorphisms associated with higher expression of HLA-C molecules that serve as ligands for KIR2DL1/2/3 have also been associated with better control of HIV-1 infection [15]. The precise mechanisms by which these KIR/HLA interactions can modulate the outcome of HIV-1 infection are not well understood, but increasing data suggest a role for KIR-expressing NK cells in mediating antiviral activity [1624].

Viruses have evolved multiple mechanisms to evade antiviral immune responses. HIV-1 escape from virus-specific CD8+ T cell recognition through the selection of single amino acid mutations in targeted epitopes has been well established, and can lead to impairment of immune-mediated viral control [2527]. Similarly, KIR-associated sequence polymorphisms within HIV-1 might allow for viral escape from NK-cell-mediated immune recognition [28]. However, the mechanisms by which sequence polymorphisms within HIV-1 can enable evasion from antiviral NK cells are not understood. One possible mechanism is that viral sequence mutations within HLA class I—presented epitopes might lead to enhanced engagement of inhibitory KIRs expressed on NK cells and thereby inhibit NK cell activity against infected cells. Here we provide novel data supporting this model in a large cohort of individuals from Durban, South Africa, infected with HIV-1 clade C, demonstrating, to our knowledge for the first time, that a combined KIR/HLA-associated sequence polymorphism within p24 Gag selected in individuals with a certain KIR/HLA genotype is associated with escape from recognition by the respective KIR+ NK cells.


Ethics Statement

Written informed consent was acquired from all study participants enrolled in the Sinikithemba cohort, and the study protocol was approved by the Biomedical Research Ethics Committee of the University of KwaZulu-Natal (approval number E028/99). The study of primary NK cell function in nine healthy HIV-1-negative individuals recruited at Massachusetts General Hospital (Boston, MA) and at Brigham and Women’s Hospital (Boston, MA; IGTB cohort) was approved by the Partners Human Research Committee (protocol #2012P002121), and each participant gave written informed consent for participation.

Study Participants

Study participants were recruited from the Sinikithemba cohort in Durban, South Africa, and included 406 individuals chronically infected with HIV-1 clade C. The study participants were antiretroviral-naïve, KIR typed, and HLA typed to four-digit resolution by molecular methods [29]. Viral load and CD4 T cell measurements at study entry were obtained using the Roche Amplicor assay (version 1.5) and TruCount technology, respectively. At baseline the median age of the cohort was 31 y (interquartile range [IQR] 27–36), median viral load was 58,300 RNA copies/ml (IQR 3,100–185,500), and median CD4 T cell absolute count was 340 cells/mm3 (IQR 238–478). The cohort was predominantly female (79% female and 21% male). For studies of primary NK cell function, nine healthy HIV-1-negative individuals were recruited at Massachusetts General Hospital (Boston, MA) and at Brigham and Women’s Hospital (Boston, MA; IGTB cohort). HLA typing was performed by 454 sequencing, and KIR typing by real-time PCR.

Sequencing of HIV-1 Gag Gene in Individuals Infected with HIV-1 Clade C

RNA was extracted from the blood plasma of patients infected with HIV-1 clade C, and the region p24 of the Gag gene was amplified by nested reverse transcription PCR as part of the gag-protease region of the virus. The entire PCR amplicon (including the p24 Gag region) was sequenced using BigDye Terminator Ready Reaction Mix V3 (Applied Biosystems) with primers described in detail elsewhere [30]. HIV-1 Gag sequences were obtained for 392 of the 406 studied individuals, and KIR genotyping was inconclusive for two of these patients. Our analysis is therefore based on the 390 study participants with full Gag sequencing and KIR/HLA genotyping. The underlying consensus clade C sequence was based on the HIV-1 consensus sequence of the 392 study participants. Gag-protease sequences obtained in this study are available in the GenBank database under nucleotide sequence accession numbers HM593106 to HM593510.

Identification of KIR/HLA-Associated Sequence Polymorphisms within HIV-1 p24 Gag

A statistical approach that yielded a rank-ordered list of the most likely instances in which HLA/KIR combinations interacted to drive selection of specific viral amino acid residues was developed to identify combinations (1) in which specific HLA/KIR combinations were strongly associated with (or against) a particular viral amino acid and (2) where this association was stronger among individuals expressing both the HLA and KIR than among those expressing only the HLA or only the KIR. To this end, two separate tests were performed: (1) a phylogenetically corrected method to identify strong HLA+/KIR+ associations and (2) a logistic-regression-based interaction test to identify instances in which there was evidence of an interaction. The phylogenetically corrected method was run as previously described [31,32], using HLA/KIR, HLA, and KIR as independent variables and using forward selection with p < 0.05 as the addition criterion. The interaction test was performed using standard logistic regression, with significance determined by a likelihood ratio test for a model that included the interaction term versus one that did not. These two sets of tests were each independently applied to each viral amino acid observed at each site (see below for details of the binary encoding).

To combine these tests, we defined a new test statistic ti, which was simply the result of multiplying the p-values of the two tests for HLA-KIR-AA triple i. The significance (in terms of both p-values and false discovery rate) as estimated by q-values [33] was then estimated by comparing to null data, which were generated by repeating this approach on ten independent datasets. Each dataset was generated by randomizing the assignment of individuals to KIR haplotypes (thus preserving the HLA and KIR haplotype structures, as well as the strong HLA-escape-driven signals). The distribution of q-values included three associations with q ≤ 0.13, with the remainder with q > 0.35. As q-values are simultaneously conservative [34], and therefore allow post hoc selection of a threshold, we chose the top three associations to pursue further and report the q-values in Table 1. By combining these tests, we aimed to identify candidate polymorphisms selected only by the particular combination of HLA and KIR for further experimental analysis.

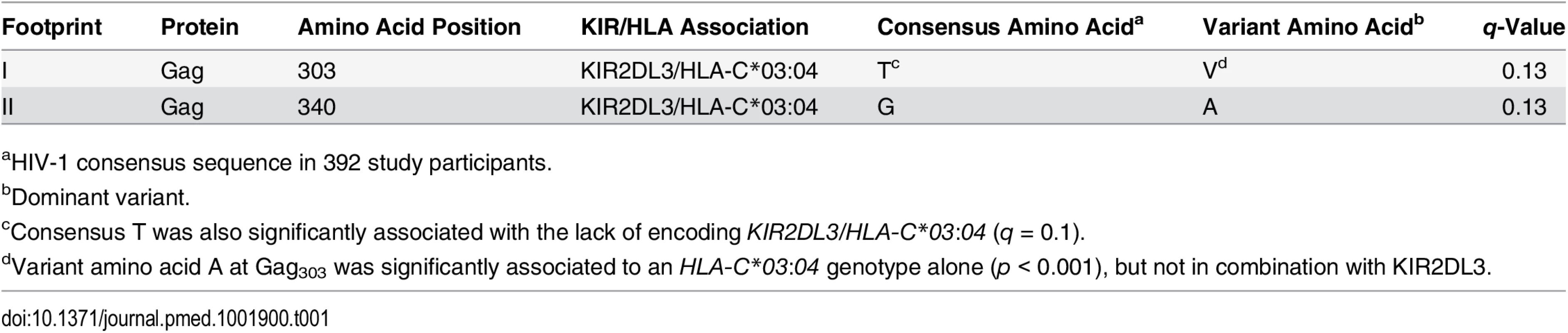

Tab. 1. KIR footprints in HIV-1 clade C sequence.
KIR footprints in HIV-1 clade C sequence.
aHIV-1 consensus sequence in 392 study participants.

To reduce the number of tests, we applied a number of filters to the data as a predefined pre-processing step. Starting with KIR/HLA combinations for which the KIR molecule was known to bind to the HLA molecule [35], we further limited the tests to HLA-KIR-AA combinations that exhibited enough variation to yield meaningful tests and to reduce the computational burden. To this end, we arbitrarily chose ten as a minimum-count threshold for the HLA and KIR alone variables. We limited our tests to HLA-AA and KIR-AA combinations for which there were at least ten individuals in each of the following groups: HLA+, HLA−, KIR+, KIR−, AA+, AA−. For the combined HLA/KIR interaction test, we applied a stronger minimum count of six individuals in the following groups: HLA+/KIR+, AA+, AA−. Although arbitrary, these minimum-count thresholds were prespecified, and we did not explore other thresholds, so as to preserve the fidelity of the statistical analyses.

Amino acids were treated as binary variables to reduce the number of parameters required in the models, and separate models were created for all observed amino acids (subject to the minimum-count filter). Sites for which a mixture of amino acids was observed were treated as non-consensus. For example, for a site in which X, Y, and Z were amino acids that passed the minimum-count filter and in which X matched the cohort consensus, the mixture {X, Y} would yield the encoding [X = 0, Y = 1, Z = 0], while {Y, Z} would yield the encoding [X = 0, Y = 1, Z = 1]. Overall n = 13,826 KIR-HLA-AA triples were tested, with nr = 182,734 tests in the randomized KIR runs (nr ≠ 10n because of the HLA+/KIR+ ≥ 6 filter).

Cell Lines and Primary Natural Killer Cell Populations Used

The HLA class I—deficient human B cell line 721.221 stably transduced with ICP47 was kindly provided by Emmanuel J. H. J. Wiertz (Department of Medical Microbiology, University Medical Center, Utrecht, The Netherlands). ICP47 is an early protein of HSV-1, which blocks loading of endogenous peptide onto HLA class I at the peptide binding site of TAP [36,37]. For the generation of a 721.221-ICP47 cell line stably expressing HLA-C*03:04, 293T cells (ATCC) were transfected with VSV-G, PCG (kindly provided by Thomas Pertel, Dana-Farber Cancer Institute), and pMIP, a retroviral transfer vector containing the HLA-C*03:04 gene (kindly provided by Todd Suscovich, Ragon Institute of MGH, MIT and Harvard). Retroviral supernatant was harvested at day three after transfection and further used to transduce 721.221-ICP47 cells to obtain stable expression of HLA-C*03:04. Transduced cells were selected in 1.5 μg/μl puromycine and maintained in RPMI medium 1640 (Sigma-Aldrich) supplemented with 10% heat-inactivated fetal calf serum (Sigma-Aldrich), 2,500 U/ml penicillin, 2,500 μg/ml streptomycin, and 100 mM L-glutamine (Cellgro) at 37°C under 5% CO2.

HLA-C*03:04 Stabilization and KIR2DL3-Fc Binding Assays

721.221-ICP47-C*03:04 cells were washed twice to remove any peptides remaining from FCS-supplemented medium and were subsequently pulsed with 100 μM of the indicated HIV-1 peptides in non-supplemented RPMI for 20 h at 26°C. Cells cultured with previously described HLA-C*03:04-stabilizing self-peptides (GAVDPLLAL [GAL] and GAVDPLLKL [GKL]) [9] were used as positive controls, while cells cultured with an influenza peptide (ILRGSVAHK) and in the absence of peptides were used as negative controls. After staining with the anti-pan-HLA antibody W6/32 (BioLegend), cells were fixed in 4% paraformaldehyde and analyzed by flow cytometry to quantify HLA class I expression. Titration experiments were performed using 100 μM, 10 μM, 1 μM, and 0.1 μM peptide, as indicated. KIR binding assays with the candidate peptides and controls were performed after 20 h of HLA class I stabilization. Cells were stained using 2.5 μg of KIR2DL3-Fc (recombinant human KIR2DL3-IgG-Fc chimera; R&D Systems, KIR2DL3*001 subtype) for 1 h on ice, followed by a secondary staining with anti-human-Fc antibody (PE-conjugated IgG goat anti-human polyclonal antibody, Invitrogen), as described previously [3]. Following fixation of cells in 4% (w/v in PBS) paraformaldehyde (Affymetrix), flow cytometric analysis was performed using a BD LSR II.

Assessment of Primary Natural Killer Cell Activation

To determine activation of primary NK cells following exposure to target cells pulsed with different peptide variants, NK cell degranulation assays measuring CD107a expression were performed using freshly isolated and purified NK cells from nine healthy KIR2DL3+ individuals [38]. Primary NK cells were isolated by incubating whole blood with RosetteSep Human NK Cell Enrichment Cocktail (Stemcell Technologies) for 20 min at room temperature, followed by Histopaque-1077 (Sigma) density gradient centrifugation. NK cells were rested overnight in RPMI medium 1640 (Sigma-Aldrich) supplemented with 10% heat-inactivated fetal calf serum (Sigma-Aldrich), 2,500 U/ml penicillin, 2,500 μg/ml streptomycin, 100 mM L-glutamine (Cellgro), and 1.0 ng/ml IL-15 (Cellgro). Subsequently, NK cells (1 × 105) were co-incubated with peptide-pulsed 721.221-ICP47-C*03:04 cells (5 × 105) at an effector:target ratio of 1:5 in RPMI containing anti-human CD107a-PE-Cy7 (12.5 μl/ml) and monensin (1.5 μl/ml, BD GolgiStop). Cells were incubated for 6 h at 26°C in 5% CO2. Cells were stained with 7AAD, anti-CD3-PB, anti-CD16-BV785, anti-CD56-BV605, anti-CD14/19-BV510, anti-KIR2DL2/3-PE, and anti-KIR2DL3-APC, washed, fixed with 4% (w/v in PBS) paraformaldehyde (Affymetrix), and analyzed by multiparameter flow cytometry using a BD LSR II.

Analysis of Binding Affinities via Surface Plasmon Resonance

Surface plasmon resonance (SPR) measurements were made using a Biacore 3000 system; the experimental buffer used was HBS-EP (Biocore). To assess binding of the viral variants to KIR2DL3, biotinylated HLA-C*03:04 monomers (42 kDA) refolded with the peptides YVDRFFKTL, YVDRFFKAL, and YVDRFFKVL (Immudex) were immobilized onto a Streptavidin sensor chip (GE Healthcare) to approximately 500 response units for optimal responses. A blank flow cell with no immobilized ligand was used as a reference flow cell. Injections of 60 μl of KIR2DL3-Fc (recombinant human KIR2DL3-IgG- Fc chimera; R&D Systems, 102.4 kDA) diluted in PBS to a concentration of 10 μg/ml were performed at a flow rate of 20 μl/min, with a subsequent 10-min run of buffer to allow sufficient dissociation. Due to described instability after acid treatment of the HLA-C/peptide complex, acidic regeneration of the chip was not performed [39]. As a last step, the amount of each HLA monomer refolded with the respective epitope variant immobilized on the chip was determined by HC10 antibody staining. Raw sensograms were corrected by double referencing (subtracting from the reference flow cell response and from the PBS injection response). Given the dimeric nature of the KIR2DL3 analytes, a biphasic model was used to obtain the fit; binding constants are given as mean ± standard error of the mean (SEM). Experiments were performed at 25°C.

Computational Modeling

All-atom, explicit solvent molecular dynamic simulations were used to obtain a detailed atomistic understanding of the structural and dynamic properties that modulate the specificity of binding of the three-way interaction between KIR2DL3, HLA-C*03:04, and peptide. An experimentally resolved crystal structure (Protein Data Bank ID 1EFX) [9] of KIR2DL2, in complex with its class I ligand HLA-C*03 and a self-peptide (GAL), was used as a structural template for all the studies herein and was adapted to fit KIR2DL3 modeling. A free energy perturbation (FEP) procedure was followed to obtain differences in the binding free energy (ΔΔG) between MHC with wild-type or mutant peptide (pMHC) and the KIR molecule. Further simulation details can be found in S1 Text, describing the modeling of the three-way interaction between KIR2DL3/HLA-C*03:04/peptide. S1 Fig shows the stability of the 1EFX structure (two KIR in complex with HLA-C*03 presenting GAVDPLLAL. S2 Fig illustrates the differences in the free energy of binding upon mutations of the self-peptide GAVDPLLAL. In S3 Fig we show the stability of the TGag303 (YTL)–loaded HLA complex with KIR2DL3 binding. S4 Fig displays the insensitivity of the peptide binding groove to the identity of the peptide. S1 Text describes the details of the computational modeling.

Data Acquisition and Analysis

Flow cytometry data were analyzed using FlowJo software version 10.0.6 (Tree Star), and statistical analysis was performed using GraphPad Prism 6 (GraphPad Software). HLA stabilization values are shown as mean relative fluorescence intensity; error bars represent standard deviation (SD). Relative fluorescence intensity was calculated by dividing the geometric mean fluorescence intensity (gMFI) of HLA expression in the presence of the tested peptide by the gMFI of stained target cells without peptide added in each respective assay. Binding of KIR2DL3-Fc is represented as percent of KIR2DL3+ cells ± SD. NK cell degranulation values are expressed as relative degranulation, by dividing the percentage of CD107a+ NK cells in a sample by the percentage of CD107a+ NK cells in the negative control sample from the same individual (where the non-binding GKL peptide was added). A repeated-measures one-way ANOVA was subsequently performed to compare the responses between the wild-type group and the groups of the two variant peptides, for the KIR2DL3+ and KIR2DL3− NK cells, respectively. This was followed by a Tukey’s post hoc test. Each individual was sampled one time.


Identification of KIR/HLA Class I—Associated Sequence Polymorphisms within the HIV-1 Clade C p24 Gag Sequence

Previous studies have demonstrated that HIV-1 Gag represents an important target for cell-mediated immunity against HIV-1, including in individuals infected with HIV-1 clade C [40], resulting in viral escape from CD8+ T cell—mediated immune pressure by selection of sequence polymorphisms [27,30,4146]. To determine the mechanism by which KIR+ NK cells might also impose immune pressure on HIV-1, we sequenced autologous p24 Gag genes from 392 individuals from Durban, South Africa, chronically infected with untreated HIV-1 clade C [30], for whom high-resolution HLA class I and KIR type information was available. Given the size of the cohort, we sought to identify sequence polymorphisms associated with the presence of specific KIR/HLA class I combinations in this population, rather than with the presence of the respective KIR allele or HLA class I allele alone [28], to guide further functional experiments. We therefore developed an exploratory statistical approach to identify sequence polymorphisms overrepresented in individuals with both the respective KIR and HLA class I alleles, but not in individuals with either the HLA class I allele alone or the KIR allele alone (or neither of them). This approach of combining the phylogenetically corrected method and the logistic-regression-based interaction test was chosen because, by themselves, the phylogenetically corrected method yielded a number of associations that were driven by the HLA allele alone, matching well-characterized T cell escape mutations, and the interaction test alone yielded no results that were significant after correcting for multiple tests (q = 1 for all tests).

The combined approach was subsequently applied to all 13,826 KIR/HLA polymorphism combinations in HIV-1 p24 Gag, and yielded three associations at two sites (Gag303 and Gag340) that were considered significant given the number of hypotheses tested (q ≤ 0.13; indicating a 13% false discovery rate) and were chosen because the next most significant association had a q-value of 0.35, providing a natural threshold. A combined genotype encoding KIR2DL3 and HLA-C*03:04 was associated with a valine at position Gag303 and an alanine at position Gag340, while not having the combined genotype was associated with having the wild-type threonine at position Gag303. A sequence change to having alanine at Gag303 was furthermore significantly related to having the HLA-C*03:04 allele (p < 0.001), but upon combining with a KIR allele, significance was lost, as it was selected only in an HLA-C*03:04-related manner. In contrast, the sequence polymorphism encoding valine at Gag303 was solely significant for the combined KIR/HLA genotype, whereas no effect for this variant was observed among individuals possessing the HLA-C*03:04 allele alone.

More than half of the viruses from individuals with the KIR2DL3/HLA-C*03:04 genotype (18/33) had a sequence polymorphism in amino acid position 303 of p24 Gag, with a TGag303V mutation in 39.5% of individuals (10/33) and a TGag303A variant in 15% of individuals (5/33) (Fig 1A). Mixed variant and wild-type residues within the same patients were treated as escape in this position (3/33), as mixed residues suggested ongoing but not yet fully fixed escape. In contrast, 90% of individuals (312/348) not possessing this combined KIR/HLA genotype had virus with the TGag303 wild-type sequence (p < 0.001, Fisher’s exact test; Fig 1A), and mixed residues were seen in virus from only two out of 348 patients. At amino acid position 340 of p24 Gag, 40% of the infected individuals with the KIR2DL3/HLA-C*03:04 genotype had virus with a GGag340A variant (14/35), compared to only 9% of KIR2DL3−/HLA-C*03:04− participants (33/353) (Fig 1B; p < 0.001, Fisher’s exact test), with the percentage of mixed residues at this position changing from 1% (4/353) to 6% (2/35) in the KIR2DL3/HLA-C*03:04 genotype. Taken together, these statistical analyses using different models revealed polymorphisms within the HIV-1 clade C p24 Gag sequence associated with the presence of a specific combined KIR/HLA genotype in the studied population, but not with the presence of the respective KIR or HLA class I allele alone.

Distribution of frequencies of wild-type and variant Gag sequences in viruses from <i>KIR2DL3+/HLA-C*03</i>:<i>04+</i> individuals compared to individuals not possessing the combined <i>KIR2DL3/HLA-C*03</i>:<i>04</i> genotype.

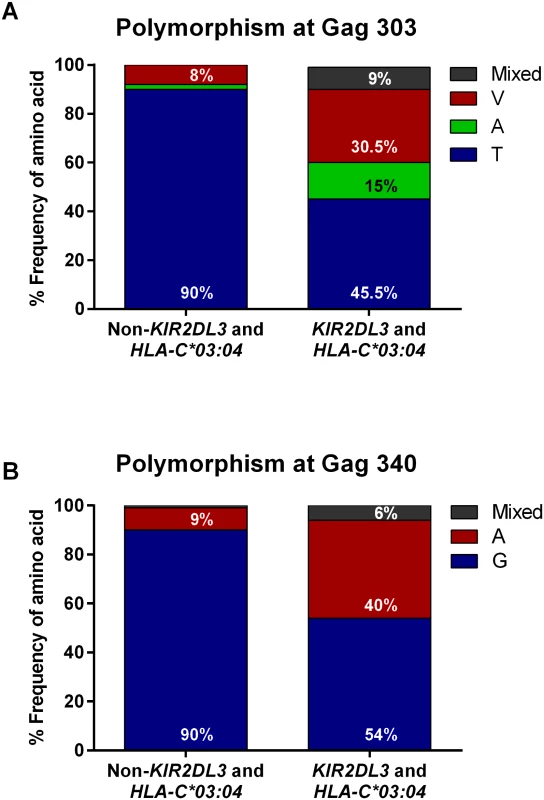

Fig. 1. Distribution of frequencies of wild-type and variant Gag sequences in viruses from KIR2DL3+/HLA-C*03:04+ individuals compared to individuals not possessing the combined KIR2DL3/HLA-C*03:04 genotype.
(A) A valine (V) at amino acid position 303 of HIV-1 Gag was significantly (p < 0.001, Fisher`s exact test) overrepresented in KIR2DL3+/HLA-C*03:04+ individuals (n = 33) compared to individuals not possessing this combined genotype (non-KIR2DL3 and HLA-C*03:04, n = 348), 90% of whom had virus with the consensus sequence wild-type threonine (T) in that position (n = 312). Furthermore, an alanine (A) variant at position Gag303 was present in five of the 33 individuals in the KIR2DL3+/HLA-C*03:04+ group (15%). The percentage of individuals whose virus showed mixed residues at position Gag303 was 0% in KIR2DL3−/HLA-C*03:04− individuals and 9% in KIR2DL3+/HLA-C*03:04+ individuals. (B) An alanine (A) at position 340 of HIV-1 Gag was significantly (p < 0.001, Fisher’s exact test) overrepresented in KIR2DL3+/HLA-C*03:04+ individuals (n = 35) compared to individuals not possessing this combined genotype (non-KIR2DL3 and HLA-C*03:04, n = 353), 90% of whom had virus with the consensus sequence wild-type glycine (G) in that position (n = 316). Two patients in the KIR2DL3−/HLA-C*03:04− subset had neither the wild-type nor the GGag340A variant and are not shown in this graph. The percentage of individuals whose virus showed mixed residues at position Gag340 was 1% in KIR2DL3−/HLA-C*03:04− individuals and 6% in KIR2DL3+/HLA-C*03:04+ individuals. Conclusive KIR2DL3 typing was not available for two out of the 392 study participants; these two participants were excluded from further analysis.

The TGag303 Variants Are Contained within an HLA-C*03:04-Presented Epitope and Are Equally Well Presented by HLA-C*03:04

To determine whether the two identified KIR/HLA-associated sequence polymorphisms within HIV-1 p24 Gag were contained within epitopes presented by the respective HLA class I molecules, we initially used HLA binding prediction models to identify potential epitopes. The amino acid polymorphism at position 303 of Gag was located within a previously described HLA-C*03:04-restricted CD8+ T cell epitope [47,48], and the wild-type epitope sequence YVDRFFKTL was predicted as a binder of HLA-C*03:04 using the NetMHCpan 2.8 predictor tool [49]. Notably, the sequence polymorphisms TGag303V and TGag303A were located at position P8 of the nonamer peptide, a position within the peptide for which the crystal structure of HLA-C*03:04 and KIR2DL2—an allele closely related to KIR2DL3—indicates an important role for KIR binding [9]. The epitope containing this footprint is highly conserved in HIV-1 clade C sequences published in the Los Alamos HIV Sequence Database (, with variation occurring almost exclusively at position P8 of the nonamer. Also, the second KIR2DL3/HLA-C*03:04-associated sequence polymorphism at amino acid position 340 of Gag was contained within a nonamer peptide (RALGPGATL) that showed a high binding affinity to HLA-C*03:04 using the NetMHCpan 2.8 restriction tool. As it had not been previously described as an HLA-C*03:04-restricted HIV-1 epitope, we tested 8- to 11-amino-acid-long peptides containing the GGag340 wild-type or the GGag340A variant sequence, and were able to confirm that the nonamer RALGPGATL was the optimal minimal epitope binding to HLA-C*03:04 at the lowest peptide concentration (S5A and S5B Fig). However, the sequence polymorphism at position 340 of Gag was located in position P6 of the HLA-C*03:04-presented epitope, a position not classically reported to be relevant for KIR binding to HLA-C*03:04.

We next investigated whether sequence variants in these epitopes binding to HLA-C*03:04 modulated the level of HLA expression on HLA-C*03:04+ cells. Using 721.221 cells, an HLA class I—devoid cell line, transduced with a single HLA class I gene (HLA-C*03:04) and ICP47 (an early HSV-1 protein known to block TAP [50]), allowed us to determine the ability of exogenously added peptides to bind to and stabilize HLA-C*03:04. As positive controls, the endogenous self-peptides GAVDPLLAL (GAL) and GAVDPLLKL (GKL), previously known to bind to HLA-C*03:04 [9], were used. 721.221-ICP47-C*03:04 cells were pulsed with the wild-type epitope YVDRFFKTL and its variants YVDRFFKVL and YVDRFFKAL and tested for HLA-C*03:04 stabilization by staining with the anti-pan—HLA class I antibody W6/32 (Fig 2). Pulsing with wild-type and variant peptides induced up to 4-fold higher expression of HLA-C*03:04 on the cell surface as compared to non-peptide-pulsed 721.221-ICP47-C*03:04 cells or 721.221-ICP47-C*03:04 cells loaded with the negative control peptide. More importantly, no differences in HLA surface expression were observed between the YVDRFFKTL, YVDRFFKVL, and YVDRFFKAL peptides, suggesting a stable and similar presentation of these three epitope variants by HLA-C*03:04 (T [mean 3.24 ± 0.64 SD] to A [mean 3.17 ± 0.53 SD], p = 0.996; T to V [mean 3.40 ± 0.74 SD], p = 0.681; A to V, p = 0.907). Titration experiments for HLA-C*03:04 stabilization using serial peptide dilutions confirmed equal HLA stabilization induced by wild-type and variant peptides containing the Gag303 polymorphism at non-saturating levels (T [mean 2.60 ± 1.45 SD] to A [mean 1.84 ± 0.79 SD], p = 0.732; T to V [mean 2.17 ± 1.36 SD], p = 0.229; A to V, p = 0.946; ANOVA/Tuckey’s post hoc test), indicating unaltered binding affinity despite the amino acid mutation in position P8 of the peptide. In contrast, RALGPGATL, the second HLA-C*03:04-restricted epitope containing position Gag340, bound as wild-type sequence with significantly higher affinity to HLA-C*03:04 than the epitope containing the sequence variant, RALGPAATL, when using non-saturating peptide amounts (G [mean 4.24 ± 0.46 SD] to A [mean 2.72 ± 0.81 SD], p = 0.006; paired, two-tailed t-test with 1 μM peptide; S5C Fig).

Equal HLA-C*03:04 stabilization on TAP-blocked 721.221-ICP47-C*03:04 cell line with HIV-1 p24 Gag T<sub>Gag303</sub> wild-type and variant peptides.

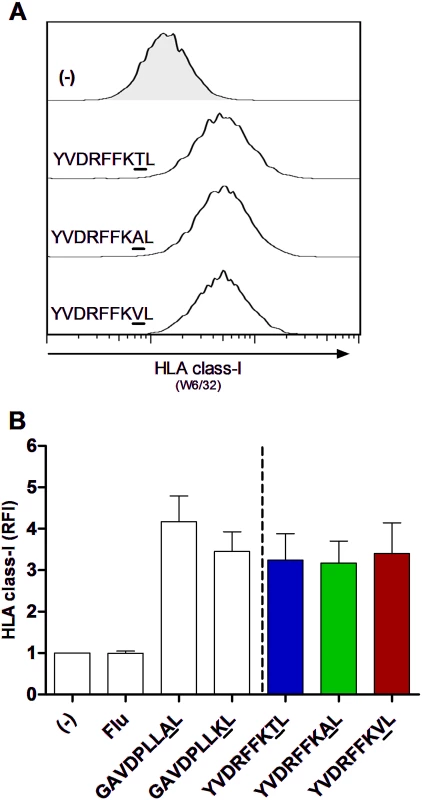

Fig. 2. Equal HLA-C*03:04 stabilization on TAP-blocked 721.221-ICP47-C*03:04 cell line with HIV-1 p24 Gag TGag303 wild-type and variant peptides.
(A) Representative histograms of HLA-C*03:04 stabilization with TGag303 wild-type and TGag303A and TGag303V variant peptides compared to addition of no peptide (−). HLA-C*03:04 surface levels were determined by flow cytometry using an anti-pan—HLA class I antibody (clone W6/32). Peptides were added at a saturating concentration of 100 μM. (B) Quantification of HLA-C*03:04 stabilization in the presence of TGag303 wild-type and TGag303A and TGag303V variant peptides, as well as positive endogenous control peptides for HLA-C*03:04 stabilization (GAVDPLLAL and GAVDPLLKL) and a non-HLA-C*03:04-stabilizing influenza-derived control peptide (Flu, ILRGSVAHK). Data represent mean of five experiments with error bars indicating the SD. Relative fluorescence intensity (RFI) was calculated as the gMFI of the sample divided by the gMFI of 721.221-ICP47-C*03:04 cells stained in the absence of peptide.

Taken together, these data demonstrate that the statistical approaches used identified two KIR2DL3/HLA-C*03:04-associated sequence polymorphisms within HIV-1 p24 Gag that were indeed contained within HLA-C*03:04-presented HIV-1 epitopes, providing experimental data that validate the statistical approach. While the KIR2DL3/HLA-C*03:04-associated TGag303V and TGag303A sequence polymorphisms had no impact on binding to and expression of HLA-C*03:04, the GGag340A mutation reduced the ability of the epitope to bind to HLA-C*03:04. As the subsequent experimental approach used to assess the consequences of peptide variations on KIR binding relied on equal presentation of variant and wild-type peptides by HLA-C*03:04 for conclusive results, assessment of the consequences of the GGag340A mutation for KIR2DL3 binding was not feasible. We therefore selected the TGag303 variants to determine the consequences of the KIR2DL3/HLA-C*03:04-associated sequence polymorphisms for KIR/HLA interactions and NK cell function.

The KIR2DL3/HLA-C*03:04-Associated TGag303V Mutation Results in Enhanced Binding of the Inhibitory KIR2DL3 Receptor

To assess the consequences of the TGag303V polymorphism on KIR2DL3 binding to HLA-C*03:04, we stained with a fusion chimera of KIR2DL3 attached to and dimerized by the Fc portion of hIgG1 (KIR2DL3-Fc) after labeling 721.221-ICP47-C*03.04 cells with the three different peptide variants (YVDRFFKTL, YVDRFFKVL, and YVDRFFKAL), and quantified KIR binding using a secondary PE-conjugated anti-human-IgG antibody. The positive control peptide GAVDPLLAL (GAL), known to allow for binding to KIR2DL2, which has binding patterns similar to those of KIR2DL3 [3], was used as an internal control for the engagement of KIR2DL3. The corresponding HLA-C*03:04-binding variant GAVDPLLKL (GKL) did not allow for KIR2DL3 binding, while still stabilizing HLA-C*03:04 at similar levels, and thus was used as a negative control. The results of repeated (n = 6) KIR2DL3-Fc binding assays are summarized in Fig 3A and 3B. While the wild-type peptide YVDRFFKTL and the variant peptide YVDRFFKAL allowed for a certain degree of KIR2DL3 binding, the YVDRFFKVL variant peptide preferentially selected in KIR2DL3+/HLA-C*03:04+ individuals resulted in significantly stronger binding of KIR2DL3-Fc (T [mean 18.01 ± 10.45 SD] and V [mean 44.67 ± 14.42 SD], p = 0.002; Fig 3A and 3B). Binding of KIR2DL3-Fc to HLA-C*03:04 in complex with the TGag303V variant even exceeded binding to HLA-C*03:04 in complex with the positive control peptide GAL. The TGag303A variant, previously reported to mediate escape from cytotoxic T lymphocyte (CTL) recognition [47], did not enhance binding to KIR2DL3-Fc compared to the wild-type sequence (T to A [mean 15.46 ± 7.24 SD], p = 0.811). This is in line with our findings showing no statistical association of this variant with the KIR2DL3+/HLA-C*03:04+ combined genotype, but rather only with HLA-C*03:04 alone, which might hint at CD8 T cell—related escape. Taken together, these data demonstrate that the TGag303V polymorphism selected in KIR2DL3+/HLA-C*03:04+ individuals led to a considerable increase in binding of the inhibitory KIR2DL3 receptor to HLA-C*03:04 as compared to the wild-type sequence.

Binding of KIR2DL3-Fc and inhibition of primary KIR2DL3+ NK cells is significantly stronger when target cells are pulsed with the T<sub>Gag303</sub>V variant peptide.

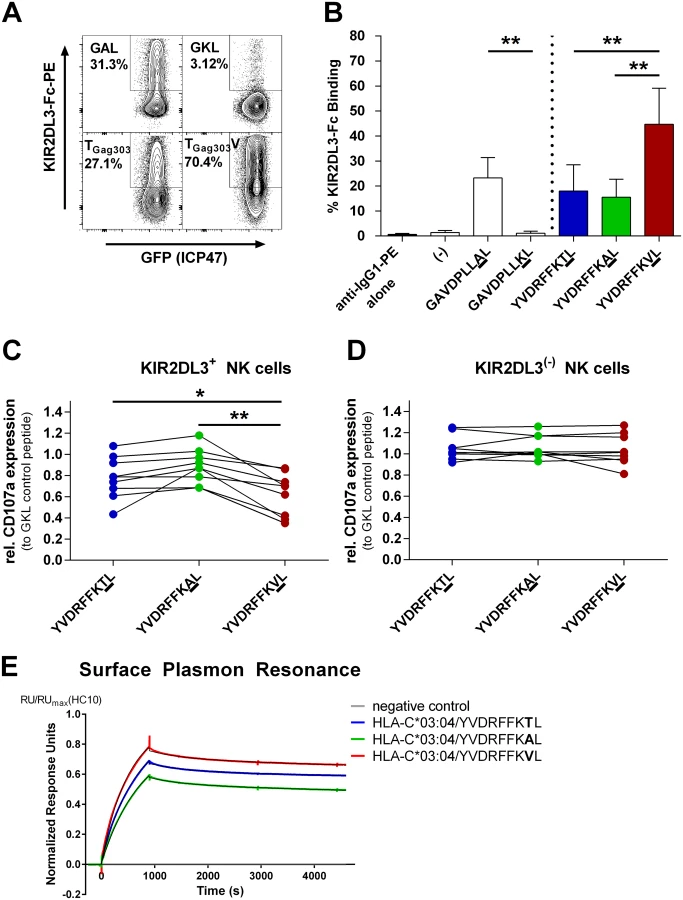

Fig. 3. Binding of KIR2DL3-Fc and inhibition of primary KIR2DL3+ NK cells is significantly stronger when target cells are pulsed with the TGag303V variant peptide.
(A) Representative dot plots of KIR2DL3-Fc staining of 721.221-ICP47-C*03:04 cells pulsed with positive control peptide GAL, negative control peptide GKL, TGag303 wild-type peptide, or TGag303V variant peptide. Staining was measured by flow cytometry after addition of a secondary PE-conjugated anti-IgG antibody. All cells express GFP, indicating successful transduction of ICP47 and thus optimal blockade of TAP. (B) Quantification of KIR2DL3 binding expressed as percent of cells binding KIR2DL3-Fc. Means of six independent experiments, with error bars representing SD, are shown. Binding of KIR2DL3-Fc was significantly stronger to 721.221-ICP47-C*03:04 cells pulsed with the variant TGag303V (YVDRFFKVL) peptide than to those pulsed with wild-type (YVDRFFKTL; p = 0.002) or TGag303A (YVDRFFKAL; p = 0.002) peptide. (C and D) Degranulation of primary KIR2DL3+ (C) and KIR2DL3− (D) NK cells measured as CD107a expression after incubation with 721.221-ICP47-C*03:04 cells pulsed with TGag303 wild-type and TGag303A and TGag303V variant peptides. The percentage of CD107a+ NK cells in response to the respective peptide is normalized to the percentage of CD107a+ NK cells for KIR2DL3− and KIR2DL3+ NK cell subsets after co-incubation with target cells pulsed with GKL (GAVDPLLKL) control peptide. 721.221-ICP47-C*03:04 target cells presenting YVDRFFKVL significantly inhibit degranulation of KIR2DL3+ NK cells compared to targets pulsed with YVDRFFKTL (p = 0.0121) or YVDRFFKAL (p = 0.0019). The different peptide variants had no detectable effect on CD107a expression in KIR2DL3− NK cells. All p-values stated are adjusted for multiplicity of testing. Primary NK cells from nine different healthy KIR2DL3+ participants were tested. (E) Sensogram of KIR2DL3 dimeric analyte binding to biotinylated HLA-C*03:04/YVDRFFKTL, HLA-C*03:04/YVDRFFKAL, and HLA-C*03:04/YVDRFFKVL monomers on a Streptavidin chip; an empty well served as negative control. The sensogram data are normalized to the amount of respective HLA monomer immobilized on the chip by HC10 antibody. Each fit was obtained using double reference subtraction and is shown as a black line. Affinity of the KIR2DL3/HLA-C*03:04/YVDRFFKVL protein-protein interaction was highest. *p < 0.05; **p < 0.01.

The KIR2DL3/HLA-C*03:04-Associated TGag303V Mutation Inhibits KIR2DL3+ NK Cell Degranulation

We subsequently investigated whether the stronger KIR2DL3-Fc binding to HLA-C*03:04 induced by the TGag303V variant peptide altered the effector function of KIR2DL3+ NK cells. Primary NK cells from healthy KIR/HLA-typed donors were co-incubated with 721.221-ICP47-C*03:04 cells pulsed with the peptide variants YVDRFFKTL, YVDRFFKVL, and YVDRFFKAL. Degranulation was measured by CD107a expression on NK cells, and KIR2DL3+ and KIR2DL3− NK cell subsets were distinguished using an antibody specific for KIR2DL3. When evaluating the function of KIR2DL3+ NK cells, no significant differences in CD107a expression after stabilization with the wild-type (YVDRFFKTL) or YVDRFFKAL peptide were observed (T [mean 0.78 ± 0.07 SEM] to A [mean 0.89 ± 0.05 SEM], p = 0.086), reflecting the results of the KIR2DL3-Fc binding assays (Fig 3B). However, co-incubation with 721.221-ICP47-C*03:04 cells pulsed with the YVDRFFKVL variant peptide led to a significant inhibition of degranulation of KIR2DL3+ NK cells compared to the wild-type peptide (T to V [mean 0.63 ± 0.07 SEM], p = 0.0121; Fig 3C) and to variant YVDRFFKAL (A to V, p = 0.002). In contrast, the different peptide variants had no effect upon the activation of KIR2DL3− NK cells (Fig 3D), as expected (T [mean 1.06 ± 0.04 SEM] to A [mean 1.06 ± 0.04 SEM], p = 0.933; T to V [mean 1.04 ± 0.05 SEM], p = 0.828; A to V, p = 0.603). Overall, results from KIR2DL3 binding to peptide-pulsed 721.221-ICP47-C*03:04 cells and degranulation of KIR2DL3+ NK cells in response to peptide-pulsed 721.221-ICP47-C*03:04 cells were closely correlated for the different peptides tested (R = 0.76, p = 0.02). Altogether, the sequence polymorphism TGag303V in p24 Gag selected for in individuals infected with HIV-1 clade C who have the combined genotype KIR2DL3/HLA-C*03:04 resulted in a blunting of primary KIR2DL3+ NK cell responses against HLA-C*03:04-expressing cell lines, while effector function of KIR2DL3− NK cells remained unaffected.

Surface Plasmon Resonance Displays Enhanced Binding of HLA-C*03:04-Presented TGag303V to KIR2DL3 Dimers

In order to further validate our findings, we performed SPR analysis to quantitatively assess the affinity between KIR2DL3 and the HLA-C*03:04-presented wild-type and variant epitopes. Variant TGag303V (YVDRFFKVL) had the highest affinity to KIR2DL3 of the tested epitope variants upon presentation by HLA-C*03:04, with a KD = 77 ± 3 nM. This was followed by the wild-type peptide TGag303 (YVDRFFKTL), with a KD = 81 ± 3 nM. HLA-C*03:04 refolded with variant TGag303A (YVDRFFKAL) exhibited the lowest binding affinity of the three peptides, with a KD = 93 ± 4 nM. The kinetic data indicated that the higher affinity of TGag303V to KIR2DL3 was driven by both faster complex formation and a lower dissociation rate. Together, these data indicate that the selected TGag303V variant binds with higher affinity to inhibitory KIR2DL3 than the wild-type or variant TGag303A epitope.

Computational Modeling Results Can Predict Binding of Variant Peptides to KIR2DL3-Fc and Functional Outcome of NK Cell Activation

The crystal structure of KIR2DL2 in conjunction with HLA-C*03:04 presenting a self-peptide (GAVDPLLAL) has been described previously [9]. Based on this structure, we used all-atom, explicit solvent molecular dynamic simulations adapted to the closely related KIR2DL3 structure, which differs by only 24 amino acid positions from KIR2DL2 (Immuno Polymorphism Database; We did this to obtain a detailed atomistic understanding of the structural and dynamic properties that modulate the specificity of binding between KIR2DL3 and HLA-C*03:04, with a particular interest in the dependence of the sequence of the HLA class I—presented peptide. First, to assess the validity and reach of the simulation protocol, two independent simulations were run for 50 ns each of the 1EFX structure containing an HLA-C*03:04 molecule loaded with GAL bound to a KIR2DL3 molecule. While some small inter-domain, hinge-like motions were observed in both simulations, each domain remained stable, as shown by Cα root mean square deviations (RMSDs) smaller than 0.15 nm (S1 Fig). Moreover, the binding surface between peptide-loaded HLA class I and KIR was unmodified during the length of the simulations, further supporting the thermal stability of the complex. KIR2DL3 binds orthogonally to one end of the peptide-binding groove, interacting with both the α1 and α2 helices of the HLA molecule and the C-terminus of the peptide (only residues 7 and 8), as shown in Fig 4. The complex is held together by strong charge complementarity between the KIR and corresponding HLA-C*03:04 surface, forming a dense network of salt bridges. Eight hydrogen bonds and four salt bridges formed between the negatively charged KIR surface and the positively charged HLA surface, and led to the strong recognition.

Structural details of the HLA/peptide/KIR three-way complex.

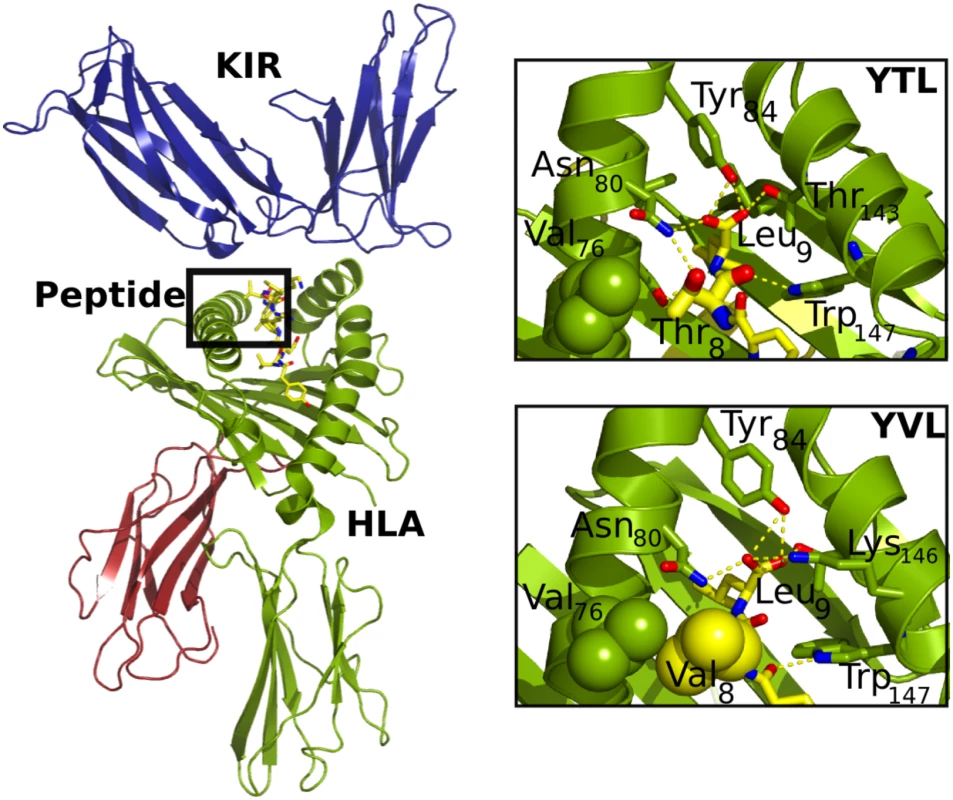

Fig. 4. Structural details of the HLA/peptide/KIR three-way complex.
(A) Overall structure of the HLA/peptide/KIR complex. The peptide is buried in the HLA class I binding grove, while KIR interacts with both helices of HLA class I as well as the C-terminus of the peptide. (B) Comparison of the interactions around the mutated viral residue (top: in fat sticks; bottom: in spheres). The YVDRFFKTL (YTL) wild-type peptide includes a hydrogen bond between the side-chain oxygens of Thr8 and Asn80, while the YVDRFFKVL (YVL) variant improves the hydrophobic packing against Val76. Interestingly, Asn80 participates in a hydrogen bond expected to confer allotype specificity to KIR2Ds.

Once the binding mode was identified as adequate and stable under the simulation parameters employed, a rigorous FEP strategy was used to calculate the free energy changes of binding between the positive control peptide (GAVDPLLAL) and the negative control (GAVDPLLKL), along with three other peptide variants previously characterized experimentally for KIR2DL2 binding (GAVDPLLYL, GAVDPLLVL, and GAVDPLLSL) [9]. The results of the FEP calculations (S2 Fig) agree remarkably well with experimental results described by Boyington et al. [9] (S2 Fig), allowing for validation of both the current simulation parameters and the use of the FEP protocol to obtain the changes in binding free energy of the complex upon sequence variations of the self-peptide. Next, the endogenous self-peptide in the complex was replaced by the wild-type HIV-1 peptide YVDRFFKTL (TGag303); details of the two-step preparation procedure, equilibration, and stability assessments are provided in S3 and S4 Figs and S1 Text. The overall shape of the HLA-C*03:04 binding pocket for the peptide remained highly conserved upon substitution of the peptide chain (S4A Fig), consistent with the experimental data from the HLA-C*03:04 stabilization assays (Fig 2). The peptide backbone, however, differed only in the position P5, which twisted significantly and became more exposed to the solvent (S4B Fig). Both termini of the peptide remained completely buried in the binding pocket, with the charged C-terminus of the peptide engaging in multiple hydrogen bonds with Tyr84, Tyr123, and Thr143 of HLA-C*03:04. The stabilized structure was then used to compute the changes in free energy (ΔΔG) upon binding of the wild-type sequence (TGag303) and five different variants: the in-vivo-selected HIV-1 sequence polymorphisms (TGag303V and TGag303A), a naturally occurring minor variant TGag303C (1.9%, Los Alamos HIV Sequence Database), and two additional experimental variants, TGag303F and TGag303G.

Compared to the wild-type sequence YVDRFFKTL, the TGag303V mutant showed a moderate enhancement in binding affinity (ΔΔG = −0.51 ± 0.41 kcal/mol; Table 2), which agreed well with the experimental observations (Fig 3B and 3C; Table 2). The free energy decomposition revealed that the stability of binding of this mutation was mainly due to a favorable electrostatic term, which contributed about −1.31 kcal/mol. It turned out that this contribution was largely from the much less favored free state because of the loss of hydrogen bonds with the solvent in the free state. The bound state also lost some hydrogen bonds with water, but because of the compensation from the KIR, the overall loss in total hydrogen bonds was less significant. In contrast, the TGag303A mutant slightly destabilized the complex (ΔΔG = 0.38 ± 0.34 kcal/mol), again in line with the experimental data. While threonine and valine are similar in size, the alanine residue is significantly smaller and induced a penalty in the overall favorable hydrophobic packing of the system. A similar situation occurred with the TGag303G mutant (1.10 ± 0.74 kcal/mol), with an energetic profile comparable to that of the alanine variant. The bulky aromatic group introduced by the TGag303F mutant resulted in a large entropic penalty due to less flexible Phe side chains. The mutations TGag303A, TGag303C, TGag303F, and TGag303G thus either decreased or completely destroyed the binding between HLA-C*03:04 and KIR2DL3 in our computational model, while the TGag303V mutant selected in KIR2DL3+/HLA-C*03:04+ individuals enhanced the binding to the inhibitory KIR2DL3 receptor in this model, in line with the experimental data.

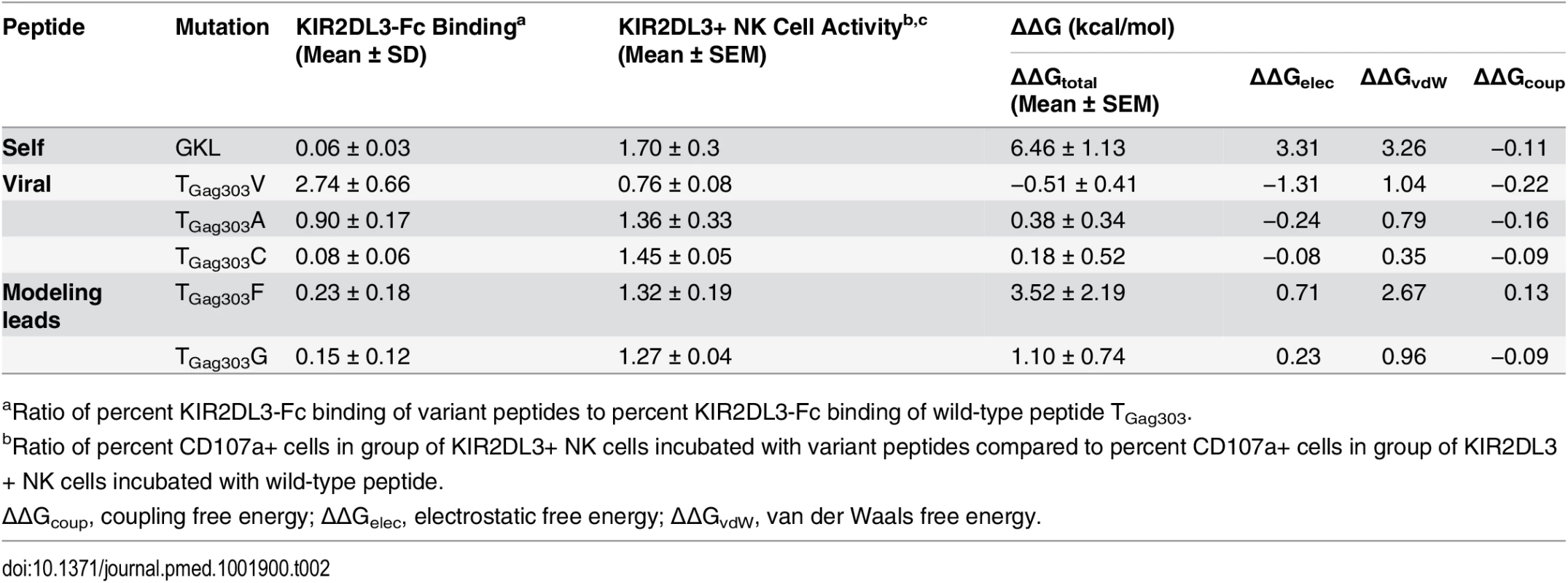

Tab. 2. Experimental validation of modeling results.
Experimental validation of modeling results.
aRatio of percent KIR2DL3-Fc binding of variant peptides to percent KIR2DL3-Fc binding of wild-type peptide TGag303.

Based on the KIR2DL3 binding predictions for the additionally tested minor variant TGag303C, and the two experimentally designed peptide variants (TGag303F and TGag303G), we performed subsequent experimental validations using these peptides. As shown in Table 2, a close correlation between the experimental data and modeling data for the variants TGag303F and TGag303G was observed, similarly to the previously tested TGag303 wild-type, TGag303V, and TGag303A peptides. Only the TGag303C variant gave discordant results—with the experimental data showing a more drastic decrease in KIR2DL3-Fc binding compared to wild-type (mean 0.08 ± 0.06 SD) than predicted by the change in ΔΔG (0.18 ± 0.52 kcal/mol) (Table 2). The ΔΔG values resulting from the modeling studies and the KIR2DL3-Fc binding data from the experimental studies were correlated (R = 0.5), but this correlation did not reach significance given the discordant results for the TGag303C variant. Excluding this variant resulted in a significant correlation between modeling results and experimental data (R = 0.8, p = 0.04). Taken together, the modeling data based on the KIR2DL2 crystal structure adapted to KIR2DL3 agreed very well with the observed experimental data, and also allowed for predictions about how peptide variants might modulate KIR/HLA class I interactions that could be experimentally validated.


Persistent HIV-1 infection is characterized by a continuously evolving struggle between immune recognition of the virus and viral escape from immune control. HIV-1 evades host immune pressure by numerous means, such as differential down-regulation of HLA class I by accessory gene products [51], adaptation to the cellular antigen-processing machinery [52], and selection of single amino acid sequence variants enabling evasion from T cell responses [44] or antibodies [53]. We recently demonstrated that HIV-1 can also adapt to KIR-mediated immune pressure [28], but the mechanisms by which viral sequence variations can reduce the ability of KIR+ NK cells to recognize HIV-1-infected cells remain unknown. We sought to further elucidate these mechanisms through the identification of viral sequence polymorphisms selected at the population level in infected individuals expressing specific combinations of KIRs and their HLA class I ligands, and identified two amino acid mutations in the HIV-1 clade C p24 Gag sequence that are significantly associated with the presence of distinct KIR/HLA combined genotypes. Functional studies demonstrated that the selection of the TGag303V sequence polymorphism resulted in significantly better binding of the inhibitory NK cell receptor KIR2DL3 to HLA-C*03:04, and in inhibition of KIR2DL3+ primary NK cells. These functional data were supported by structural modeling of the KIR/HLA interaction in the context of wild-type and variant epitope sequences and validated by SPR analysis. Taken together, these results elucidate a novel mechanism by which HIV-1 can evade NK-cell-mediated immune pressure through the selection of single amino acid variants within HLA class I—presented epitopes that inhibit the function of NK cells expressing the respective KIR.

Previous studies have successfully employed statistical approaches to identify viral sequence polymorphisms associated with the expression of individual HLA class I molecules on a population level resulting from escape from CD8+ T cell—mediated immune pressure. These mutations can lead either to impaired presentation of viral epitopes by HLA class I molecules or abrogation of T cell receptor binding. Similar approaches have been used to identify viral adaptation to other host factors, including host restriction factors [54], and more recently also to KIRs that are expressed on NK cells and modulate NK cell function [28]. However, due to limitations in sample sizes, it was not possible to date to identify viral sequence polymorphisms associated with the presence of combined host factors, such as the highly polymorphic genes encoding HLA class I and KIR. KIRs bind to HLA class I molecules, with significant consequences for NK cell function, and HLA class I and KIR have co-evolved in humans, modulating the outcome of pregnancy, autoimmune diseases, and infectious diseases including HIV-1 [55,56]. As the interaction between KIR and HLA class I can be modulated by the HLA class I—presented peptides [38], we sought to investigate whether HIV-1 might exploit these peptide-dependent interactions through the selection of sequence polymorphisms that evade NK-cell-mediated immune recognition. We were confronted with several challenges: (1) the number of HLA/KIR/polymorphism combinations is large, yielding a large number of tests and therefore requiring large sample and effect sizes to reach statistical significance; (2) polymorphisms within HLA class I—presented viral epitopes that affect KIR binding may also affect CD8+ T cell recognition [57], thereby diluting the KIR-specific signal; and (3) the distribution of KIR and HLA is unbalanced. We addressed these challenges by first limiting the analysis to combinations where the KIR/HLA receptor/ligand pairs were already known. Second, we identified associations that were significantly more represented in participants with a combined KIR/HLA genotype than in the pooled group of participants possessing only one gene allele or being negative for both alleles. At the same time, we allowed for an only marginally greater representation of the variant in the combined genotype compared to an HLA+ background alone. Thereby, we established a valid approach excluding escape mutations driven solely by CD8+ T cell—mediated immune pressure while at the same time being sensitive enough to identify those sequence polymorphisms selected in a KIR/HLA interaction context. Using this approach, we were able to identify two KIR/HLA-associated sequence polymorphisms within the HIV-1 clade C p24 Gag sequence in a cohort of 392 treatment-naïve, chronically infected individuals from South Africa. Given the still very large number of KIR/HLA/polymorphism combinations that had to be tested (n = 13,826), we most certainly underestimated the total number of KIR/HLA-associated sequence polymorphisms within this cohort of 392 individuals. However, the identification of two sequence polymorphisms that were significantly associated with the presence of combined KIR/HLA genotypes provided us with the unique opportunity to study the functional consequences of these sequence variations for NK-cell-mediated immune recognition.

We first sought to determine whether the peptides holding the KIR2DL3/HLA-C*03:04-associated sequence variants were indeed presented by HLA-C*03:04. The Gag303 polymorphism was located within a described optimal HIV-1 CTL epitope restricted by HLA-C*03:04 [47]. Contrary to evasion from epitope-specific CD8+ T cells, published crystal structures of KIR2DL2 and HLA-C*03:04 showed that only the residues at the C-terminal end of the epitope were involved in KIR/HLA interactions [9]. In line with this, the amino acid substitution at Gag303 was the only major variant in the YVDRFFKTL epitope observed in published HIV-1 sequences, and, notably, the sequence polymorphism was located at the C-terminal end of the peptide at amino acid position 8 (P8). Furthermore, the selected sequence polymorphisms TGag303V and TGag303A did not change the ability of the respective epitopes to bind to HLA-C*03:04. In contrast, the second KIR2DL3/HLA-C*03:04-associated sequence mutation in RALGPGATL occurred at position P6 of the peptide, where it is less likely to affect KIR2DL3 binding, and surface stabilization of HLA-C*03:04 by the GGag340A variant peptide was significantly reduced compared to that of the wild-type peptide, rendering it unfeasible to assess the consequences for KIR binding. Overall, these data suggested that, in contrast to the Gag303 polymorphisms, the Gag340 polymorphisms might not directly modulate KIR binding to HLA class I as a main mechanism of immune escape. Alternatively, the mutation at Gag340 might be a mutation disrupting or altering processing of a flanking epitope, as was described before for other HIV-1 sequence polymorphisms [5860]. It is possible that this flanking epitope can be presented on HLA-C*03:04 and engage KIR2DL3, which would explain the association detected in the cohort. Furthermore, our experimental approach would not have detected alterations in HLA class I or KIR binding of the peptide resulting from differential posttranslational modifications of wild-type or variant peptides [61]. Taken together, the statistical approach used here allowed us to identify two KIR2DL3/HLA-C*03:04-associated sequence polymorphisms within HIV-1 p24 Gag, one of which (at Gag303) had no impact on epitope binding to HLA class I but was located in a position that modulated KIR2DL3 binding.

The Gag303 sequence polymorphisms had been previously described to be located in an epitope representing an immunodominant target for HIV-1-specific CD8+ T cells [29,48], and to be associated with evasion from CD8+ T cell—mediated immune pressure [47]. These studies showed that the TGag303A polymorphism resulted in a reduction of recognition by epitope-specific CD8+ T cells, as well as a reduction in viral fitness [47], and in our dataset the TGag303A variant was also strongly associated with the presence of HLA-C*03:04 alone (p = 0.0005) (but not in compound with KIR2DL3). In contrast, the TGag303V variant that was selected in individuals with the KIR2DL3/HLA-C*03:04 combined genotype had no impact on viral replication capacity but, surprisingly, restored recognition by HIV-1-specific CD8+ T cells to a level similar to that of the TGag303 wild-type sequence in studies by Honeyborne et al. [47], raising the question of why this variant was selected in individuals with HLA-C*03:04, and ultimately represented the major variant in these individuals. Here we demonstrated that the occurrence of the TGag303V mutation was not associated with the presence of the HLA-C*03:04 genotype alone, but significantly enriched only in individuals with the combined KIR2DL3/HLA-C*03:04 genotype. We furthermore demonstrated in functional studies that the TGag303V variant significantly enhanced the binding of KIR2DL3 to HLA-C*03:04 molecules presenting the TGag303V epitope and inhibited the function of KIR2DL3+ primary NK cells, strongly suggesting that KIR2DL3+ NK cells might have a role in driving viral evolution in this epitope. Interestingly, the mutation from threonine to valine can be achieved only by a two-step nucleotide mutation, necessarily passing through an intermediate variant such as alanine. This provides an explanation for why the TGag303A variant was observed in a subset of the studied KIR2DL3+/HLA-C*03:04+ population (Fig 1A, 15%), although it did not alter KIR2DL3 binding or KIR2DL3+ NK cell function compared to the wild-type sequence. Furthermore, coexistence of viral sequences containing TGag303 wild-type and TGag303A/V variants was observed by phylogenetic analysis in two of the KIR2DL3+/HLA-C*03:04+ study participants, suggesting that TGag303A represents a transitory stage that is subsequently replaced in the majority of KIR2DL3+/HLA-C*03:04+ individuals by TGag303V [47]. Taken together, these data reflect the critical interplay between CD8+ T cell—mediated and NK-cell-mediated immune pressure in the selection of sequence variations in HIV-1.

A limitation of our study is that no conclusions can be drawn as to when during natural infection the observed viral amino acid sequence changes were selected, as the time point of infection in the HIV-1-infected participants enrolled in this study was not known. Longitudinal studies will be required to address this question, and also to determine the consequences of these sequence mutations for viral fitness and in vivo control of HIV-1 replication. Future studies will also be needed to assess processing of the epitope variants and the kinetics of antigen presentation of the investigated HIV-1 sequence polymorphisms in natural infection, as well as the abundance of HLA class I presentation of these peptides on HIV-1-infected cells.

Using SPR analysis, we observed enhanced binding of TGag303V to KIR2DL3 compared to the wild-type epitope. In line with our biological data, TGag303A exhibited the lowest predicted monomeric affinity to KIR2DL3. Of note, recombinant KIR2DL3-Fc was used as a dimeric analyte in our assay, which increases the avidity to all HLA-C*03:04/peptide refolded monomers. Thus, we were only able to obtain monomeric affinity values using model-based calculations, which have inherent assumptions that can cause discrepancies relative to true monomeric affinities. This might in part explain the observed small differences in KD values between the two key peptides. Based on the results from functional studies and SPR analysis, we subsequently employed a computational modeling approach to further understand the underlying thermodynamic changes caused by single amino acid substitutions in HLA-C*03:04-presented epitopes leading to altered KIR2DL3 binding on a molecular level. Modeling approaches showed that the mutation in position P8 of the YVDRFFKTL epitope did not notably alter the overall shape of the HLA-C*03:04 binding pocket, which can explain the equal stabilization of HLA-C*03:04 by the variant and wild-type peptides observed experimentally. Despite some controversy in the literature about the meaningfulness of breaking down the total free energy into electrostatic and van der Waals components, and the ambiguity associated with a path-dependent decomposition [6264], we believe that breaking up the total binding free energy into various components allowed us to gain a more detailed understanding of the physical interactions involved in the peptide/HLA/KIR binding and to optimize our ability to predict the effects that these amino acid changes have on HLA class I presentation and KIR binding. The stronger affinity of HLA-C*03:04 in complex with peptides containing the TGag303V variant to KIR2DL3 can thus largely be explained by unfavorable electrostatic interactions of the HLA class I molecule in the unbound state due to the hydrophobicity of valine compared to the wild-type threonine. Although a few hydrogen bonds between peptide and solvent were still lost upon engagement of KIR, this was compensated for by binding of KIR2DL3 to the HLA-C*03:04 molecule itself. Interestingly, one of the residues in the HLA class I molecule participating in these compensatory hydrogen bonds with KIR2DL3 was HLA-Asn80, which is the residue conferring allotype specificity of the HLA-C group 2 via binding to KIR Lys88. The strong long-range interactions of KIR2DL3 with the HLA-C*03:04 molecule itself, together with a few direct contacts between amino acids in the peptide (mainly P8, and to some extent P7) and KIR2DL3, demonstrate a completely different molecular mechanism from CD8+ T cell recognition, where the HLA class I—presented peptide has significantly more direct exposure to the T cell receptor [65]. While for most of the epitope variants a close correlation between the modeling data and the experimental KIR2DL3 binding data was observed (R = 0.8, p = 0.04), the modeling results for the TGag303C variant did not fully agree with the experimental KIR2DL3-Fc binding data. Even though FEP analysis may have difficulties in catching small changes in binding affinity (~kBT = 0.6 kcal/mol), such as in this particular case—which is likely due to force field accuracy and sampling issues—the overall trend predicted agreed well with the experimental data and provided novel insights into the structural and mechanistic changes on a molecular level occurring with distinct substitutions in the peptide sequence, and their consequences for KIR/HLA interactions and NK cell function.

Taken together, the results of this study in a large cohort of individuals from South Africa infected with HIV-1 clade C provide novel insights into the mechanisms by which HIV-1 can escape NK-cell-mediated immune pressure through the selection of sequence variants that enhance the binding of an inhibitory KIR to HLA class I/peptide complexes. This immune evasion mechanism might also be used by other pathogens with high mutation rates and potentially also in tumor immune evasion, as it demonstrates how specific mutations in an antigen can lead to the inhibition of KIR+ NK cell function. A better understanding of these molecular mechanisms will provide the rationale to use NK cells therapeutically, for example, in combination with KIR-blocking antibodies, which have already been tested in the oncology field in phase I clinical trials [6668]. The computational models used here will furthermore allow the extension of these observations to other KIR/HLA interactions, facilitating the search for further virus- or tumor-derived peptides modulating NK cell function in an efficient and comprehensive screening system. Better understanding of the mechanisms that regulate the recognition of virus-infected or tumor cells by NK cells will facilitate approaches to harness the antiviral activity of NK cells in a manner more specific than previously thought possible.

Supporting Information

Attachment 6


1. Cooper MA, Fehniger TA, Caligiuri MA (2001) The biology of human natural killer-cell subsets. Trends Immunol 22: 633–640. 11698225

2. Long EO, Kim HS, Liu D, Peterson ME, Rajagopalan S (2013) Controlling natural killer cell responses: integration of signals for activation and inhibition. Annu Rev Immunol 31: 227–258. doi: 10.1146/annurev-immunol-020711-075005 23516982

3. Van Teijlingen NH, Hölzemer A, Körner C, García-Beltrán WF, Schafer JL, Fadda L, et al. (2014) Sequence variations in HIV-1 p24 Gag-derived epitopes can alter binding of KIR2DL2 to HLA-C*03: 04 and modulate primary natural killer cell function. AIDS 28: 1399–1408. doi: 10.1097/QAD.0000000000000284 24785948

4. Fadda L, Borhis G, Ahmed P, Cheent K, Pageon SV, et al. (2010) Peptide antagonism as a mechanism for NK cell activation. Proc Natl Acad Sci U S A 107: 10160–10165. doi: 10.1073/pnas.0913745107 20439706

5. Fadda L, Körner C, Kumar S, van Teijlingen NH, Piechocka-Trocha A, et al. (2012) HLA-Cw*0102-restricted HIV-1 p24 epitope variants can modulate the binding of the inhibitory KIR2DL2 receptor and primary NK cell function. PLoS Pathog 8: e1002805. doi: 10.1371/journal.ppat.1002805 22807681

6. Peruzzi M, Parker KC, Long E, Mahati MS (1996) Peptide sequence requirements for the recognition of HLA-B*2705 by specific natural killer cells. J Immunol 157: 3350–3356. 8871631

7. Rajagopalan S, Long EO (1997) The direct binding of a p58 killer cell inhibitory receptor to human histocompatibility leukocyte antigen (HLA)-Cw4 exhibits peptide selectivity. J Exp Med 185: 1523–1528. 9126935

8. Stewart-Jones GBE, di Gleria K, Kollnberger S, McMichael AJ, Jones EY, et al. (2005) Crystal structures and KIR3DL1 recognition of three immunodominant viral peptides complexed to HLA-B*2705. Eur J Immunol 35: 341–351. 15657948

9. Boyington JC, Motyka SA, Schuck P, Brooks AG, Sun PD (2000) Crystal structure of an NK cell immunoglobulin-like receptor in complex with its class I MHC ligand. Nature 405: 537–543. 10850706

10. Vivian JP, Duncan RC, Berry R, O’Connor GM, Reid HH, et al. (2011) Killer cell immunoglobulin-like receptor 3DL1-mediated recognition of human leukocyte antigen B. Nature 479: 401–405. doi: 10.1038/nature10517 22020283

11. Bashirova AA, Thomas R, Carrington M (2011) HLA/KIR restraint of HIV: surviving the fittest. Annu Rev Immunol 29: 295–317. doi: 10.1146/annurev-immunol-031210-101332 21219175

12. Martin MP, Gao X, Lee J-H, Nelson GW, Detels R, et al. (2002) Epistatic interaction between KIR3DS1 and HLA-B delays the progression to AIDS. Nat Genet 31: 429–434. 12134147

13. Martin MP, Qi Y, Gao X, Yamada E, Martin JN, et al. (2007) Innate partnership of HLA-B and KIR3DL1 subtypes against HIV-1. Nat Genet 39: 733–740. 17496894

14. Jennes W, Verheyden S, Mertens JW, Camara M, Seydi M, et al. (2013) Inhibitory KIR/HLA incompatibility between sexual partners confers protection against HIV-1 transmission. Blood 121: 1157–1164. doi: 10.1182/blood-2012-09-455352 23243280

15. Apps R, Qi Y, Carlson JM, Chen H, Gao X, et al. (2013) Influence of HLA-C expression level on HIV control. Science 340: 87–91. doi: 10.1126/science.1232685 23559252

16. Long BR, Ndhlovu LC, Oksenberg JR, Lanier LL, Hecht FM, et al. (2008) Conferral of enhanced natural killer cell function by KIR3DS1 in early human immunodeficiency virus type 1 infection. J Virol 82: 4785–4792. doi: 10.1128/JVI.02449-07 18305035

17. Alter G, Martin MP, Teigen N, Carr WH, Suscovich TJ, et al. (2007) Differential natural killer cell-mediated inhibition of HIV-1 replication based on distinct KIR/HLA subtypes. J Exp Med 204: 3027–3036. 18025129

18. Song R, Lisovsky I, Lebouché B, Routy J-P, Bruneau J, et al. (2014) HIV protective KIR3DL1/S1-HLA-B genotypes influence NK cell-mediated inhibition of HIV replication in autologous CD4 targets. PLoS Pathog 10: e1003867. doi: 10.1371/journal.ppat.1003867 24453969

19. Colantonio AD, Bimber BN, Neidermyer WJ, Reeves RK, Alter G, et al. (2011) KIR polymorphisms modulate peptide-dependent binding to an MHC class I ligand with a Bw6 motif. PLoS Pathog 7: e1001316. doi: 10.1371/journal.ppat.1001316 21423672

20. Knapp S, Warshow U, Hegazy D, Brackenbury L, Guha IN, et al. (2010) Consistent beneficial effects of killer cell immunoglobulin-like receptor 2DL3 and group 1 human leukocyte antigen-C following exposure to hepatitis C virus. Hepatology 51: 1168–1175. doi: 10.1002/hep.23477 20077564

21. Alter G, Altfeld M (2009) NK cells in HIV-1 infection: evidence for their role in the control of HIV-1 infection. J Intern Med 265: 29–42. doi: 10.1111/j.1365-2796.2008.02045.x 19093958

22. Kamya P, Boulet S, Tsoukas CM, Routy J-P, Thomas R, et al. (2011) Receptor-ligand requirements for increased NK cell polyfunctional potential in slow progressors infected with HIV-1 coexpressing KIR3DL1*h/*y and HLA-B*57. J Virol 85: 5949–5960. doi: 10.1128/JVI.02652-10 21471235

23. Barbour JD, Sriram U, Caillier SJ, Levy JA, Hecht FM, et al. (2007) Synergy or independence? Deciphering the interaction of HLA class I and NK cell KIR alleles in early HIV-1 disease progression. PLoS Pathog 3: e43. 17447840

24. Parsons MS, Wren L, Isitman G, Navis M, Stratov I, et al. (2012) HIV infection abrogates the functional advantage of natural killer cells educated through KIR3DL1/HLA-Bw4 interactions to mediate anti-HIV antibody-dependent cellular cytotoxicity. J Virol 86: 4488–4495. doi: 10.1128/JVI.06112-11 22345455

25. Goulder PJR, Watkins DI (2008) Impact of MHC class I diversity on immune control of immunodeficiency virus replication. Nat Rev Immunol 8: 619–630. doi: 10.1038/nri2357 18617886

26. Prince JL, Claiborne DT, Carlson JM, Schaefer M, Yu T, et al. (2012) Role of transmitted Gag CTL polymorphisms in defining replicative capacity and early HIV-1 pathogenesis. PLoS Pathog 8: e1003041. doi: 10.1371/journal.ppat.1003041 23209412

27. Goepfert P, Lumm W, Farmer P, Matthews P, Prendergast A, et al. (2008) Transmission of HIV-1 Gag immune escape mutations is associated with reduced viral load in linked recipients. J Exp Med 205: 1009–1017. doi: 10.1084/jem.20072457 18426987

28. Alter G, Heckerman D, Schneidewind A, Fadda L, Kadie CM, et al. (2011) HIV-1 adaptation to NK-cell-mediated immune pressure. Nature 476: 96–100. doi: 10.1038/nature10237 21814282

29. Kiepiela P, Leslie AJ, Honeyborne I, Ramduth D, Thobakgale C, et al. (2004) Dominant influence of HLA-B in mediating the potential co-evolution of HIV and HLA. Nature 432: 769–775. 15592417

30. Wright JK, Brumme ZL, Carlson JM, Heckerman D, Kadie CM, et al. (2010) Gag-protease-mediated replication capacity in HIV-1 subtype C chronic infection: associations with HLA type and clinical parameters. J Virol 84: 10820–10831. doi: 10.1128/JVI.01084-10 20702636

31. Carlson JM, Brumme ZL, Rousseau CM, Brumme CJ, Matthews P, et al. (2008) Phylogenetic dependency networks: inferring patterns of CTL escape and codon covariation in HIV-1 Gag. PLoS Comput Biol 4: e1000225. doi: 10.1371/journal.pcbi.1000225 19023406

32. Carlson JM, Brumme CJ, Martin E, Listgarten J, Brockman M, et al. (2012) Correlates of protective cellular immunity revealed by analysis of population-level immune escape pathways in HIV-1. J Virol 86: 13202–13216. doi: 10.1128/JVI.01998-12 23055555

33. Storey JD, Tibshirani R. Statistical significance for genomewide studies. Proc Natl Acad Sci 2003 U S A 100: 9440–9445. 12883005

34. Storey JD, Taylor JE, Siegmund D (2004) Strong control, conservative point estimation and simultaneous conservative consistency of false discovery rates: a unified approach. J R Stat Soc Ser B Stat Methodol 66: 187–205.

35. Thielens A, Vivier E, Romagné F (2012) NK cell MHC class I specific receptors (KIR): from biology to clinical intervention. Curr Opin Immunol 24: 239–245. 22264929

36. Gatfield J, Lammert E, Nickolaus P, Münz C, Rothenfusser S, et al. (1998) Cell lines transfected with the TAP inhibitor ICP47 allow testing peptide binding to a variety of HLA class I molecules. Int Immunol 10: 1665–1672. 9846695

37. Oosten LEM, Koppers-Lalic D, Blokland E, Mulder A, Ressing ME, et al. (2007) TAP-inhibiting proteins US6, ICP47 and UL49.5 differentially affect minor and major histocompatibility antigen-specific recognition by cytotoxic T lymphocytes. Int Immunol 19: 1115–1122. 17855435

38. Alter G, Malenfant JM, Altfeld M (2004) CD107a as a functional marker for the identification of natural killer cell activity. J Immunol Methods 294: 15–22. 15604012

39. Frazier WR, Steiner N, Hou L, Dakshanamurthy S, Hurley CK (2013) Allelic variation in KIR2DL3 generates a KIR2DL2-like receptor with increased binding to its HLA-C ligand. J Immunol 190: 6198–6208. doi: 10.4049/jimmunol.1300464 23686481

40. Kiepiela P, Ngumbela K, Thobakgale C, Ramduth D, Honeyborne I, et al. (2007) CD8+ T-cell responses to different HIV proteins have discordant associations with viral load. Nat Med 13: 46–53. 17173051

41. Fernandez CS, Stratov I, De Rose R, Walsh K, Dale CJ, et al. (2005) Rapid viral escape at an immunodominant simian-human immunodeficiency virus cytotoxic T-lymphocyte epitope exacts a dramatic fitness cost J Virol 79: 5721–5731. 15827187

42. Pala P, Serwanga J, Watera C, Ritchie AJ, Moodie Z, et al. (2013) Quantitative and qualitative differences in the T cell response to HIV in uninfected Ugandans exposed or unexposed to HIV-infected partners. J Virol 87: 9053–9063. doi: 10.1128/JVI.00721-13 23760253

43. McMichael AJ (2007) Triple bypass: complicated paths to HIV escape. J Exp Med 204: 2785–2788. 18025124

44. Goulder PJ, Brander C, Tang Y, Tremblay C, Colbert RA, et al. (2001) Evolution and transmission of stable CTL escape mutations in HIV infection. Nature 412: 334–338. 11460164

45. Goulder PJR, Phillips RE, Colbert RA, McAdam S, Ogg G, et al. (1997) Late escape from an immunodominant cytotoxic T-lymphocyte response associated with progression to AIDS. Nat Med 3: 212–217. 9018241

46. Friedrich TC, Dodds EJ, Yant LJ, Vojnov L, Rudersdorf R, et al. (2004) Reversion of CTL escape-variant immunodeficiency viruses in vivo. Nat Med 10: 275–281. 14966520

47. Honeyborne I, Codoñer FM, Leslie A, Tudor-Williams G, Luzzi G, et al. (2010) HLA-Cw*03-restricted CD8+ T-cell responses targeting the HIV-1 gag major homology region drive virus immune escape and fitness constraints compensated for by intracodon variation. J Virol 84: 11279–11288. doi: 10.1128/JVI.01144-10 20739527

48. Currier JR, Visawapoka U, Tovanabutra S, Mason CJ, Birx DL, et al. (2006) CTL epitope distribution patterns in the Gag and Nef proteins of HIV-1 from subtype A infected subjects in Kenya: use of multiple peptide sets increases the detectable breadth of the CTL response. BMC Immunol 7: 8. 16620386

49. Hoof I, Peters B, Sidney J, Pedersen LE, Sette A, et al. (2009) NetMHCpan, a method for MHC class I binding prediction beyond humans. Immunogenetics 61: 1–13. doi: 10.1007/s00251-008-0341-z 19002680

50. Verweij MC, Ressing ME, Knetsch W, Quinten E, Halenius A, et al. (2011) Inhibition of mouse TAP by immune evasion molecules encoded by non-murine herpesviruses. Mol Immunol 48: 835–845. doi: 10.1016/j.molimm.2010.12.008 21292324

51. Cohen GB, Gandhi RT, Davis DM, Mandelboim O, Chen BK, et al. (1999) The selective downregulation of class I major histocompatibility complex proteins by HIV-1 protects HIV-infected cells from NK cells. Immunity 10: 661–671. 10403641

52. Tenzer S, Crawford H, Pymm P, Gifford R, Sreenu VB, et al. (2014) HIV-1 adaptation to antigen processing results in population-level immune evasion and affects subtype diversification. Cell Rep 7: 448–463. doi: 10.1016/j.celrep.2014.03.031 24726370

53. Nakowitsch S, Quendler H, Fekete H, Kunert R, Katinger H, et al. (2005) HIV-1 mutants escaping neutralization by the in vitro experiments versus clinical studies. AIDS 19: 1957–1966.

54. Kuroishi A, Bozek K, Shioda T, Nakayama EE (2010) A single amino acid substitution of the human immunodeficiency virus type 1 capsid protein affects viral sensitivity to TRIM5 alpha. Retrovirology 7: 58. doi: 10.1186/1742-4690-7-58 20609213

55. Carrington M, Alter G (2012) Innate immune control of HIV. Cold Spring Harb Perspect Med 2: a007070. doi: 10.1101/cshperspect.a007070 22762020

56. Kulkarni S, Martin MP, Carrington M (2008) The yin and yang of HLA and KIR in human disease. Semin Immunol 20: 343–352. doi: 10.1016/j.smim.2008.06.003 18635379

57. Thananchai H, Makadzange T, Maenaka K, Kuroki K, Peng Y, et al. (2009) Reciprocal recognition of an HLA-Cw4-restricted HIV-1 gp120 epitope by CD8+ T cells and NK cells. AIDS 23: 189–193. doi: 10.1097/QAD.0b013e32831fb55a 19098488

58. Allen TM, Altfeld M, Yu XG, Kristin M, Sullivan O, et al. (2004) Selection, transmission, and reversion of an antigen-processing cytotoxic T-lymphocyte escape mutation in human immunodeficiency virus type 1 infection. J Virol 78: 7069–7078. 15194783

59. Han C, Kawana-Tachikawa A, Shimizu A, Zhu D, Nakamura H, et al. (2014) Switching and emergence of CTL epitopes in HIV-1 infection. Retrovirology 11:38. doi: 10.1186/1742-4690-11-38 24886641

60. Pacheco Y, Allavena C, Guilloux Y, Mueller-Schmucker SM, Hueckelhoven AG, et al. (2011) The immune response to the RT181-189 epitope in HIV-1-infected patients is associated with viral sequence polymorphism flanking the epitope. J Clin Immunol 31: 681–689. doi: 10.1007/s10875-011-9520-z 21491096

61. Kanaseki T, Lind KC, Escobar H, Nagarajan N, Reyes-Vargas E, et al. (2013) ERAAP and tapasin independently edit the amino and carboxyl termini of MHC class I peptides. J Immunol 191: 1547–1555. doi: 10.4049/jimmunol.1301043 23863903

62. Boresch S, Karplus M (1995) The meaning of component analysis: decomposition of the free energy in terms of specific interactions. J Mol Biol 254: 801–807. 7500351

63. Brady GP, Sharp KA (1995) Decomposition of interaction free energies in proteins and other complex systems. J Mol Biol 254: 77–85. 7473761

64. Bren M, Florián J, Mavri J, Bren U (2007) Do all pieces make a whole? Thiele cumulants and the free energy decomposition. Theor Chem Acc 117: 535–540.

65. Xia Z, Chen H, Kang S, Huynh T, Fang JW, et al. (2014) The complex and specific pMHC interactions with diverse HIV-1 TCR clonotypes reveal a structural basis for alterations in CTL function. Sci Rep 4: 4087. doi: 10.1038/srep04087 24522437

66. Benson DM, Hofmeister CC, Padmanabhan S, Suvannasankha A, Jagannath S, et al. (2012) A phase 1 trial of the anti-KIR antibody IPH2101 in patients with relapsed/refractory multiple myeloma. Blood 120: 4324–4333. doi: 10.1182/blood-2012-06-438028 23033266

67. Kohrt HE, Thielens A, Marabelle A, Sagiv-Barfi I, Sola C, et al. (2014) Anti-KIR antibody enhancement of anti-lymphoma activity of natural killer cells as monotherapy and in combination with anti-CD20 antibodies. Blood 123: 678–686. doi: 10.1182/blood-2013-08-519199 24326534

68. Vey N, Bourhis J, Boissel N, Bordessoule D, Prebet T, et al. (2012) A phase 1 trial of the anti-inhibitory KIR mAb IPH2101 for AML in complete remission. Blood 120: 4317–4323. doi: 10.1182/blood-2012-06-437558 23002117
