A Novel RNA-Recognition-Motif Protein Is Required for Premeiotic G/S-Phase Transition in Rice ( L.)


The molecular mechanism for meiotic entry remains largely elusive in flowering plants. Only Arabidopsis SWI1/DYAD and maize AM1, both of which are the coiled-coil protein, are known to be required for the initiation of plant meiosis. The mechanism underlying the synchrony of male meiosis, characteristic to flowering plants, has also been unclear in the plant kingdom. In other eukaryotes, RNA-recognition-motif (RRM) proteins are known to play essential roles in germ-cell development and meiosis progression. Rice MEL2 protein discovered in this study shows partial similarity with human proline-rich RRM protein, deleted in Azoospermia-Associated Protein1 (DAZAP1), though MEL2 also possesses ankyrin repeats and a RING finger motif. Expression analyses of several cell-cycle markers revealed that, in mel2 mutant anthers, most germ cells failed to enter premeiotic S-phase and meiosis, and a part escaped from the defect and underwent meiosis with a significant delay or continued mitotic cycles. Immunofluorescent detection revealed that T7 peptide-tagged MEL2 localized at cytoplasmic perinuclear region of germ cells during premeiotic interphase in transgenic rice plants. This study is the first report of the plant RRM protein, which is required for regulating the premeiotic G1/S-phase transition of male and female germ cells and also establishing synchrony of male meiosis. This study will contribute to elucidation of similarities and diversities in reproduction system between plants and other species.


Published in the journal: . PLoS Genet 7(1): e32767. doi:10.1371/journal.pgen.1001265
Category: Research Article
doi: 10.1371/journal.pgen.1001265

Summary

The molecular mechanism for meiotic entry remains largely elusive in flowering plants. Only Arabidopsis SWI1/DYAD and maize AM1, both of which are the coiled-coil protein, are known to be required for the initiation of plant meiosis. The mechanism underlying the synchrony of male meiosis, characteristic to flowering plants, has also been unclear in the plant kingdom. In other eukaryotes, RNA-recognition-motif (RRM) proteins are known to play essential roles in germ-cell development and meiosis progression. Rice MEL2 protein discovered in this study shows partial similarity with human proline-rich RRM protein, deleted in Azoospermia-Associated Protein1 (DAZAP1), though MEL2 also possesses ankyrin repeats and a RING finger motif. Expression analyses of several cell-cycle markers revealed that, in mel2 mutant anthers, most germ cells failed to enter premeiotic S-phase and meiosis, and a part escaped from the defect and underwent meiosis with a significant delay or continued mitotic cycles. Immunofluorescent detection revealed that T7 peptide-tagged MEL2 localized at cytoplasmic perinuclear region of germ cells during premeiotic interphase in transgenic rice plants. This study is the first report of the plant RRM protein, which is required for regulating the premeiotic G1/S-phase transition of male and female germ cells and also establishing synchrony of male meiosis. This study will contribute to elucidation of similarities and diversities in reproduction system between plants and other species.

Introduction

The transition from mitotic to meiotic cell cycle is a central issue of reproductive development in all sexually reproducing species. Meiosis is a fundamentally different type of cell cycle from mitosis, and a pivotal event for eukaryotes to halve the chromosome number and form haploid gametes. The basic meiotic processes are evolutionarily conserved among eukaryotic species. In contrast, the signalling cascade that leads to meiosis initiation shows great diversity among species [1].

The mechanism initiating meiotic entry remains largely elusive in plants. Based on experiments using explanted pollen mother cells (PMCs) of Trillium, the commitment of mitotic cells to meiotic division is thought to be established during the premeiotic DNA replication (premeiotic S) or G2 phase in plants [2], [3]. Only Arabidopsis SWITCH1 (SWI1)/DYAD and its maize homolog AMEIOTIC1 (AM1) are known to be required for the initiation of plant meiosis. Both are plant-specific coiled-coil proteins with unknown functions [4][6]. The maize am1 mutant displays the replacement of male and female meioses by somatic mitoses, and eventually the degeneration of ameiotic meiocytes [7][9], indicating that AM1 is implicated in the decision of germ cells being directed to meiosis or mitosis. Thus, the primary function of AM1 is supposed in the premeiotic S or G2. However, immunocytological analyses revealed that AM1 diffuses inside the nucleus during premeiosis, and its localization shifts to meiotic chromosomes and pericentromeric regions during early meiosis [6], suggesting that AM1 plays a second role in progression of early meiosis. SWI1/DYAD does not seem to act directly to initiate meiosis, because it also acts in the regulation of meiotic chromosome structure and cohesion [4]. Thus, molecular mechanisms specifically underlying meiotic entry have been poorly understood in the plant kingdom.

Flowering plants have evolved an intricate network of regulatory mechanisms to ensure proper timing of the transition to flowering [10]. In addition, to achieve simultaneous fertilization within a limited season, the timing of meiotic entry is also strictly regulated. Male meiosis usually occurs in a large population of synchronously dividing cells to ensure sufficient fertility of the organisms. In plants, it is also synchronous among PMCs within an anther and among anthers within a single flower. The synchrony of male meiosis is thought to be established during premeiotic interphase. This is because the thymidine base analog, bromodeoxyuridine (BrdU), becomes incorporated synchronously into PMCs at premeiotic S [11], [12], while their preceding mitoses seem to occur asynchronously. The Arabidopsis mutant, tardy asynchronous meiosis (tam), exhibits a phenotype of delayed and asynchronous cell divisions during male meiosis [13]. The TAM gene encodes an A-type cyclin that abundantly accumulates in nuclei of male meiocytes during prophase I [14], strongly suggesting that cyclins and cyclin-dependent kinases govern the synchronous progression of plant meiosis.

RNA-recognition-motif (RRM) proteins play crucial roles in the regulation of germ cell development, especially meiosis, in yeast and metazoan species. They participate in the processing, transport, localization, and translation of mRNAs [15]. In fission yeast, the RRM protein, Mei2, is necessary for the initiation of meiosis by turning off the DSR-Mmi1 system for selective elimination of over a dozen meiosis-specific transcripts during the mitotic cell cycle [16]. Deletions encompassing the human Y-linked Deleted in azoospermia (DAZ) gene cluster, encoding RRM proteins, result in a complete loss or severe reduction of germ cells in the testis. In all species examined, the expression of DAZ, DAZ-like (DAZL) and their homologs has been reported only in germline cells [17][19]. These RRM proteins target the adenylate-uridylate-rich element (AU-rich element; ARE) found within the 3′ untranslated region (3′UTR) of mRNAs, and control mRNA turnover rate and translation in cooperation with poly(A)-binding proteins [20], [21]. Boule, the Drosophila ortholog of vertebrate DAZL, binds to the 3′UTR of Twine mRNA, which encodes a meiotic-type Cdc25 kinase, and promotes the translation of Twine and the premeiotic G2/M transition [18]. Mouse DAZL also binds to the 3′UTR and promotes the translation of Sycp3 mRNA, which is a component of the synaptonemal complex (SC) [22]. In plants, redundant roles of five members of Arabidopsis mei2-like RNA binding proteins (AMLs) are suggested in meiotic chromosome organization [23]. The AMLs are composed of three RRMs, like fission yeast Mei2, whereas their function is presumably different from that of yeast Mei2 in meiotic entry. Therefore, in plant reproduction, no RRM protein functionally analogous to that of yeast and metazoans has been reported.

In this study, we identified a novel rice RRM protein, MEIOSIS ARRESTED AT LEPTOTENE2 (MEL2). In mel2 anthers at early meiosis, most germ cells failed to enter the premeiotic S and meiosis, and a part escaped from the defect in the premeiotic S and underwent meiosis with a significant delay or continued mitotic cycles aberrantly. Rice MEL2 had partial similarity with human DAZ-Associated Protein1 (DAZAP1) [24]. However, MEL2 carried ankyrin repeats and the RING finger motif in addition to the RRM. This motif combination was conserved among the monocot Poaceae species, but not in dicot plants or in other organisms, despite the control of premeiotic germ-cell cycle essential for the reproduction of all eukaryotes. We will discuss structural differences and functional similarities of rice MEL2 to RRM proteins involved in the mammalian DAZ system mainly by analysis of the mel2 mutant.

Results

mel2 mutation is caused by insertion of Tos17 retrotransposon

Figure 1A illustrates the initiation and differentiation of rice germline cells described by Nonomura et al. [25], [26]. Primordial germ cells, or archesporial cells, are initiated at the hypodermis of the stamen and the ovule primordium. In the stamen, archesporial cells generate sporogenous and parietal cells. Male sporogenous cells undergo several premeiotic mitoses, and many meiocytes are produced in each of the four locules within the anther. Parietal cells continue periclinal divisions and generate three-layered inner-anther walls, the most interior of which become tapetal cells to provide nutrients and pollen-wall materials to male meiocytes and microspores. In the ovule primordium, plural archesporial cells are initiated. Subsequently, only a single archespore which adheres to the nucellar epidermis differentiates into a single sporogenous cell, and matures into a single female meiocyte. During premeiotic maturation, both male and female meiocytes enlarge far more in cytoplasmic and nuclear volumes than somatic cells.

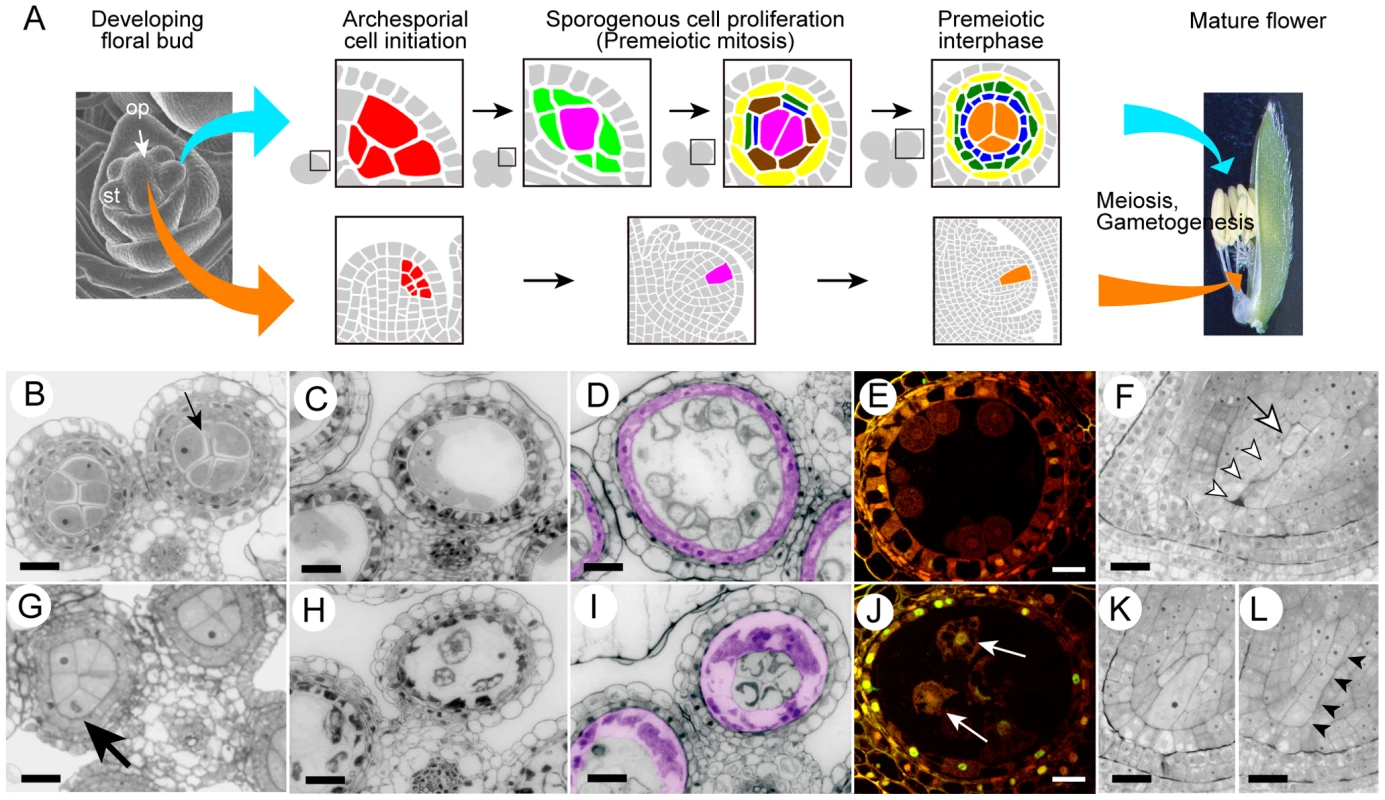

Developmental aberration of germline and nursery cells in the <i>mel2</i> mutant.
Fig. 1. Developmental aberration of germline and nursery cells in the mel2 mutant.
(A) A schematic illustration of the germline cell development in the anther and ovule in rice. Red-colored cells indicate the archesporial cells; magenta, sporogenous cells; light green, primary parietal cells; yellow, endothecium; brown, secondary parietal cells; dark green, middle layer cells; blue, tapetal cells; mandarin, meiocytes at premeiotic interphase. (B–L) Plastic sections of wild-type (B–F) and mel2 (G–L) reproductive organs during sporogenesis. (B, G) Premeiotic interphase. The callose accumulation among PMCs (a small arrow) was absent in the mutant. A large arrow indicates asynchronous, aberrant mitosis of the PMC. (C, H) Meiotic I prophase (diakinesis). (D, I) Post-meiotic microspore stage. Tapetal cells were pseudo-colored in magenta. (E, J) TUNEL assay. White arrows indicate TUNEL signals representing apoptotic DNA fragmentation found in nuclei of disrupted PMCs. (F, K, L) Ovules at post-meiosis. Three of tetrad spores (open arrowheads) were degenerated, and a single megaspore (an open arrow) underwent megagametogenesis after the completion of wild-type meiosis, whereas meiosis progression was stagnant at various steps in the mutant (K, L). Closed arrowheads indicate an equal size of tetrad spores. Bars, 10 µm.

To elucidate the genetic network that supports early germ-cell development, we selected a seed-sterile mutant line, ND00287, in rice. The sterile segregants of this line developed normally throughout their life cycle except for seed production (Figure S1). The sterile phenotype segregated as a single recessive mutation (fertile:sterile = 141∶47, chi-square (3∶1) = 0.00). Microscopic observation revealed that whereas the wild type had equally sized PMCs, sterile mutants produced divergent sizes of PMCs (Figure S2), probably a result of insufficient maturation and enlargement of premeiotic cells. Gametogenesis was disrupted in both male and female organs of the mutant (Figure S1). This phenotype resembled that of the mel1 mutant that we previously identified [26], and thus this gene was designated MEL2.

In anthers, the appearance of PMCs at the premeiotic interphase was unlikely to have been affected by the mel2 mutation, except callose accumulation around the cells was lacking in the mutant (Figure 1B, 1G). Callose is one of the cell wall component, and plays a vital role in the process of pollen development [27]. Interestingly, in mel2-1 mutant anthers, 0.69% of premeiotic germ cells (n = 291) underwent the mitotic metaphase, whereas no PMCs did in the wild type (n = 311) (Figure 1B, 1G). While the wild-type PMCs entered and underwent normal meiosis, the mutant PMCs were drastically hypervacuolated (Figure 1C, 1H). In the wild type, haploid microspores were released from tetrads after the completion of meiosis (Figure 1D). In contrast, highly vacuolated mutant PMCs failed to produce tetrads and microspores (Figure 1I). In addition to a failure in meiosis, tapetal cells also became aberrantly vacuolated and hypertrophic (Figure 1I). Highly vacuolated PMCs underwent apoptotic DNA fragmentation, revealed by the TdT-mediated dUTP-biotin nick end labeling (TUNEL) method (Figure 1E, 1J). Aberrantly hypertrophic tapetal cells also caused apoptosis at a step earlier than the programmed cell death (PCD) in normal process of tapetal development (Figure 1E, 1J). A serious defect in meiosis progression was also observed in the megaspore mother cell (MMC), the female meiocyte. When three of the tetrad spores had been degraded in the wild-type ovule (Figure 1F), the mutant MMC was still before meiotic cell division (Figure 1K) or the tetrad before degradation of three spores (Figure 1L). Surprisingly, in contrast to PMCs, no conspicuous vacuolation was observed in the MMC.

Though the ultrastructure of PMCs was also observed, no remarkable difference was observed between the wild type and mel2 mutant at the premeiotic interphase (data not shown). Howerver, at the meiotic prophase I, mel2 PMCs were hypervacuolated, but not in the wild-type PMCs, and in addition, mitochondria were enlarged in mel2 PMCs extremely more than those in wild types (). The formation of megamitochondria is known to precede apoptosis in the cells treated with various free radical-generating chemicals [28]. Thus, the ultrastructural analysis also suggested that the mel2 PMCs were directed to apoptosis.

Southern blot analysis of the ND00287 population revealed that the Tos17 insertion showed complete genetic linkage with the seed-sterile phenotype (Figure S4). This insertion tagged the gene locus, Os12g0572800, in Rice Annotation Project Database build4 (RAP-DB, http://rapdb.dna.affrc.go.jp/). When the 10-kbp wild-type genomic fragment including this locus was introduced into mel2 homozygous plants, the transformants recovered fertility (Figure S4). Furthermore, NE04525 carrying another allelic Tos17 insertion in this locus (mel2-2) exhibited the same mel2 phenotype (data not shown). Thus, we concluded that the Tos17 insertion into Os12g0572800 caused the mel2 mutation.

MEL2 gene encodes novel protein with RNA-recognition motif

Full-length MEL2 cDNA was obtained from young panicles, including germ cells at developmental stages earlier than meiosis, by 5′-rapid amplification of cDNA ends (RACE) technology. To determine the transcriptional start site of MEL2 mRNA, three rounds of 5′RACE were performed. Four independent RACE libraries were produced by a gene-specific antisense primer nearest to the 5′ end (Figure S4B), and 16 of 17 RACE sequences terminated at the same 5′-endpoint. The putative start site predicted in this study mapped to 254 bp upstream from the location annotated in the RAP-DB. The MEL2 gene was composed of 14 exons and 13 introns (Figure S4). The MEL2 cDNA encoded a novel protein of 1,160 amino-acid residues (aa) of previously unknown function (DDBJ, AB522964). An online motif search revealed three conserved domains in the deduced MEL2 sequence: ankyrin repeats (ANKs, PF00023), an RNA recognition motif (RRM, PF00076), and a C3HC4-type RING finger motif (RING, PF00097) (Figure 2, Figure S5). An N-myristoylation consensus sequence, which allows protein binding to the plasma membrane or other intracellular membranes in eukaryotic cells [29], was found at the N-terminal end.

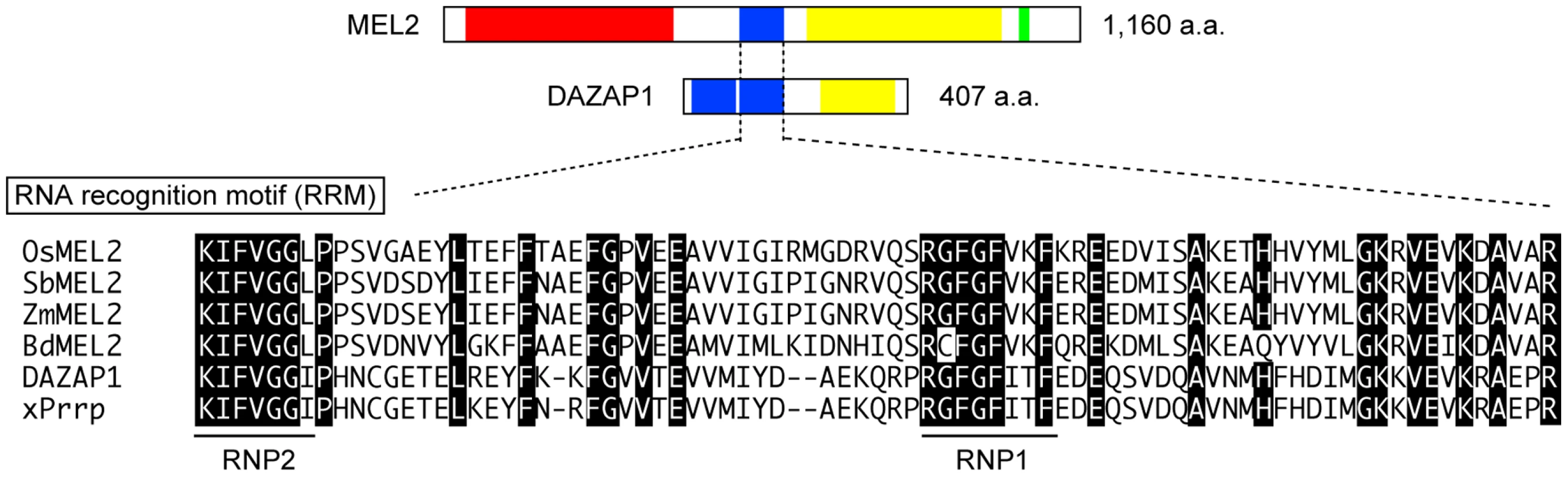

Rice MEL2 is the RRM protein partially homologous to human DAZAP1.
Fig. 2. Rice MEL2 is the RRM protein partially homologous to human DAZAP1.
The single RRM of MEL2 is followed by a proline-rich sequence (yellow) like human DAZAP1, whereas DAZAP1 carries a doublet of RRMs. MEL2 possesses three additional motifs; The N-myristoylation target, the ankyrin repeats (red), and the RING finger motif (green). The peptide sequence of each motif is aligned and compared with known consensus sequence and/or sequences of other organisms, in which identical amino-acid residues are highlighted. Os, rice (Oryza sativa); Sb, Sorghum bicolor; Zm, Zea mays; Bd, Brachypodium distachyon; DAZAP1, huma DAZAP1 (UniProt/Swiss-Prot: Q96EP5); xPrrp, Xenopus Proline-rice RNA binding Protein (Vg1) (Q98SJ2).

ANKs are implicated in protein-protein interactions [30]. Rice MEL2 contained 10 imperfect and tandemly aligned copies of ANKs (Figure S5). The RRM consisted of 80–90 aa with two highly conserved short motifs, an RNP1 octamer and an RNP2 hexamer, which are found in numerous proteins involved in post-transcriptional processes [31][33]. MEL2 contained a single RRM that conserved both RNP1 and RNP2 sequences (Figure 2). The MEL2 peptide sequence excluding the ANKs (451 aa to the end) showed similarity to human DAZAP1 in a BLASTp search (Score = 62.4 bits; E-value = 1e−07) [34]. DAZAP1 contains two RRMs at the N-terminus and a proline-rich domain at the C-terminus [24]. The C-terminal half of rice MEL2 was also rich in proline residues (615 to 1,042 aa, Figure 2).

The rice MEL2 sequence was evolutionarily conserved among Poaceae species; Sorghum bicolor, Brachypodium distachyon, and Zea mays (Figure 2, Figure S6). The Sorghum locus Sb08g018890 and the Brachypodium locus Bd04g03890 encoded putative proteins of 1,083 and 1,076 aa, 77.1% (813/1,055 aa) and 75.5% (791/1,048 aa) identical to rice MEL2, respectively. The Zea locus AC208308.3_FGP002 showed high conservation of the RRM and RING, but not the ANK, probably because the sequence information was incomplete in maize genome. The RRM followed by the proline-rich sequence was also conserved in these three species. No proteins carrying a combination of the three domains, ANK, RRM and RING, were found within the genome of the dicot model plant Arabidopsis thaliana, nor did we detect any proteins with the three-domain combination in genome information from 787 species included in the Archaea, Bacteria, Eukaryota and Viruses by in silico searches of the GTOP web database [35], [36]. Thus, we concluded that the motif combination found in rice MEL2 is unique to Poaceae or monocot plants.

The rice genome contained another predicted gene locus, Os12g0587100, similar to MEL2 (Figure S7). Os12g0587100 was located about 0.9-Mbp from the MEL2 locus toward the telomere side on the long arm of chromosome 12. Putative coding sequences of this locus were highly homologous to those of the MEL2 gene, while the homology was lost in the exon 12 and the following exons.

MEL2 mRNA is expressed in germline and tapetal cells before meiosis

The spatiotemporal expression of MEL2 mRNA was examined by reverse-transcription PCR (RT-PCR) and in situ hybridization techniques. Based on the results of RT-PCR, the MEL2 mRNA was expressed mainly in young panicles and flowers (Figure S8). In situ hybridization revealed that the MEL2 expression was initiated in male and female archesporial cells at the hypodermis of stamen and ovule primordia (Figure 3A–3C). In the ovule, the MEL2 mRNA was expressed in multiple archesporial cells during early stages (Figure 3B, 3C), and subsequently in a single sporogenous cell (Figure 3D, 3E). In the stamen, strong MEL2 signals were detected in sporogenous cells (Figure 3D, 3F), and in addition, faint signals were also observed in parietal cells, which generate tapetal cells (Figure 3F). The MEL2 signal disappeared before meiosis in both male and female organs (Figure 3G). Thus, we concluded that the MEL2 gene was expressed in male and female germline cells from their initiation to meiosis, and weakly in male nursery cells including tapetal cells. The mel2-1 mutant flowers transcribed only aberrant types of MEL2 mRNA, which contained a 4.0-kbp Tos17 insertion within the seventh exon (Figure S9). This insertion was predicted to cause an in-frame stop codon at the 5′-end of the insert, and to result in a truncated form of MEL2 protein without the RRM and RING, if any was translated. Thus we concluded that the mel2-1 was a null allele.

<i>MEL2</i> mRNA was expressed in male and female germline and parietal cells before meiosis.
Fig. 3. MEL2 mRNA was expressed in male and female germline and parietal cells before meiosis.
(A) The initiation stage of archesporial cells. A faint MEL2 signal (blue) appeared at hypodermis of stamen (st) and ovule primordium (op). (B) Early premeiotic mitosis stage. (C) A magnified image of (B). In op, plural hypodermal cells expressed MEL2. (D) The late premeiotic mitosis stage. (E, F) Magnified images of (D). The faint MEL2 signal was observed in female sporogenous cell (fsp) (E). Microsporocytes (msp) strongly expressed MEL2, and parietal layer cells (pl) adhered to msp were also stained (F). (G) No MEL2 signal was detected in and after meiosis. (H) A sense probe as a negative control gave no signal in the same stage with (D). Bars, 100 µm.

The MEL2-like Os12g0587100 locus was also transcribed, and its transcripts were detected in young panicles and flowers (Figure S8). Sequencing the RT-PCR product revealed that the MEL2-like cDNA included many nucleotide polymorphisms against MEL2 cDNA, which could induce a shift in reading frame that would result in lack of RRM and RING motifs (data not shown). Therefore, the MEL2-like locus was considered to be a pseudo-gene.

MEL2 function is excluded from premeiotic mitosis

If MEL2 had functioned during premeiotic mitosis prior to premeiotic interphase, the number of PMCs would be decreased in mel2-1 mutant anthers. However, it was not different significantly between PMC numbers in the wild type (103.7±15.3 per anther locule; average of three anthers) and the mutant (97.0±6.6). In addition, no remarkable aberration in the morphology of reproductive tissues and germ cells was observed in the mel2 anthers during the premeiotic-mitosis stage (Figure 1G). These observations indicate that MEL2 function was excluded from the premeiotic-mitosis stage of male germ cells.

MEL2 is required for germ cells to enter the premeiotic S-phase

To investigate whether the mel2 germ cells could pass through the premeiotic interphase normally, we examined the expression profile of several cell cycle-related genes in mel2 mutant anthers. The rice histone H4 mRNA is abundantly expressed during S-phase, and CDKB2;1 (cdc2Os3) is enriched during G2/M transition, but is less abundant or absent during S-phase in rice mitosis [37]. During premeiotic mitosis, CDKB2;1 was expressed in patches in both wild-type and mel2-1 anthers (Figure 4A, 4F), indicating that premeiotic germline mitoses occur asynchronously in the wild type and are unaffected by the mel2 mutation. At the boundary of premeiotic interphase and meiosis, no expression of CDKB2;1 mRNA was detected in the wild type (Figure 4B), indicating that the cells entered synchronously into premeiotic S, whereas CDKB2;1 was still expressed in patches in the mel2 anther (Figure 4G). At the same stage, H4 mRNA was expressed in all PMCs of wild-type anthers (Figure 4C). In contrast, in mel2 anthers, only a few PMCs exhibited H4 signal (Figure 4H). The asynchronous expression of CDKB2;1 and H4 was observed in anthers of three independent mel2 plants at the stages that the wild type underwent early meiosis. The MEL1 gene, which encodes an Argonaute family protein, is expressed exclusively in germline cells before meiosis [26]. In the wild type, MEL1 mRNA was strongly detected in sporogenous cells undergoing premeiotic mitosis (Figure 4D), and was rapidly downregulated during premeiotic interphase (Figure 4E). Premeiotic mel2 sporogenous cells also expressed MEL1, same as wild-type cells (Figure 4I). However, the expression continued aberrantly in early meiotic stages (Figure 4J).

Synchronous initiation of premeiotic S was disrupted among <i>mel2</i> germ cells.
Fig. 4. Synchronous initiation of premeiotic S was disrupted among mel2 germ cells.
The longitudinal sections of wild-type (A–E), and mel2 anthers (F–J). (A, F) During sporogenous cells undergoing premeiotic mitosis, CDKB2;1 mRNA, the marker of G2/M transition, was expressed in patches in both wild-type and mel2 anthers (arrowheads). (B, G) During premeiotic interphase, CDKB2;1 expression was synchronously suppressed in wild-type anthers (B), whereas it was still in patches in mel2 anthers (G). (C, H) During premeiotic S or the onset of meiosis I, histone H4 mRNA, the marker of S-phase, was expressed simultaneously (C), while only a few germ cells expressed the H4 (H). (D, I) During sporogenous cells undergoing premeiotic mitosis, MEL1 mRNA, the marker of archesporial and sporogenous cells, was strongly expressed in sporogenous cells. (E, J) In early meiosis I, MEL1 expression was drastically downregulated in wild-type anthers (E), whereas kept at a higher level in mel2 anthers (J). Bars, 20 µm.

Next, we performed the BrdU incorporation experiment for the premeiotic athers. In the wild type, ten of 31 flowers at the premeiotic interphase had anthers in which PMCs incorporated BrdU into their nuclei synchronously, whereas the most mel2 flowers had anthers that showed asynchronous incorporation of BrdU into the PMC nuclei (Figure 5A). In most of mel2 anthers, only 20% of PMCs incorporated BrdU simultaneously (Figure 5B, 5C).

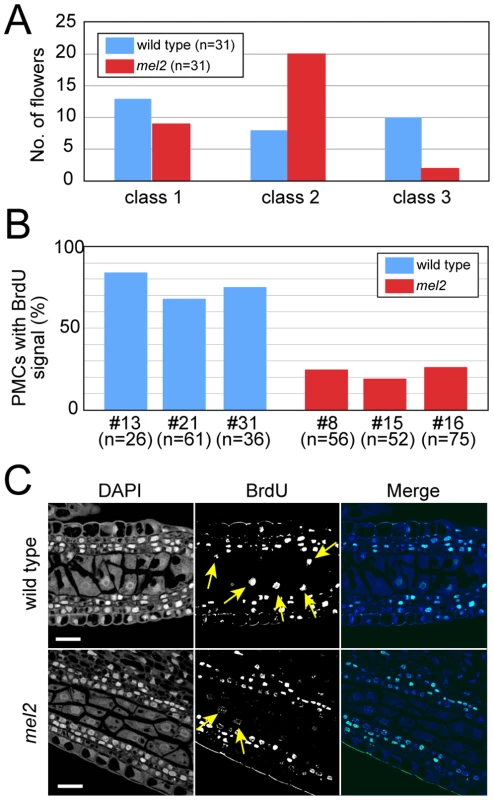

The <i>mel2</i> mutation abolished synchronous incorporation of bromodeoxyuridine (BrdU) in an anther at premeiotic interphase.
Fig. 5. The mel2 mutation abolished synchronous incorporation of bromodeoxyuridine (BrdU) in an anther at premeiotic interphase.
(A) The number of flowers with pollen mother cells (PMCs) emanating the BrdU signal was counted. Flowers at premeiotic interphase (with about 0.4-mm anthers) were provided for the BrdU incorporation experiment. Flowers emanating the BrdU signal in 0%, less than 50%, and more than 50% of PMCs were classified into classes 1, 2 and 3, respectively. (B) A percentage of BrdU-incorporated PMCs in an anther was measured in three plants (#: the plant number) each of the wild type and mel2 mutant. (C) Longitudinal sections of BrdU-incorporated anthers at premeiotic interphase. The wild-type anthers frequently contained a lot of PMCs emanating the intense BrdU signal in an anther locule (top), while the mel2 anthers contained a few (bottom). Yellow arrows indicate the nuclei emanating the BrdU signal. Bars, 20 µm.

These results clearly indicate that MEL2 plays essential roles in the decision for germ cells to enter the premeiotic S-phase.

mel2 germ cells failed to undergo normal meiosis

Next, we examined whether the mel2 mutant PMCs were able to enter meiosis. Telomere clustering or a bouquet structure, a typical feature of zygotene meiocytes in maize [38], was observed in four of 10 wild-type meiocytes, whereas no bouquet was observed in any of 31 mel2-1 meiocytes (Figure S10). In wild-type soma and premeiotic meiocytes, centromeres and telomeres were arranged in peripheral and interior regions of the nucleus, respectively, and their positions were inverted during meiotic entry. However, mel2 PMCs at early zygotene lacked this inversion, retaining a soma-like centromere arrangement (Figure S10). Further, we performed immunofluorescent detection of rice meiotic proteins PAIR2 and ZEP1. PAIR2 transiently associates with meiotic chromosome axes and is required for SC establishment [39]. ZEP1 is a component of the transverse filament of SC [40]. Both genes were transcribed normally even in mel2 flowers (Figure S8). In wild-type meiocytes at early zygotene, PAIR2 associates along meiotic chromosome axes, and filamentous ZEP1 signals begin to elongate between homologous axes (n = 101) (Figure 6A). In contrast, in all mel2 meiocytes (n = 118) at early zygotene, neither PAIR2 nor ZEP1 was detected on chromosomes (Figure 6B). These observations indicate that mel2 meiocytes fail to enter meiosis when the wild type undergoes early zygotene.

The absence of homologous chromosome synapsis in <i>mel2</i> mutant anthers.
Fig. 6. The absence of homologous chromosome synapsis in mel2 mutant anthers.
Chromosomes were counter-stained with DAPI (blue). (A, B) Meiocyte nuclei at early zygotene in the wild type (A) and mel2 mutant (B). (C, D, E) Meiocyte nuclei at late zygotene in the wild type (C) and mel2 mutant (D, E). In 79.7% of mel2 meiocytes, PAIR2 and ZEP1 were aberrantly accumulated, and the arrangement of OsCenH3 foci was soma-like (D). The remaining 20.3% of the meiocyte nuclei exhibited filamentous PAIR2 signals, comparable to those in wild-type early zygotene, and the centromere arrangement became meiotic (E). Bars, 10 µm.

At late zygotene in wild-type meiocytes, ZEP1 stretches extended overall meiotic chromosomes and most PAIR2 proteins had been removed from the axes, indicating the completion of homologous synapsis (Figure 6C). In mel2 meiocytes, 79.7% of meiocytes (n = 64) exhibited faint or abnormally dotted signals of PAIR2 in nuclei (Figure 6D). All these meiocytes showed a soma-like centromere arrangement. However, the remaining 20.3% showed an early zygotene-like, filamentous appearance of PAIR2 and a meiotic centromere arrangement (Figure 6E), whereas ZEP1 proteins, which failed to be loaded on homologous axes, accumulated aberrantly in the cytoplasm. It was impossible to observe whether the mutant PMCs emanating filamentous PAIR2 signals underwent subsequent meiotic steps, because of significant cell disruption due to hypervacuolation (Figure 1I) and apoptosis (Figure 1J).

These results strongly suggest that in mel2 mutant, most of male germ cells which show the defect in the premeiotic G1/S transition result in the lack of meiosis, even though meiotic genes have been normally expressed. The 20% cells could escape from the defect in the transition and enter early meiotic stages, but extremely later than usual, and yet they failed to establish the SC between homologous chromosome pairs until the apoptosis.

MEL2 protein localizes to perinucleus of premeiotic meiocytes

The seed-sterile phenotype of mel2 homozygous plants was rescued by introducing transgenes expressing the MEL2 protein with a T7-peptide tag at the C-terminus (C-tagged) (Figure S11), indicating that this recombinant protein is functional in vivo. Unfortunately, we failed to obtain any clear signals of the T7-tagged protein in western blotting (data not shown), probably because of the low level and spatiotemporal limitations of its expression. However, indirect immunofluorescence enabled to visualize the subcellular protein localization. In wild-type PMCs undergoing premeiotic mitosis, a faint signal was observed in the cytoplasm (Figure 7A). In premeiotic interphase, signals were found in the cytoplasm, especially concentrated at the perinuclear region (Figure 7B). By early meiosis I, MEL2 had been released to the cytoplasm of PMCs, and in turn, a faint signal appeared at the perinuclear cytoplasmic region of the inner anther-wall cells, including tapetal cells (Figure 7C). MEL2 signals finally disappeared at post-meiotic stages of PMCs and anther-wall cells (data not shown). This localization was observed in seven of eight anthers from two independent plants (C6#2, C9#2 in Figure S11). The C-tagged MEL2 signal was excluded from the nucleoplasm in any of these stages. In transgenic plants expressing N-tagged MEL2 protein, the immunofluorescent signal diffused over all the cytoplasm in premeiotic PMCs (Figure 7D). N-myristoylation is a post-transcriptional protein modification, in which myristic acid is covalently attached to an N-terminal glycine residue, exposed during cotranslational N-terminal methionine removal by N-myristoyltransferase [41]. Thus, the immunofluorescence of N-tagged MEL2 may represent the first methionine residue with the T7 tag that had been removed and diffused throughout the cytoplasm.

Subcellular localization of the T7 peptide-tagged MEL2 in anthers of transgenic rice plants.
Fig. 7. Subcellular localization of the T7 peptide-tagged MEL2 in anthers of transgenic rice plants.
Plastic cross-sections of transgenic anthers were counter-stained with DAPI (blue). Pollen mother cells (PMCs) were outlined with the broken lines. (A–C) Transgenic anthers expressing the C-tagged MEL2 (magenta). (A) Premeiotic mitosis stage. (B) Premeiotic interphase. A yellow arrow indicates the anti-T7 signals observed in the cytoplasm of tapetal cells. (C) Early meiosis I. (D) A transgenic anther expressing the N-tagged MEL2 (magenta) in premeiotic interphase. (E) An anther in premeiotic interphase transformed with the empty vector as a negative control. Bars, 10 µm. (F) The summary of MEL2 subcellular localization observed in (A–C). Smaller circles within larger ones indicate nuclei of germ cells. The pink and red indicate the subcellular localization of MEL2 at the cytoplasm and the perinuclear region, respectively. Broken and solid arrows indicate the cell division cycle and the cell maturation without the division.

Discussion

MEL2 plays an essential role in premeiotic cell-cycle control

This study provides the first evidence that the novel RRM-containing protein plays essential roles in meiotic entry in rice. In the mel2 mutant, the progression of male and female meioses was significantly affected, and the male meiocyte and tapetal cells were hypervacuolated and directed to apoptosis (Figure 1, Figure S3). The mel2 mutation disturbed the most germ cells to transit into the premeiotic S-phase in anthers (Figure 4 and Figure 5). However, twenty percents of the cells could enter the S-phase (Figure 5B) and undergo meiotic processes in which chromosomes showed a typical appearance of early zygotene (Figure 6), while the wild-type cells underwent late zygotene. In these cells, neither precocious separation of sister chromatids nor sister centromeres was observed. This result indicates that the MEL2 function might be excluded from the regulation of meiotic chromosome structure and cohesion, different from the function of Arabidopsis SWI1/DYAD. Thus, the role of rice MEL2 could be specified in the premeiotic cell-cycle control.

The MEL2 function in premeiotic interphase will be tangible in comparison with that of maize AM1, the coiled-coil protein also controlling meiotic entry. AM1 is implicated in the decision of germ cells being directed to meiosis or mitosis [6]. Interestingly, in the am1 mutant, ameiotic mitoses replacing meioses occur synchronously [7], indicating that the synchrony of male meiosis is genetically separable from the meiosis commitment, and also that the AM1 function can be allocated into the meiosis commitment following the establishment of synchrony. In contrast, in the rice mel2 mutant, most of male germ cells could not enter the premeiotic S and lost the synchrony (Figure 4 and Figure 5). Thus, it is strongly suggested that the MEL2 function precedes the establishment of synchrony, the meiosis commitment and the function of maize AM1. The ameiotic mitoses also occurred in the mel2 anther, but only in a small amount of male germ cells (Figure 1G), probably representing that some of the PMCs would return to the mitotic cell cycle before the meiosis commitment. Taken together, we conclude that MEL2 plays an essential role in the premeiotic G1/S-phase transition in rice.

Pawlowski et al. [6] proposed the existence of a novel checkpoint system monitoring faithful transition of leptotene to zygotene based on the degeneration phenotype of am1 mutant PMCs. Our results may support this proposal in rice. The mel2 mutant PMCs initiated hypervacuolation and apoptosis simultaneously when wild-type PMCs underwent early meiosis (Figure 1). This degeneration of meiocytes would be an indirect effect of the mel2 mutation, because it was never observed in the mel2 MMCs (Figure 1K, 1L). In yeast and metazoans, a system referred to as pachytene checkpoint monitors for defects in homologous recombination and synapsis, and meiocytes arrested in pachytene will eventually be eliminated [42]. In contrast, plants are thought to lack the typical meiotic checkpoint [43]. This consideration has been based on most plant meiotic mutants being able to complete meiosis, while fragmentation or nondisjunction of chromosomes takes place. However, most plant materials examined so far are thought to have been mutated in meiotic machinery, but not in premeiotic events. In turn, the function of maize AM1 and rice MEL2 is supposed in premeiotic events, in contrast to the meiotic mutants previously reported in plants.

In this study, we mainly focus on male meiosis, because in rice, it is easier to be observed than female meiosis. However, the mel2 mutation also affected the progression of female meiosis (Figure 1K, 1L). The fundamental role of MEL2 might be in the initiation of premeiotic G1/S transition in the appropriate timing in both male and female cells.

Similarities and differences of rice MEL2 to mammalian DAZ-related proteins

The central region of MEL2 protein resembles human DAZAP1, whereas MEL2 possesses a single RRM, in contrast to the doublet in DAZAP1 (Figure 2). DAZAP1 is a member of the proline-rich RNA-binding proteins (PRRPs) [24], and also of the heterogeneous nuclear ribonuclear proteins (hnRNPs), known to bind to newly synthesized RNA transcripts and participate in their processing and export [44]. A role of human DAZAP1 in transcription is suggested by its specific exclusion from the transcriptionally inert XY body in the nuclei of pachytene spermatocytes, and a requirement for active transcription for its nuclear localization [45], [46]. Mouse DAZAP1 is also detected in the nucleus of pachytene spermatocyte, and its localization dramatically shifts from the nucleus to the cytoplasm during the maturation of spermatids [45], [47]. In male dazap1 mutant mice, spermatogenesis is arrested before the first meiotic division, and the cells are directed to apoptosis, whereas the female has largely normal oogenesis [48].

Human DAZAP1 is an interacting counterpart of DAZ and DAZL proteins [24]. DAZ, DAZL and BOULE are able to form an RNA-protein complex with another RNA-binding protein, PUM2, while they may function in distinct molecular complexes during germ cell development [49], [50]. In addition, yeast two-hybrid screening of testis proteins revealed that human DAZ interacts with DZIP3 (DAZ-interacting protein3)/hRUL138 [49], which has the potential for RNA binding and RING E3-ubiquitin ligase. DZIP3/hRUL138 is expressed ubiquitously in various tissues, and is localized to certain cytoplasmic structures, especially perinuclear regions, but excluded from the nucleoplasm [51]. Thus, in the mammalian system, RNA-binding proteins, such as DAZ, DAZL, DAZAP1 and PUM2, first associate with the target mRNA precursors in the nucleus of germline cells. They export the mature targets to the cytoplasm, form a complex with ubiquitously expressed cytoplasmic proteins, such as DZIP3/hRUL138, on the cytoplasmic nuclear membrane or endoplasmic reticulum, and regulate the translation of target mRNAs.

Rice MEL2 localized the perinuclear region, but it was excluded from the nucleoplasm of germ cells, distinct from mammalian DAZ families (Figure 7). We hypothesize that MEL2 may be a hybrid form of a DAZAP1-like protein and a DAZ-interacting E3 ligase, such as DZIP3/hRUL138, and may have evolved to acquire a germline-specific function in ancestral monocots. This idea raises the possibility that RING E3 ligase-dependent ubiquitination is required for germline development commonly in eukaryotic species. It is also suggested that unknown DAZ-family proteins that transport the target mRNAs from the nucleoplasm to the cytoplasm exist in plant germline cells.

The Arabidopsis locus At5g57740 or XBAT32 encodes a MEL2-like protein composed of ANK and RING motifs at the N- and C-termini, respectively, but not of RRM, and it promotes lateral root formation by inhibiting ethylene biosynthesis [52], [53]. XBAT32 is expressed ubiquitously in various Arabidopsis tissues, but most abundantly in anthers. We hypothesized that domain-shuffling events occurred between an RRM protein and a XBAT32-like protein required for meiotic entry in ancestral monocots after the monocot-dicot divergence around 200 million years ago [54].

Synchrony of male meioses closely relates to premeiotic G1/S-phase transition in plants

In the mel2 mutant, synchronous progression of premeiotic S-phase was completely disrupted (Figure 4 and Figure 5). This mel2 phenotype indicated that the genetic system controlling the premeiotic G1/S-phase transition would closely relate to the system terminating the premeiotic mitosis and establishing the synchronous progression of premeiotic- and meiotic-cell cycles in the rice anther. Figure 7F summarizes a transition of subcellular localization of MEL2 protein. It is plausible by analogy with the mammalian DAZ system that the perinuclear localization of MEL2 functions in the translational inhibition of some cell-cycle related gene(s), cooperating with the perinuclear translational machineries. MEL2 may temporarily arrest the progression of asynchronous germ-cell cycles at premeiotic G1 end or the onset of S-phase at the perinuclear region, and the synchronous release of MEL2 to the cytoplasm allows the cells to enter premeiotic S-phase synchronously within an anther. The identification of binding substrates of MEL2 will contribute to evidence this hypothesis.

According to this idea, unknown signalling factor(s) should be hypothesized to mediate cell-cell communication and promote the synchronous release of MEL2 from the perinucleus. During premeiotic interphase and early meiosis, it is known that male meiocytes form a single coenocyte in an anther locule, in which the cytomictic channels connect each other of the cells [55]. This channel network may help the signalling for synchrony of male meiosis.

Is MEL2 required also for development of tapetal cells?

In addition to failure of meiotic entry, the mel2 mutation caused the hypervacuolation and hypertrophy of tapetal cells (Figure 1I). This is different from the case of the maize am1 mutant, in which no tapetal-cell degeneration has been reported [7], [9]. Tapetal cells provide nutrients and pollen-wall materials to microspores, and degenerate, probably by PCD [56]. It is demonstrated that several gibberellin (GA)-related rice mutants display a hypertrophy of tapetal cells and result in male sterility [57]. This hypertrophic phenotype is attributed to the absence of PCD in the tapetum, because externally supplied GA can restore the tapetal phenotype of the oscps1 mutation, which causes defects in GA biosynthesis. The hypertrophic tapetum in the GA-related mutations seems to resemble that in the mel2 mutation. However, as opposed to GA mutants, apoptosis identified by the strong TUNEL signal arose in the mel2 tapetum (Figure 1J). In addition, GA-related mutants can undergo meiosis and produce tetrad spores [57], distinct from the mel2 mutant. These observations may suggest that mel2-dependent hypertrophy of the tapetum is independent of the GA-signalling pathway.

Both MEL2 mRNA and protein were expressed weakly in tapetal cells (Figure 2 and Figure 6). Thus, tapetal degeneration in mel2 anthers would be a primary effect of the absence of MEL2 protein, while it is difficult to neglect the possibility that degeneration of PMCs directly causes tapetal-cell hypertrophy. MEL2 expression in tapetal cells appeared during early meiosis I (Figure 7). Tapetal cells are known to become multinucleate or polyploidized by mitoses without cytokinesis, in many cases during meiotic I prophase [58]. In rice, tapetal cells become binucleated, and in Arabidopsis, binucleation occurs synchronously at early leptotene. Thus, MEL2 function may be required not only for meiotic entry, but also for synchronous tapetal-cell binucleation, the disruption of which may induce hypertrophy and precocious tapetal-cell death. However, the synchronous expression of H4 among tapetal cells was frequently observed even in mel2 anthers (Figure 4H). It remains unclear whether this result excludes MEL2 function from the synchronization of tapetal-cell division.

In conclusion, we have proved that the RRM protein plays an essential role in plant germ-cell development in addition to yeast and metazoans, although the protein's structure, function, timing of expression, and subcellular localization differ between rice and non-plant species. This study also suggests that genome shuffling and the generation of a novel motif combination in ancestral monocots may have brought rice MEL2 a unique function in germline cell-cycle control. Further analysis of MEL2 function will contribute to better understanding of post-transcriptional or post-translational regulation of plant germ-cell development, and also to elucidating similarities and differences in reproduction systems between plants and other species.

Materials and Methods

Plant materials and genetic analysis

Seed-sterile mutant lines were selected as described [25]. For cytological and expression analyses, the F2 plants four-times backcrossed with cv. Nipponbare (BC4F2) were used. Non-transgenic plants were grown in a field in the city of Mishima, Shizuoka, Japan. Transgenic plants were grown in the growth chamber, LPH-2HCT (NK system), at 30°C for 14 hrs with the light and at 25°C for 10 hrs in dark.

The linkage relationship between the sterile phenotype and transposed Tos17 fragments was analyzed by DNA gel blot hybridization and polymerase chain reaction (PCR) using the R3 population of 188 plants segregating the mel2 seed-sterility. DNA extraction, DNA gel blotting, cloning and isolation of the Tos17-tagged genome sequence were performed as described [25]. PCR genotyping for the mel2 mutant populations was performed using the mixture of three primers: 868, 869 and T17LTR4MF for mel2-1 allele, or 870, 871 and T17LTR4MF for mel2-2 allele (Table S1). 50- to 100-ng genomic DNAs and above three primers in 5-µL water were added to the same volume of GoTaq Green Master Mix (Promega).

Discrimination of developmental stages

The longitudinal length of flower buds and anthers was measured under the dissection microscopy SMZ645 (Nikon). The anther length is generally used as a criterion to determine developmental stages of germline cells in rice [59]. This criterion was also used in this study, because the anther length was increased proportional to longitudinal flower (or lemma) length, whose elongation was unaffected by mel2 mutation, until the end of meiosis (Figure S12). A precise stage in each flower or anther was determined by the mRNA expression or immunofluorescence of stage-specific gene or protein markers.

Molecular cloning of MEL2 cDNA

The full-length MEL2 cDNA was obtained from 3.0-cm young rice panicles, frequently including flowers in premeiosis. RNA extraction and RACE reaction were according to the methods as described [26]. In addition to the oligo(dT)20 primer, two MEL2 gene-specific, antisense primers, 871 and T2028R were used for three rounds of RTs, followed by the RACE-PCR with adaptor primers (AP1 and AP2) supplied by the manufacturer (Table S1). All products were cloned into pCR-BluntII-TOPO vector (Invitrogen), and sequenced by Dye Terminator Cycle Sequencing kit and ABI PRISM 3130xl Sequencer (Applied Biosystems). Three independent RACE fragments were combined into a single, full-length cDNA sequence by PCRs.

Complementation of sterile phenotype

The entire coding region of the MEL2 gene and its 2.0-kbp upstream cis-sequence from the putative transcriptional start site were included within the 10-kbp of single SalI genomic fragment (Figure S4). The 10-kbp fragment was isolated from the rice BAC clone OSJNBa0036A19, and subcloned into the pPZP2H-lac binary vector [60]. This plasmid or the empty vector as a negative control was introduced into mel2-1 homozygous calli in accordance with the method as described [61]. The genotype of calli was determined by PCR, in which the template DNA was extracted from young shoots germinating on the callus-induction medium.

Analysis of MEL2-like gene

A sequence of the full length MEL2 cDNA was supplied for the BLAST search on RAP-DB (http://rapdb.dna.affrc.go.jp/), and we found Os12g0587100 locus (MEL2like) homologous to MEL2 gene within rice genome. Genomic sequences of MEL2 coding region and MEL2-like locus were compared by HarrPlot program [62]. Specific primer sets for MEL2-like, TMEL2L1402F/TMEL2L1974R and 919/TMEL2L1974R were designed as referencing HarrPlot information and used for RT-PCR against the RNA extract from young flowers. Then we succeeded to amplify the MEL2-like transcript, in which the putative intron sequences were spliced out when compared with the genomic sequence.

Histology

Histological analysis of rice reproductive organs was done by using the plastic- embedded sections, the preparation method of which was described [25]. Sections were stained with toluidine blue (Chroma Gesellshaft Shaud) or provided for the TUNEL assay and other immunofluorescent analyses.

TUNEL was performed as described previously [56]. Plastic-embedded sections of rice panicles and flowers were treated with TUNEL apoptosis detection kit (DeadEnd Fluorometric TUNEL system, Promega) according to the manufacturer's instruction. The fluorescent TUNEL signal was detected by FV300 CLSM system and Photoshop.

Electron microscopic observation was done in accordance with the method described previously [39].

In situ hybridization

In situ hybridization against rice tissues was performed in accordance with the method as described [25]. To avoid a cross hybridization among highly homologous gene families, we adopted the high-stringency condition with 0.3 M NaCl and 50% formamide at 50°C for hybridization and 0.5xSSC at 50°C for wash. For the synthesis of RNA probes, two short ∼500-bp DNA fragments were amplified by PCRs of the MEL2 cDNA with the primer sets, 919/1034 and 1035/1036, respectively (Table S1). Both fragments were cloned into the pCRII-TOPO vector (dual promoter system) (Invitrogen), and transcribed to make antisense or sense RNA probes by SP6 or T7 promoters with DIG RNA labeling kit (Roche). Three PCR fragments against OsCDKB2;1 cDNA were amplified by primer sets of M486F/M718R, M415F/M537R, and M609F/M739R, respectively, and cloned into pCRII-TOPO. The full-length 583-bp cDNA of rice histone H4 (RAP-DB: Os09g0553100) was cloned into pBluescript SK- (Stratagene). Both plasmids were provided for the synthesis of RNA probes as in MEL2.

BrdU incorporation and detection

Fresh young panicles of 3–5 cm in length were curt from stems and placed in 100 µm BrdU solution in the dark for 4 hours. Plastic sectioning and detection of incorporated BrdU were done in accordance with the method described previously [39]. Before the immunization, ten minutes treatment of sections with Proteinase K (0.1 mg/mL, Sigma) often improved the accessibility of antibodies and the intensity of anti-T7-signals.

RT-PCR

To investigate the MEL2 expression profile, total RNAs were extracted from various tissues of wild-type rice plants; embryo and endosperm from mature seeds, seedlings, shoot apices, leaf blades, leaf sheathes, roots, flag leaves, 1 cm young panicles, young flowers in 1–2 mm, 2–4 mm and 2–7 mm lengths, and mature flowers. All tissues were cut off and handled with forceps, and immediately transferred into microtubes filled with liquid nitrogen and stored at −80°C. RNeasy Plant Mini kit (QIAGEN) was used for RNA extraction. Total RNAs were reverse-transcribed with the oligo(dT)20 primer and SuperscriptIII reverse-transcriptase (Invitrogen), and provided for semi-quantitative RT-PCR. For MEL2 mRNA, the primers, 918/919, were used. To investigate the structure of MEL2 transcript in the mel2 mutant, the primer sets, 918/919 and 868/869, were used. An expression of rice meiotic genes was examined in the mel2 mutant flowers by using the following primer sets; 496/647 for PAIR1, 555/ 518 for PAIR2, and K180/K183 for ZEP1. The primer set ActinF/ActinR was used to amplify rice Actin cDNAs as a positive control.

Indirect immunofluorescence

Indirect immunofluorescent staining of rice meiocytes was performed in accordance with the method as described [39] with minor modifications. Rat anti-ZEP1 and rabbit anti-POT1 antibodies (Komeda, Kurata, and Nonomura, unpublished) were diluted in 1/1000 and 1/3000, respectively, and detected with AlexaFluor647 goat anti-rat IgG (Molecular Probes) and Cy3 goat anti-rabbit IgG (Amersham). Maximum four channels of fluorescent signals were simultaneously observed by Fluoview FV300 CLSM system, upgraded with LD405/440 laser unit (Olympus). Captured images were enhanced and pseudo-colored by Photoshop CS2 software (Adobe).

In vivo localization of recombinant T7 peptide-tagged MEL2

Plasmid constructions to produce T7 (MASMTGGQQMG)-tagged MEL2-expressing plants were based on the 10-kbp genomic SalI-fragment same in the complementation test. The 10-kbp SalI fragment (Figure S1) was subcloned into pT7Blue vector (Novagen). To add the T7 tag to the N-terminus of MEL2, the 476-bp fragment including the translational start site was amplified with the primers MEL2gApaI2F/MEL2gNotI2R, directly cloned into pCR-BluntII-TOPO vector (Invitrogen), and provided for site-directed insertion of T7-tag sequence by the inverted tail-to-tail direction PCR with primers MEL2T7NF/MEL2T7NR and for ligation as described [63]. This plasmid was again provided for PCR with MEL2gApaI2F/MEL2gNotI2R (476bp+T7). The ApaI-NotI fragment of MEL2g/pT7Blue plasmid was replaced to the 476bp+T7 fragment by In-Fusion Advantage PCR Cloning Kit (Clontech). Finally, the insert carrying the T7 tag was cut out with SalI and inserted into SalI site of the binary vector pPZP2H-lac [59]. To add the T7 tag to the C-terminus, the middle 4-kbp and the 3′-terminal 400-bp fragments of MEL2 genome were amplified with primer sets, MEL2gSmaIF/MEL2InFu1R, and MEL2InFu1F/MEL2ctransEndR, respectively. The latter 400-bp fragment was cloned into pCR-BluntII-TOPO vector, and provided for site-directed insertion of T7-tag sequence just in front of MEL2 stop codon (400bp+T7). The plasmid used for above complementation test was digested with SmaI to remove the latter half 5.5-kbp genomic fragment. The rest sequence, including pPZP2H-lac and the first half of MEL2 gene, was fused with the middle 4-kbp and the 400bp+T7 fragments by In-Fusion Cloning Kit. Two resultant binary plasmids, the N-tagged MEL2 plasmid (MEL2gT7N/pPZP2H-lac) and the C-tagged one (MEL2gT7C/pPZP2H-lac), were introduced into mel2/mel2 calli, and transgenic plants were regenerated according to the method as described [60].

Immunocytology was done by using plastic sections of transgenic anthers in accordance with indirect immunofluorescense above mentioned, with goat anti-T7 antibody (Bethyl Laboratory) as a primary antibody and AlexaFluor488 donkey anti-goat IgG (Molecular Probes) for detection.

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8

Attachment 9

Attachment 10

Attachment 11

Attachment 12

Attachment 13
